VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
62 02.9687.0010 0
Step 6. From front panel, remove four 4-40 x 3/8" PFB screws and remove DMX PCB assembly.

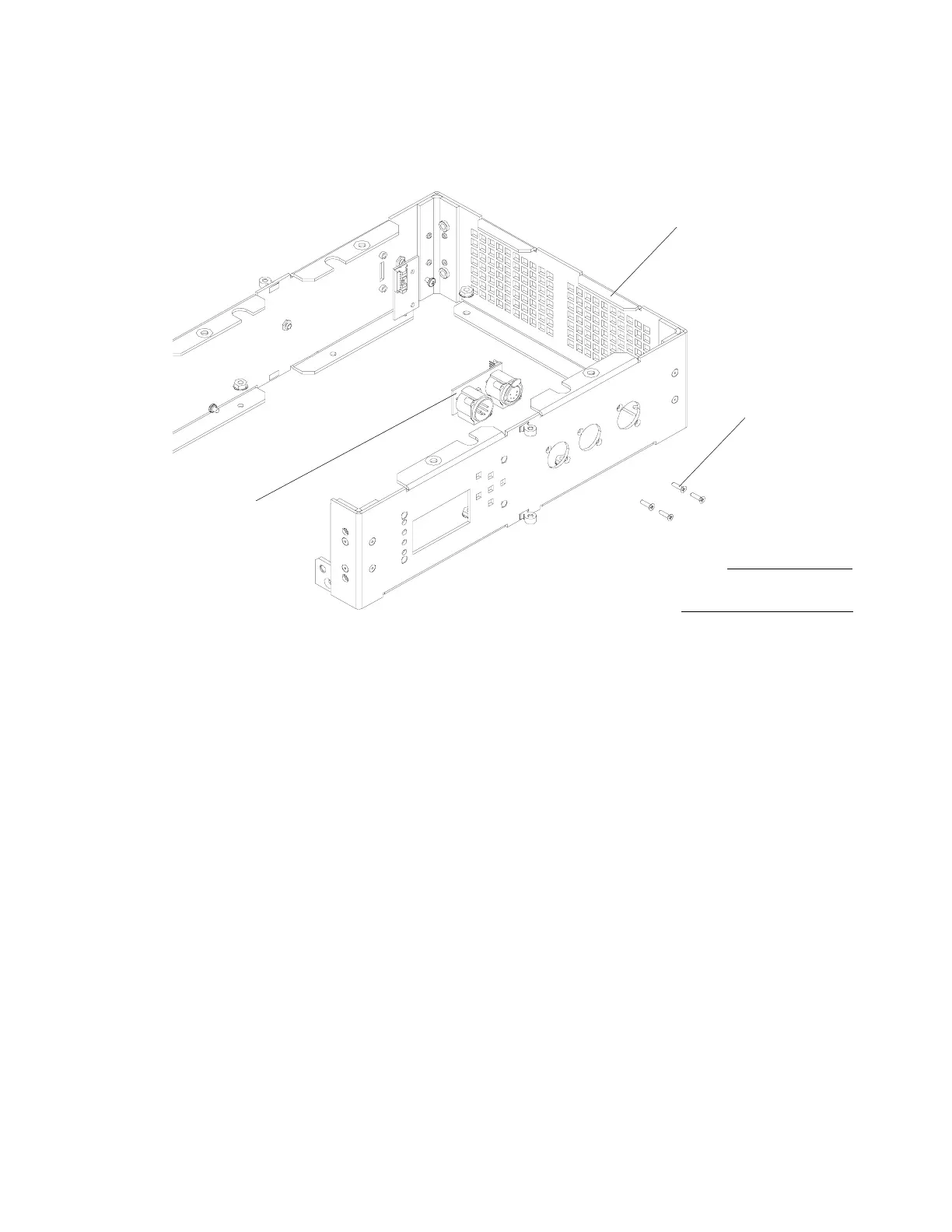

Figure 2-45: DMX PCB Assembly Removal
Step 7. Reassemble by performing steps in reverse order.
NOTE:
Components removed and
exploded for clarity.
Enclosure Assembly
4-40 x 3/8"
DMX PCB
PFB Screw (x4)
Assembly
