VARI❋LITE - VL440 / VL770 / VL880 SPOT LUMINAIRES SERVICE MANUAL
72 02.9687.0010 0
Step 6. At Wire Tray, remove four 8-32 x 1/4" PPZ SEMS screws and remove tray.

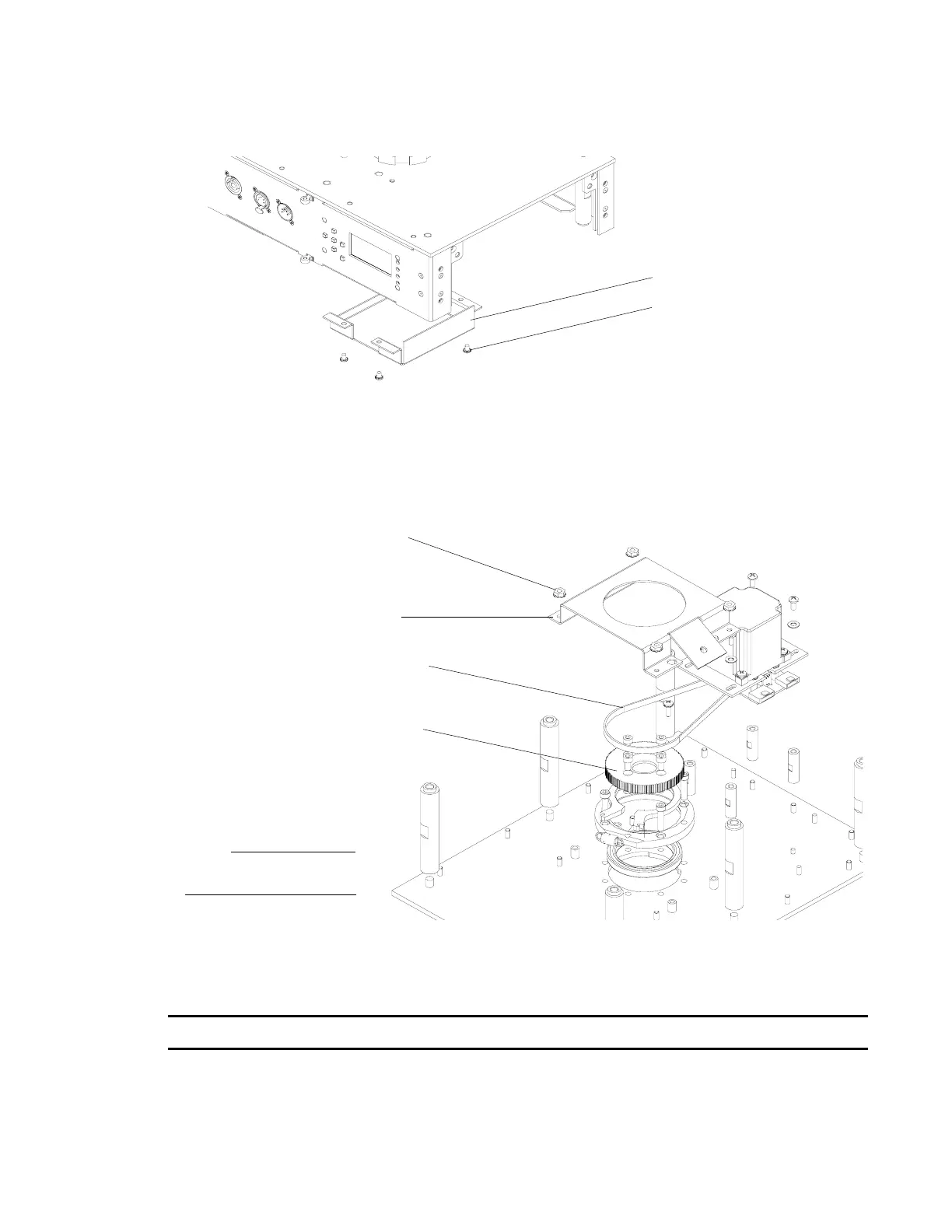

Figure 2-56: Wire tray Removal
Step 7. Disconnect all wiring from inside enclosure
Step 8. At pan pulley cover, remove four 8-32 KEPS nuts and remove cover.
Figure 2-57: Pan Pulley Cover Removal
Step 9. Slide pan belt over and off pan pulley.
Step 10. Reassemble by performing steps in reverse order.
Note: Ensure proper belt tension when replacing.
8-32 x 1/4" PPZ
SEMS Screw (x4)
Wire Tray
8-32 KEPS Nuts (x4)
Pan Pulley Cover
NOTE:
Components removed and
exploded for clarity.
Pan Belt
Pan Pulley
To Next Page
