Pixsys MCM260X User Manual

48 - MCM260X - Manuale d’uso
11.1.3 CANopen identifier distribution
The COB-ID can be determined in 3 ways:
• Pre-defined Connection Set: it is the way shown in the previous section. Allocation is by default
and other configurations are not necessary.
• PDO identifiers (COB-ID): they can be modified after powering on the instrument, when it is in the
Pre-Operational status (see next section). In this status, new values can be written in the Object
Dictionary only with the SDO.
• Using DBT (Distributor, a service CAL): the nodes are initially identified by their node-ID.
The Node-ID of the slave node can be configured by internal dip-switches or by LMT (Layer
Management, a CAL service). When the network initializes and boots, the master communicates
with each connected slave with a ‘telegram’ (an NMT service). Once this connection has been
established, DBT provides allocation of CAN identifiers for communication of SDOs and PDOs to
the nodes.
11.1.4 CANopen boot-up procedure
Network initialization supports two boot-up processes: Minimum boot-up and Extended boot-up. The
first is a pre-requisite for a CANopen device, the second is optional but is necessary if the COB-ID must

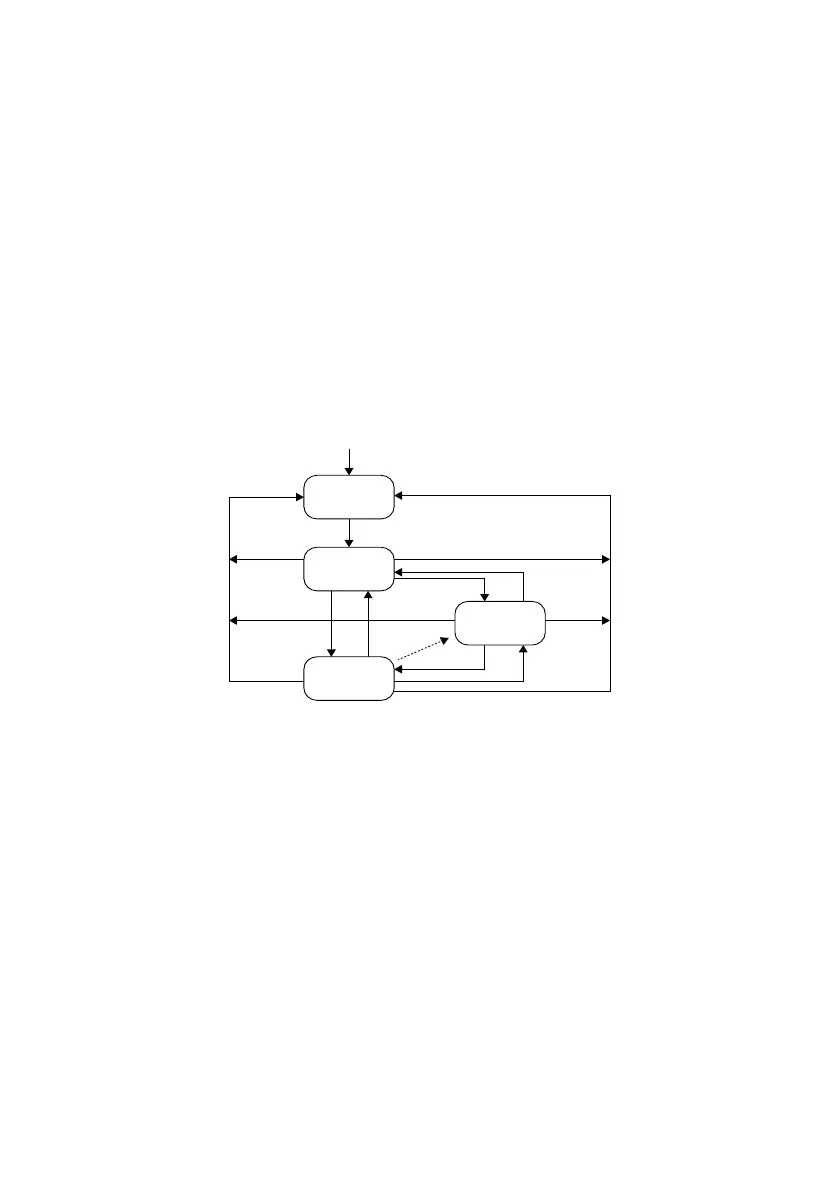

be allocated by the DBT services. The transition diagram below shows a minimum boot-up procedure
for a CANopen node.
Initialization
Power-On
Reset Node
Reset
Communication
Initialization finished
Enter Pre-Operational
Enter Operational
Start
Remote
Node
Stop Remote Node
Start Remote Node
Error
Pre-Operational
Operational
Stopped
Stop Remote Node
The NMT services allow the status to be changed in each condition. NMT messages are formatted by
a CAN-header (COB-ID = 0) and 2 data byte. A byte contains the requested service (NMT command
specifier) and the other contains the Node-ID (0 for broadcast mode). A CANopen network can only
have an NMT master, which brings NMT messages and controls the initialization processes.
The CANopen devices supporting only the minimum boot-up enter the Pre-Operational
status automatically, immediately after ending the initialization. In this status, COB-ID allocation and
parameter setting are possible from SDOs only.
The MCM260X module moves automatically to the Pre-Operational status after ending the boot-up.
11.1.5 Communication profile: initialization
In most cases, a default configuration is assigned to the Object dictionary, if there are no other user
configurations saved. The default configuration does not provide for any pre-set PDO. To use the PDO,
both Tx and Rx, in the module initialization phase it is necessary for the CANopen master to execute
the correct mapping.
