User’s Manual of FGSD-1022 Series
Figure 4-6-4: Aggregation Information of Switch 1
5. Click on the tab of Aggregator Information to check the trunked group information as the illustration shown
above after the two switches configured.

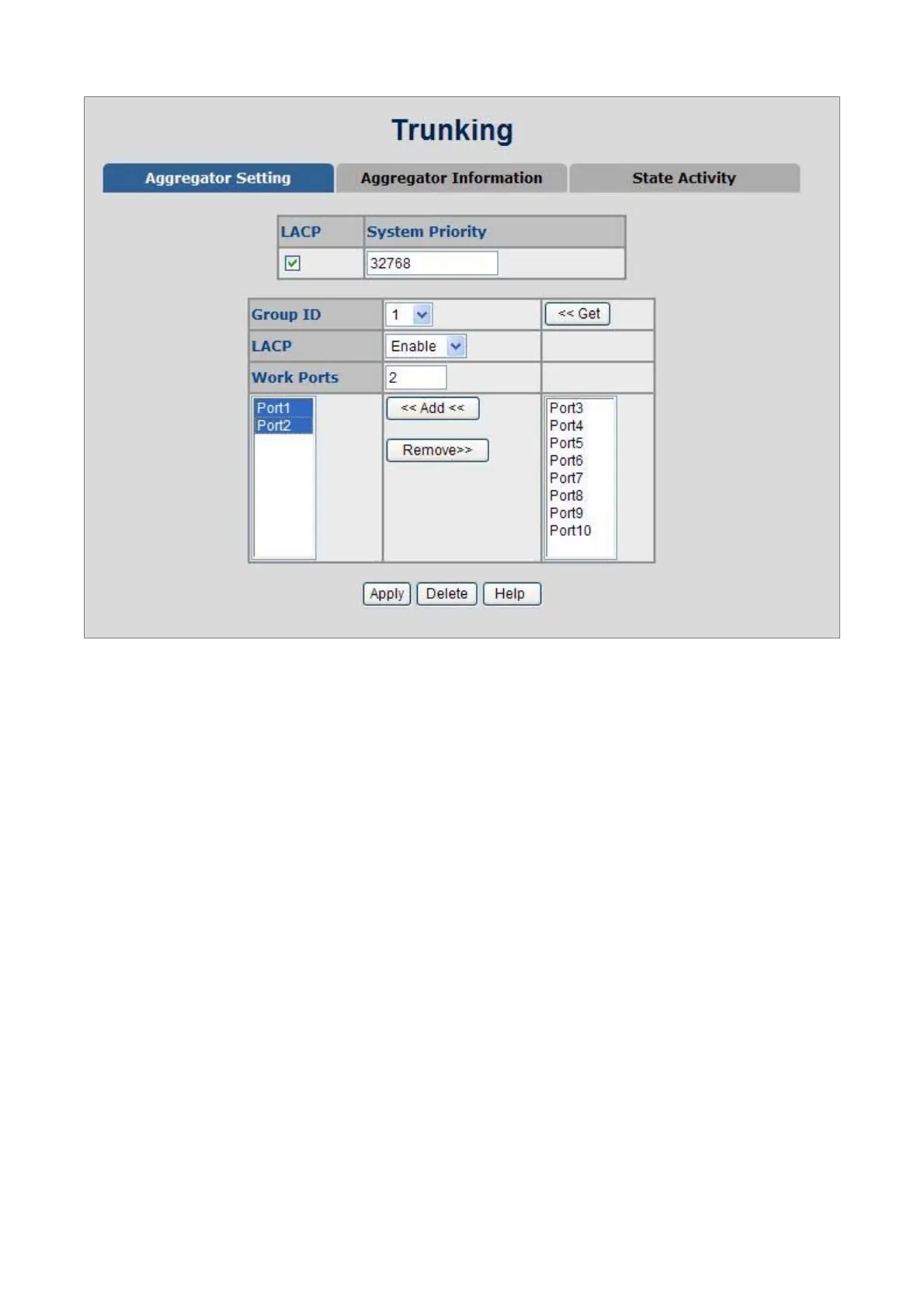

Switch 2 configuration
6. Set System Priority of the trunk group. For example: 1.
7. Select a trunk group ID by pull down the drop-down menu bar.
8. Enable LACP.
9. Include the member ports by clicking the Add button after selecting the port number and the column field of
Work Ports changes automatically.
103
