User’s Manual of FGSD-1022 Series

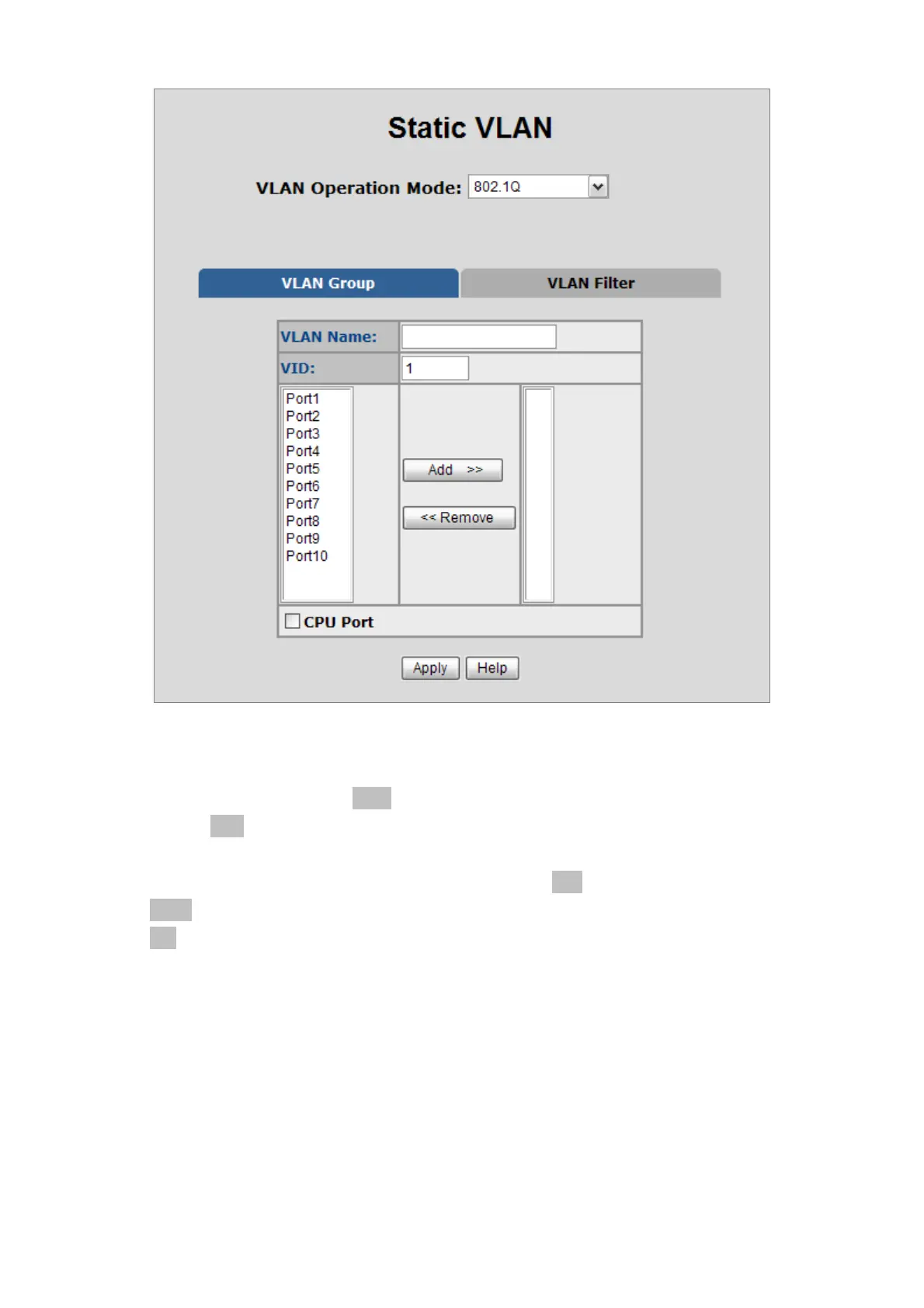

Figure 4-4-5: VLAN Group Configuration interface
5. Select specific port as member port and the screen in Figure 4-4-6 appears.
6. After setup completed, please press “Apply” button to take effect.
7. Please press “Back” for return to VLAN configuration screen to add other VLAN group, the screen in Figure 4-33
appears.
8. If there are many groups that over the limit of one page, you can click Next to view other VLAN groups.
9. Use Delete button to delete unwanted VLAN.
10. Use Edit button to modify existing VLAN group.
78
