User’s Manual of FGSD-1022 Series

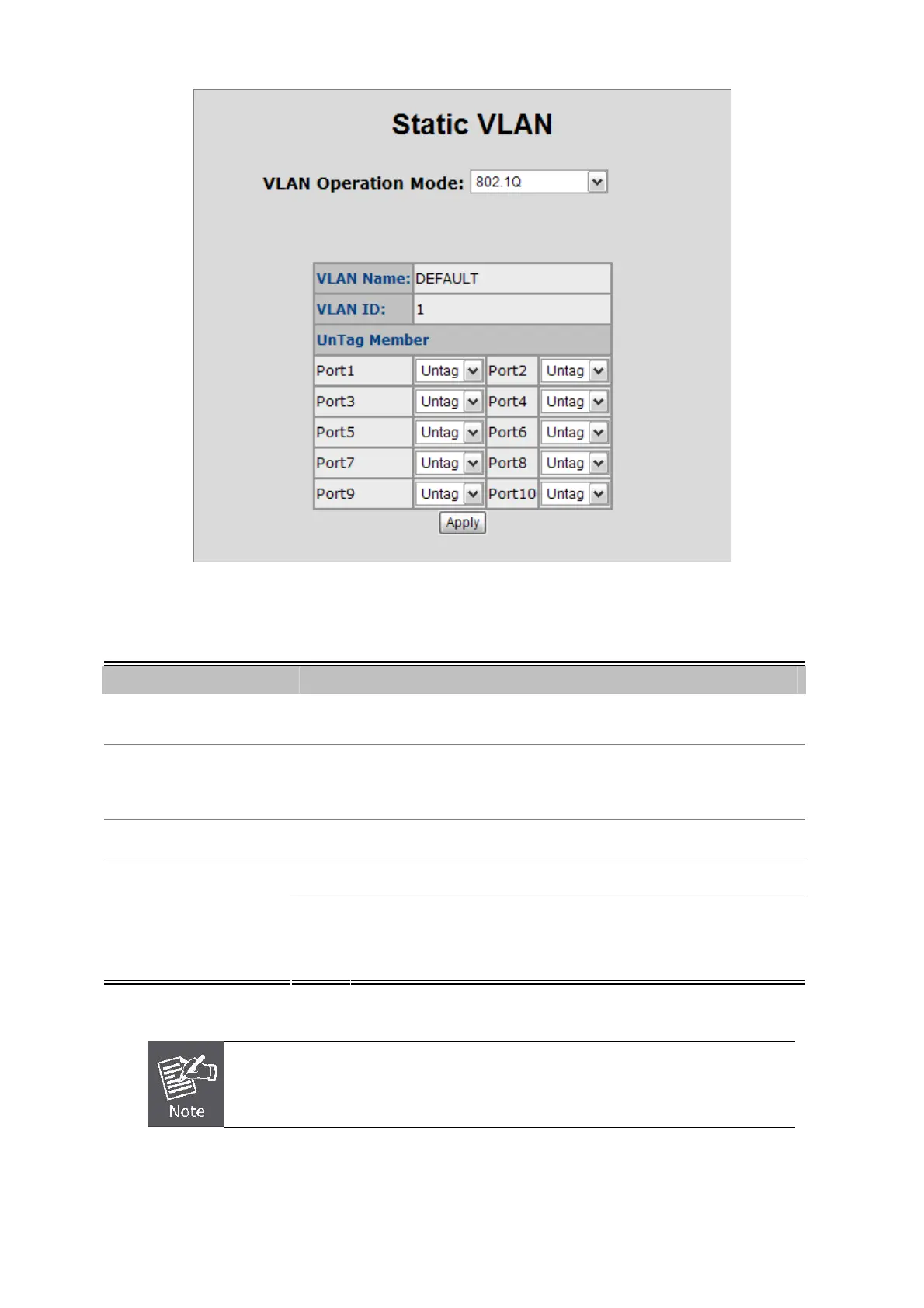

Figure 4-4-6: 802.1Q VLAN Setting Web Page screen
The page includes the following fields:
Object Description
VLAN Name
Use this optional field to specify a name for the VLAN. It can be up to 16
alphanumeric characters long, including blanks.
VLAN ID
You can configure the ID number of the VLAN by this item. This field is used to
add VLANs one at a time.
The VLAN group ID and available range is 2-4094.
Port
Indicate port 1 to port 10.
Untag
Packets forwarded by the interface are untagged.
UnTag Member
Tag
Defines the interface as a tagged member of a VLAN. All packets
forwarded by the interface are tagged. The packets contain VLAN
information.
Enable 802.1Q VLAN, the all ports on the switch belong to default VLAN, VID is 1. The
default VLAN can’t be deleting.
