User’s Manual of IGSW-24040T

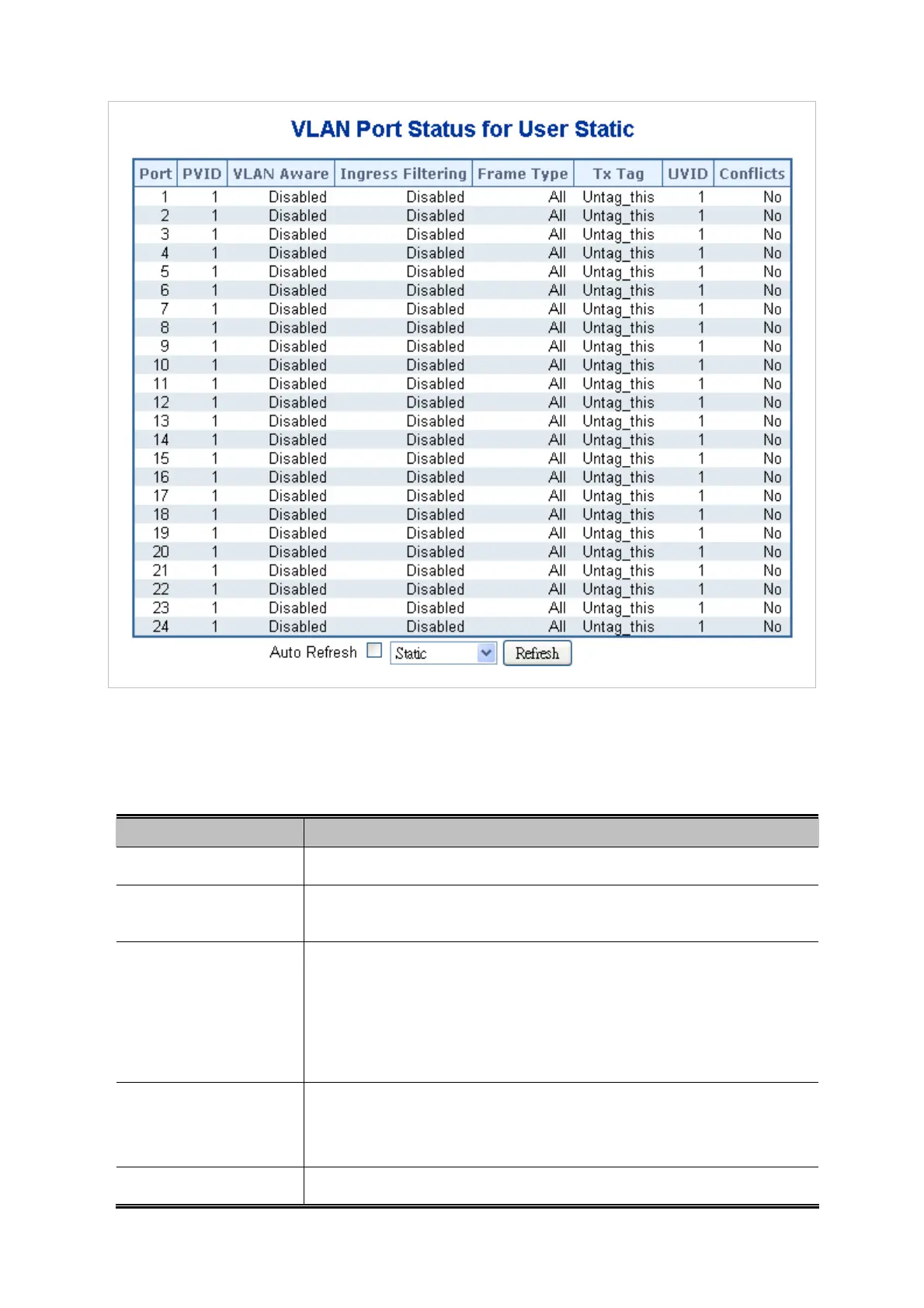

Figure 4-6-5 VLAN Port Status for User Static Page Screenshot
The page includes the following fields:
Object Description
ï‚· Port
The logical port for the settings contained in the same row.
ï‚· PVID
Shows the VLAN identifier for that port. The allowed values are 1 through 4095.
The default value is 1.
ï‚· VLAN Aware
Show the VLAN Awareness for the port.
If VLAN awareness is enabled, the tag is removed from tagged frames received
on the port. VLAN tagged frames are classified to the VLAN ID in the tag.
If VLAN a
wareness is disabled, all frames are classified to the Port VLAN ID and
tags are not removed.
ï‚· Ingress Filtering
Show the ingress filtering for a port. This parameter affects VLAN ingress
processing. If ingress filtering is enabled and the ingress port is not a member of
the classified VLAN of the frame, the frame is discarded.
ï‚· Frame Type
Shows whether the port accepts all frames or only tagged frames. This
122
