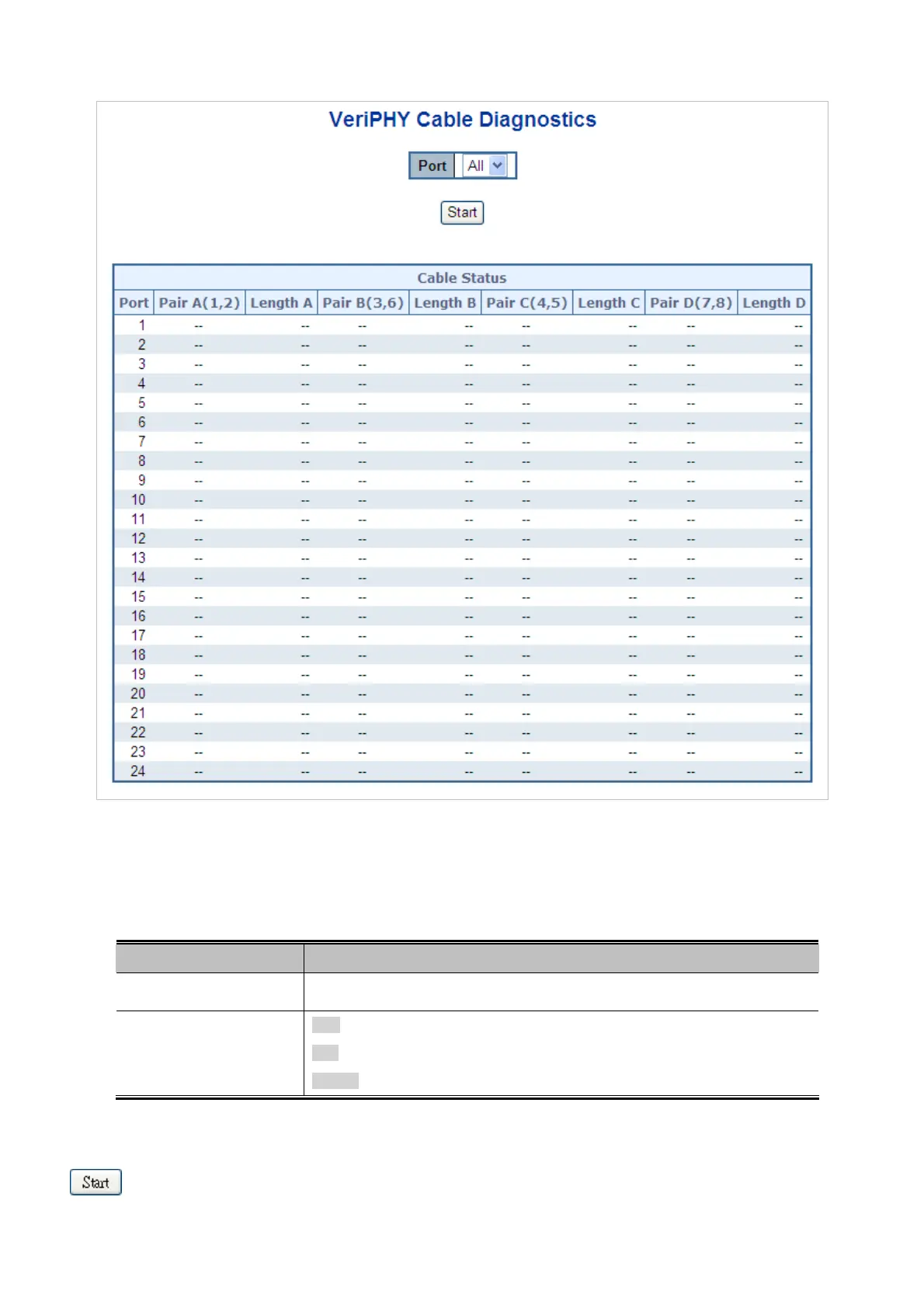

Figure 4-15-4 VeriPHY Cable Diagnostics Page Screenshot
The page includes the following fields:
Object Description
 Port
The port where you are requesting Cable Diagnostics.
 Cable Status
Port: Port number.
Pair: The status of the cable pair.
Length: The length (in meters) of the cable pair.
Buttons
: Click to run the diagnostics.
