1.3 Flea3 USB 3.0 Mechanical Properties

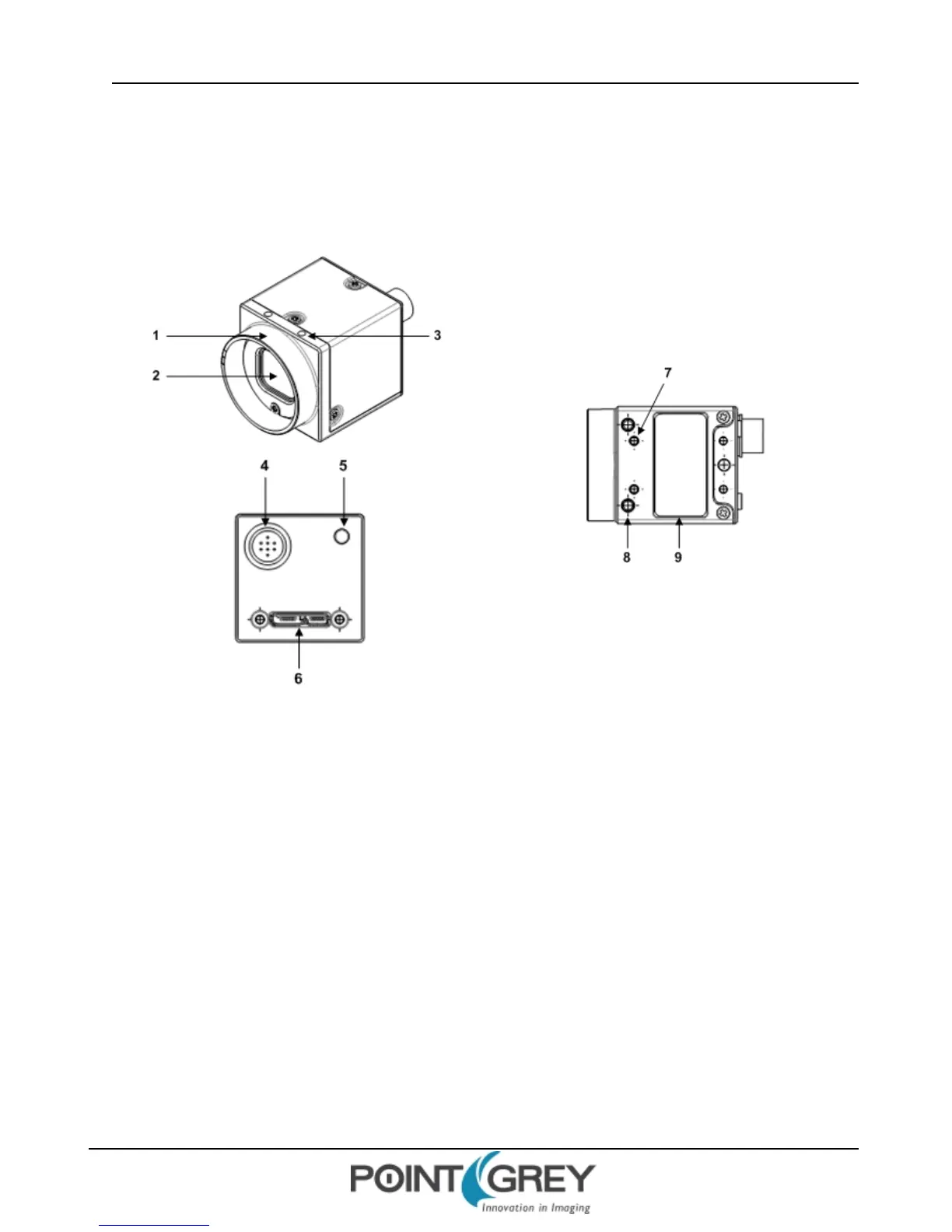

1.3.1 Physical Description
1. Lens holder
Attach lens or other optical equipment. See Lens
Mounting on page 15
2. Glass/IR filter system
See Dust Protection on page 16 and Infrared Cut-
Off Filters on page 17
3. M2x2 mounting holes
See Mounting with the Case or Mounting Bracket
on page 16
4. General purpose I/O connector
The 8- pin GPIO connector is used for external
triggering, strobe output or digital I/O. See
General Purpose Input/Output (GPIO) on page 41
5. Status LED
This light indicates the current state of the
camera operation. See Status Indicator LED on
page 125
6. USB3 connector
See USB3.0 Connector on page 20
7. M2x2 mounting holes
8. M3x2.5 mounting holes
See Mounting with the Case or Mounting Bracket
on page 16
9. Camera label
Contains camera information such as model
name, serial number and required compliance
information.
