Point Grey Flea3 USB 3.0 Technical Reference 1 Welcome to Flea3 USB 3.0
In order to achieve the maximum benefits of USB3.0, the camera must connect to a USB3.0 PCIe 2.0 card.
To purchase a compatible card from Point Grey, visit the Point Grey Webstore or the Products Accessories page.
1.5.3 Interface Cables
The USB 3.0 standard does not specify a maximum cable length.
To purchase a recommended cable from Point Grey, visit the Point Grey Webstore or the Products Accessories page.
1.5.4 General Purpose Input/Output (GPIO)

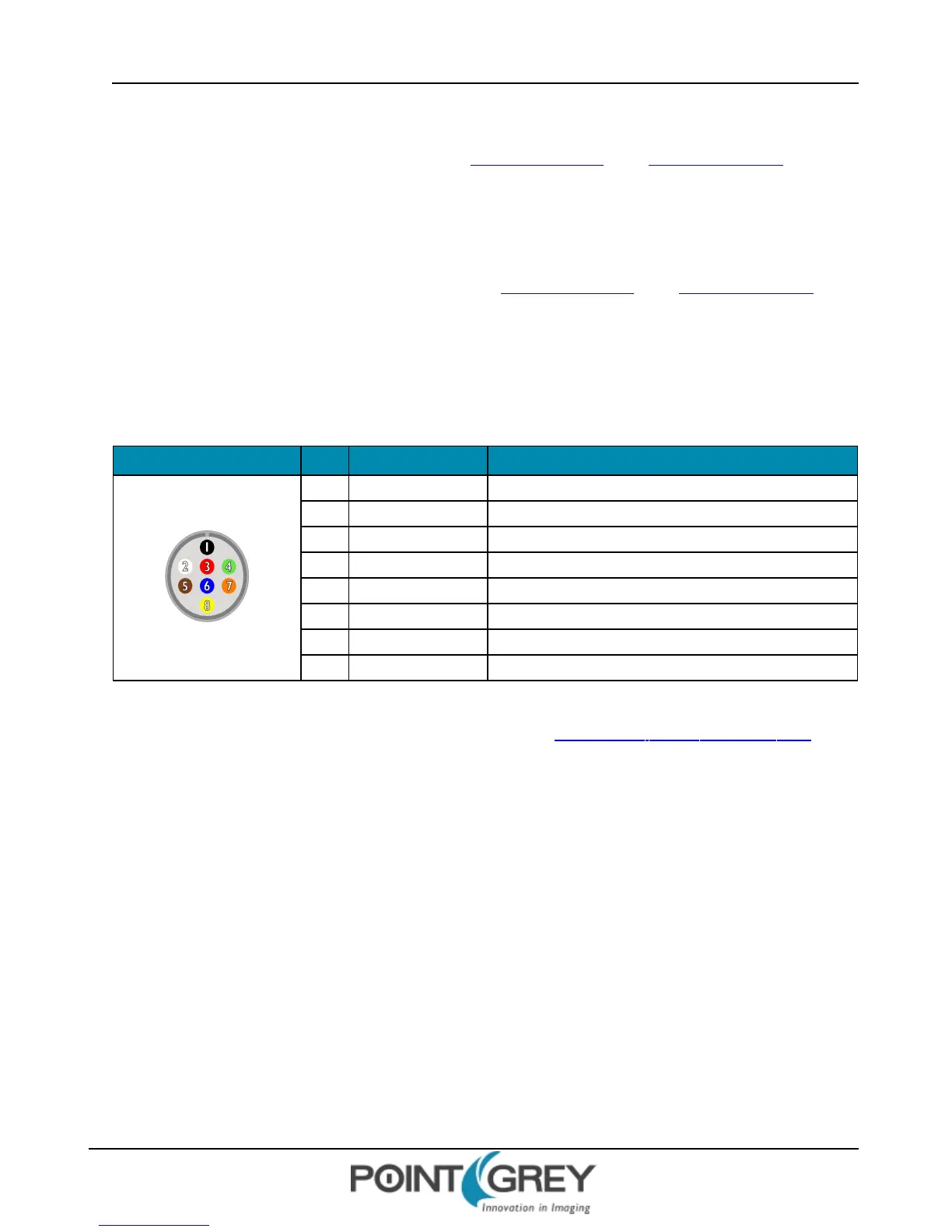

The camera has an 8-pin GPIO connector on the back of the case; refer to the diagram below for wire color-coding.
The connector is a Hirose HR25 8 pin connector (Mfg P/N: HR25-7TR-8SA). Male connectors (Mfg P/N: HR25-7TP-8P)
can be purchased from Digikey (P/N: HR702-ND).
Diagram Pin Function Description
1 I0 Opto-isolated input (default Trigger in)
2 O1 Opto-isolated output
3 IO2 Input/Output/serial transmit (TX)
4 IO3 Input/Output/serial receive (RX)
5 GND Ground for bi-directional IO, V
EXT
, +3.3 V pins
6 OPTO_GND Ground for opto-isolated IO pins
7 V
EXT
Allows the camera to be powered externally
8 +3.3 V Power external circuitry up to 150 mA
Point Grey sells a 12 V wall-mount power supply equipped with a HR25 8-pin GPIO wiring harness for connecting to
the camera (Part No. ACC-01-9006). For more information, see the miscellaneous product accessories page on the
Point Grey website.
For more information on camera power, see Powering the Camera on page 29
For more information on configuring input/output with GPIO, see Input/Output Control on page 41.
For details on GPIO circuits, see GPIO Electrical Characteristics on page 59.
Revised 9/27/2012
Copyright ©2011-2012 Point Grey Research Inc.
21
