STEERING / FRONT SUSPENSION
6.21

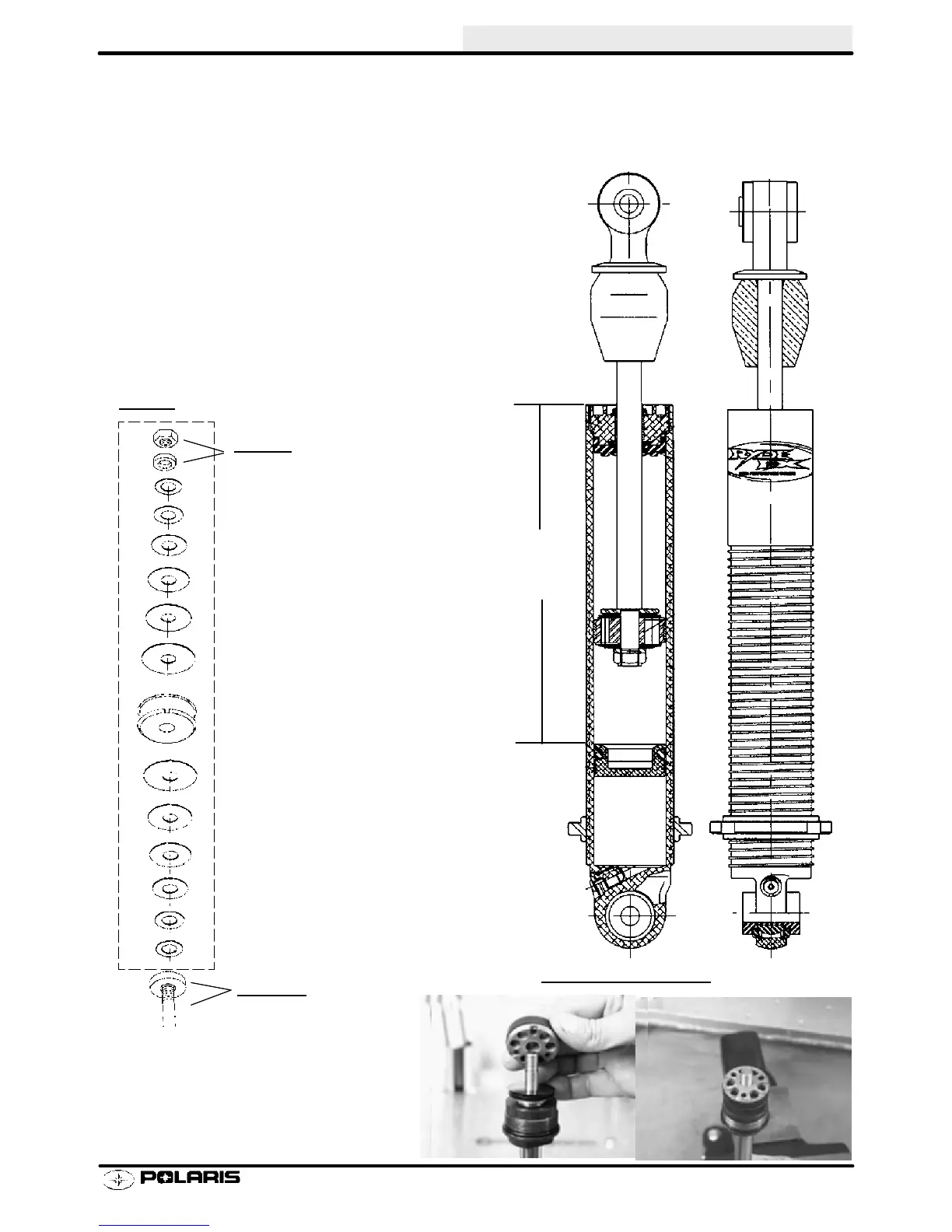

440 Pro X Fan IFS Shock (Ryde FX)
P/N 7042183
Piston (orifice .093)
Compression
Rebound
Shaft
End
Nut
End
Valving
Stack shown as placed on the
shock rod with rod in a vice.
PISTON ORIENTATION
Ryde FX Shock -- PN 7042183
Shock Design Details (Inches)
Travel 6.27...............
Extended Length 18.00.....
Compressed Length 11.73..
IFP Depth 6.27...........
Nitrogen 200 psi............
Oil Capacity 170 cc.........
Compression
Rebound
Shaft
End
Nut
End
Valving
Stack shown as placed on the
shock rod with rod in a vice.
PISTON ORIENTATION
Lock nut
.800x.008
.900x.008
1.000x.010
1.100x.010
1.250x.010
1.300x.006
1.100x.006
.900x.008
1.250x.008
1.000x.008
.900x.008
.800x.010
IFP
Depth
