STEERING / FRONT SUSPENSION
6.22

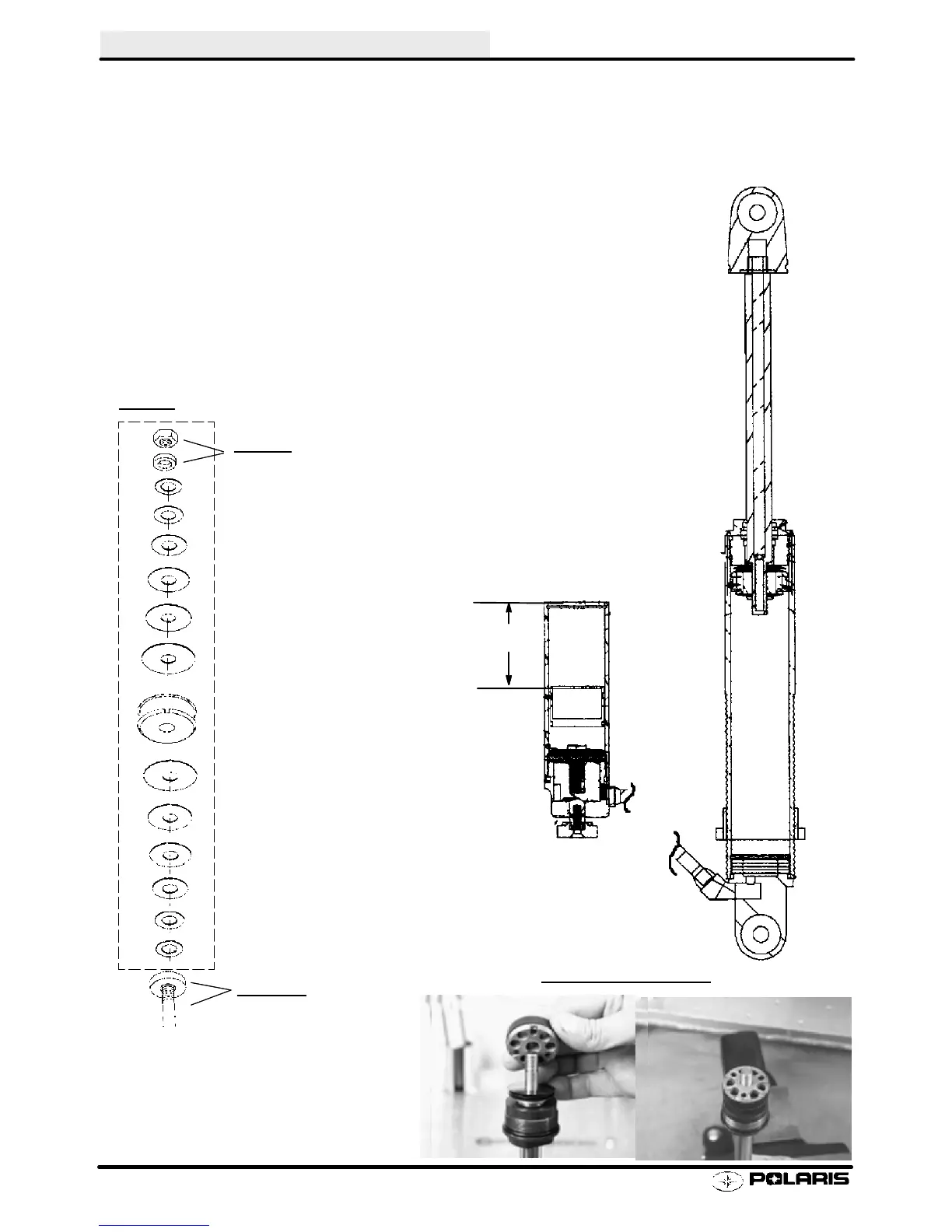

440 Pro X IFS Shock (Walker Evans Racing Shock)
P/N 7042180
Piston (orifice .052)
Compression
Rebound
Shaft
End
Nut
End
Valving
Stack shown as placed on the
shock rod with rod in a vice.
PISTON ORIENTATION
Ryde FX Shock -- PN 7042180
Shock Design Details (Inches)
Travel 6.27...............
Extended Length 18.00.....
Compressed Length 11.738..
IFP Depth 2.00...........
Nitrogen 200 psi............
Oil Capacity 235 cc.........
Compression
Rebound
Shaft
End
Nut
End
Valving
Stack shown as placed on the
shock rod with rod in a vice.
PISTON ORIENTATION
Lock nut
.625x.065
.700x.010
.800x.010
.900x.010
1.000x.010
.800x.010
1.100x.010
.800x.010
1.200x.010
1.300x.012
1.200x.012
.800x.012
1.000x.10
.900x.010
.800x.010
.700x.010
1.250x.015
1.100x.012
1.000x.012
.900x.012
.800x.012
.875X.090
IFP Depth
