Polaris 2003 Pro X User Manual

STEERING / FRONT SUSPENSION
6.23

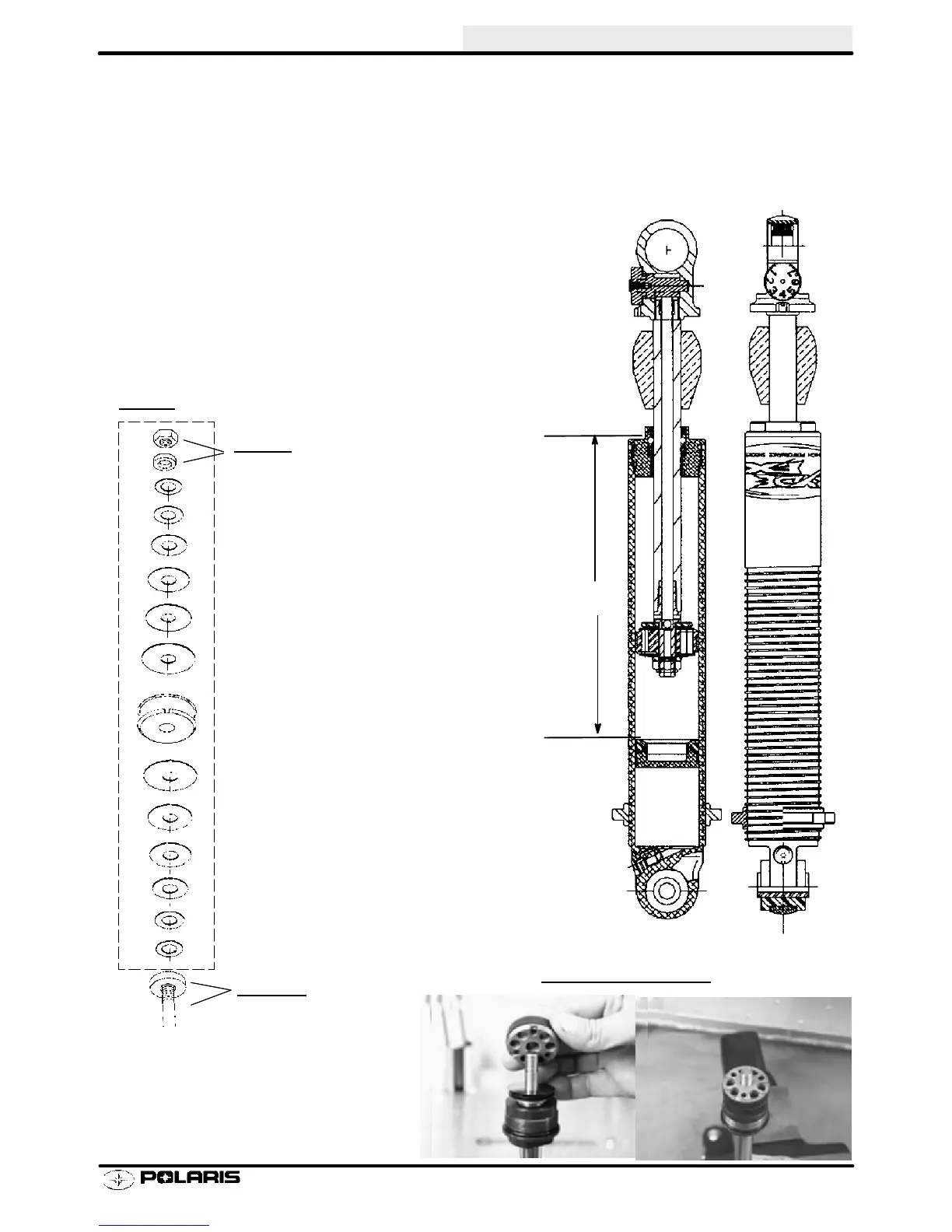

600/700/800 Pro X IFS shock (Ryde FX)
P/N 7042215
IFP Depth
Piston (orifice .093)
Compression
Rebound
Shaft
End
Nut
End
Valving
Stack shown as placed on the
shock rod with rod in a vice.
PISTON ORIENTATION
Ryde FX Shock -- PN 7042215
Shock Design Details (Inches)
Travel 6.21...............
Extended Length 17.32.....
Compressed Length 11.62..
IFP Depth 6.21...........
Nitrogen 200 psi............
Oil Capacity 148 cc.........
Compression
Rebound
Shaft
End
Nut
End
Valving
Stack shown as placed on the
shock rod with rod in a vice.
PISTON ORIENTATION
Lock nut
.800x.008
.900x.008
1.000x.010
1.100x.010
1.250x.010
1.300x.006
1.100x.006
.900x.008
1.250x.010
1.000x.008
.900x.008
.800x.010
