Polaris 2003 Pro X User Manual

REAR SUSPENSION/TRACK/TRACTION
7.15
Rear Track Shock - 600/700/800 Pro X -- Ryde FX
P/N 7042213
Walker Evans Racing Shock -- PN 7042213

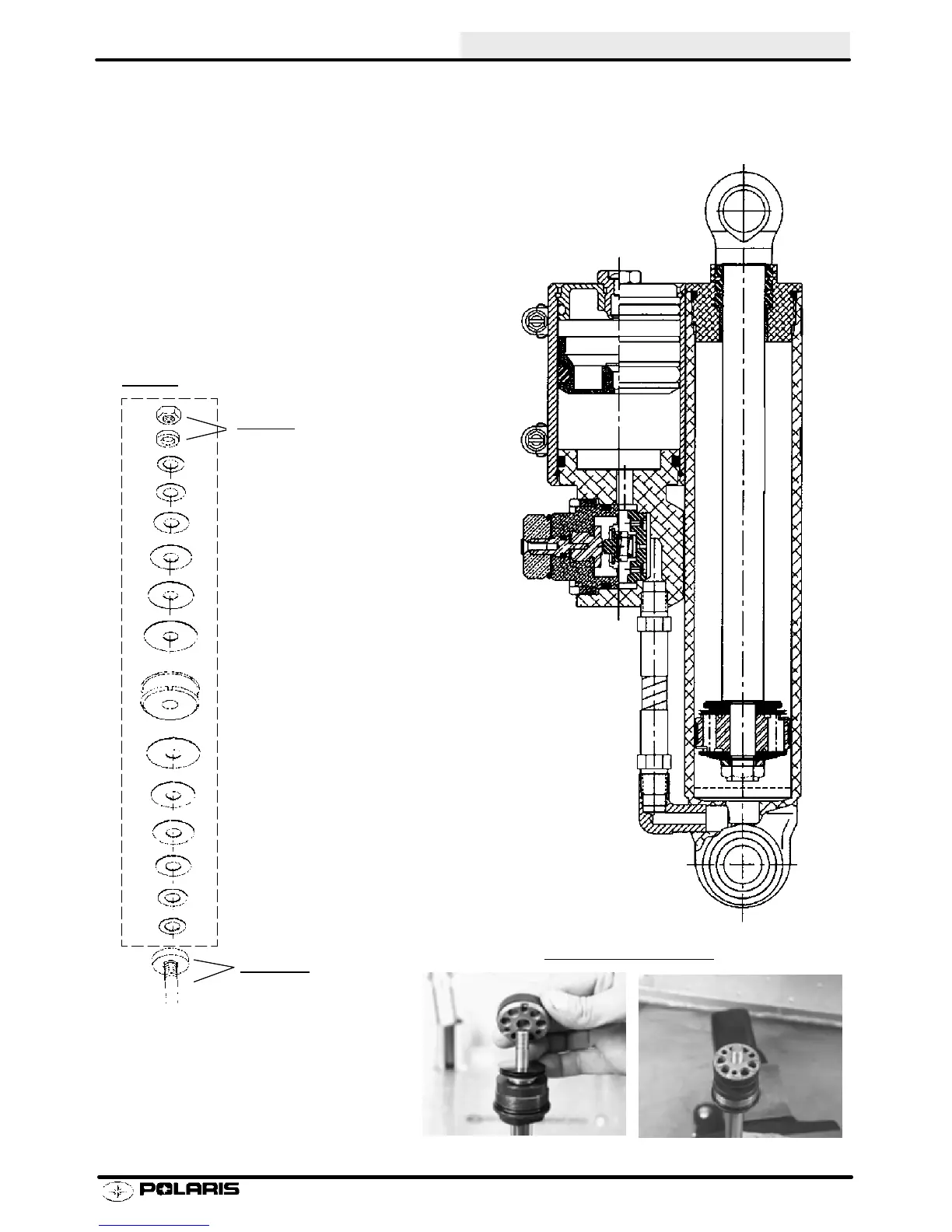

Shock Design Details (Inches)
Travel 5.35...............
Extended Length 14.493.....
Compressed Length 9.593..
IFP Depth 1.50...........
Nitrogen 200 psi............
Oil Capacity 172 cc.........
Hose Length N/A.........
Piston (orifice .070)
Lock nut
.700X.012
.800X.012
.900X.012
1.000X.012
1.000X.012
1.250X.015
1.250X.015
Compression
Rebound
Shaft
End
Nut
End
Valving
Stack shown as placed on the
shock rod with rod in a vice.
PISTON ORIENTATION
1.300x.008
1.100x.006
.900X.008
1.250X.010
1.100X.008
1.000X.008
.900X.010
Shaft End
Nut
End
Valving
Stack shown as placed on the
shock rod with rod in a vice.
PISTON ORIENTATION
