Polaris 2003 Pro X User Manual

REAR SUSPENSION/TRACK/TRACTION
7.14
Front Track Shock - 600/700/800 Pro X -- Ryde FX
P/N 7042214
Walker Evans Racing Shock -- PN 7042214

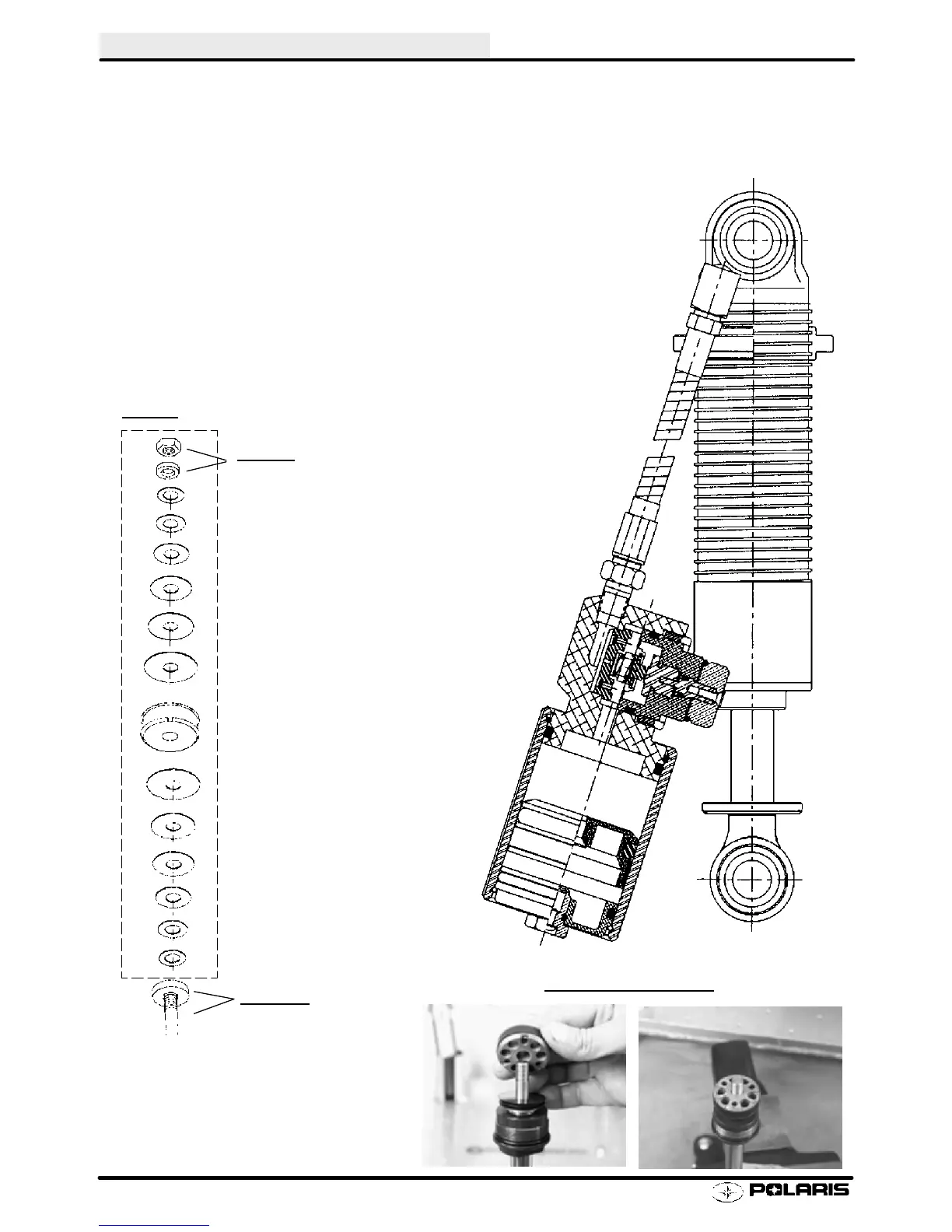

Shock Design Details (Inches)
Travel 3.75...............
Extended Length 11.99.....
Compressed Length 8.24..
IFP Depth 1.50...........
Nitrogen 200 psi............
Oil Capacity 136 cc.........
Hose Length 24.........
Piston (orifice .086)
Lock nut
.700x.010
.800x.010
.900x.008
1.000x.008
1.100x008
1.250x.008
Compression
Rebound
Shaft
End
Nut
End
Valving
Stack shown as placed on the
shock rod with rod in a vice.
PISTON ORIENTATION
1.300x.008
.900x.008
1.250x.008
1.100x.008
1.000x.008
.900x.008
.800x.010
Shaft End
Nut
End
Valving
Stack shown as placed on the
shock rod with rod in a vice.
PISTON ORIENTATION
