REAR SUSPENSION/TRACK/TRACTION
7.25
Procedures for the proper disassembly and assem-
bly of the adjustable compression clicker
WARNING: Before servicing a gas shock it is impor-
tant that all the gas pressure be discharged from the
unit. Refer to the instructions listed below for the
proper procedure of discharging the gas pressure
from a shock. Protective eyewear should be worn
to avoid risk of injury while servicing Ryde FX gas
charged mono--tube shocks.

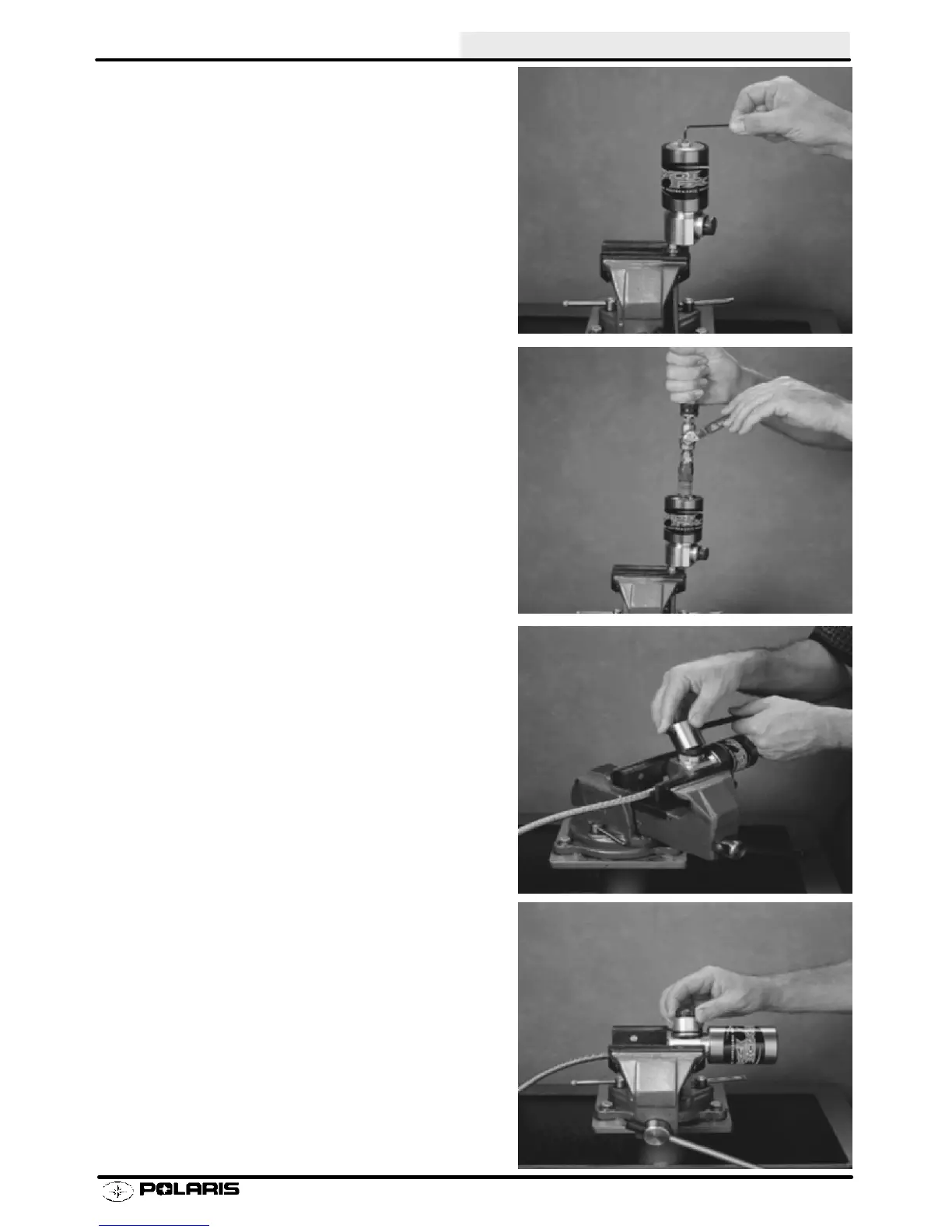

Remove small button head screw from the pressure
valve assembly found on the bottom of the reservoir.
(Picture 21)
Discharge all the gas pressure from the shock:If us-
ing Ryde FX inflation tool Refer to Procedures for
use of replaceable inflation Needle instruction
manual found in Ryde FX Inflation Tool case. If infla-
tion tool incorporates ball valve, open valve fully and
allow all the gas pressure to be released from the
shock. (PICTURE 22)
Using the collar socket, loosen and remove the
compression assembly collar. (Picture 23)
Paying special attention to the position of the pin
(relative to the reservoir) remove clicker assembly
(Picture 24)
NOTE: Inspect O--ring for nicks, cuts or cracks. Re-
placement is recommended should any of these
signs be present.
