ENGINE
2.34
Disassembly, Cont.

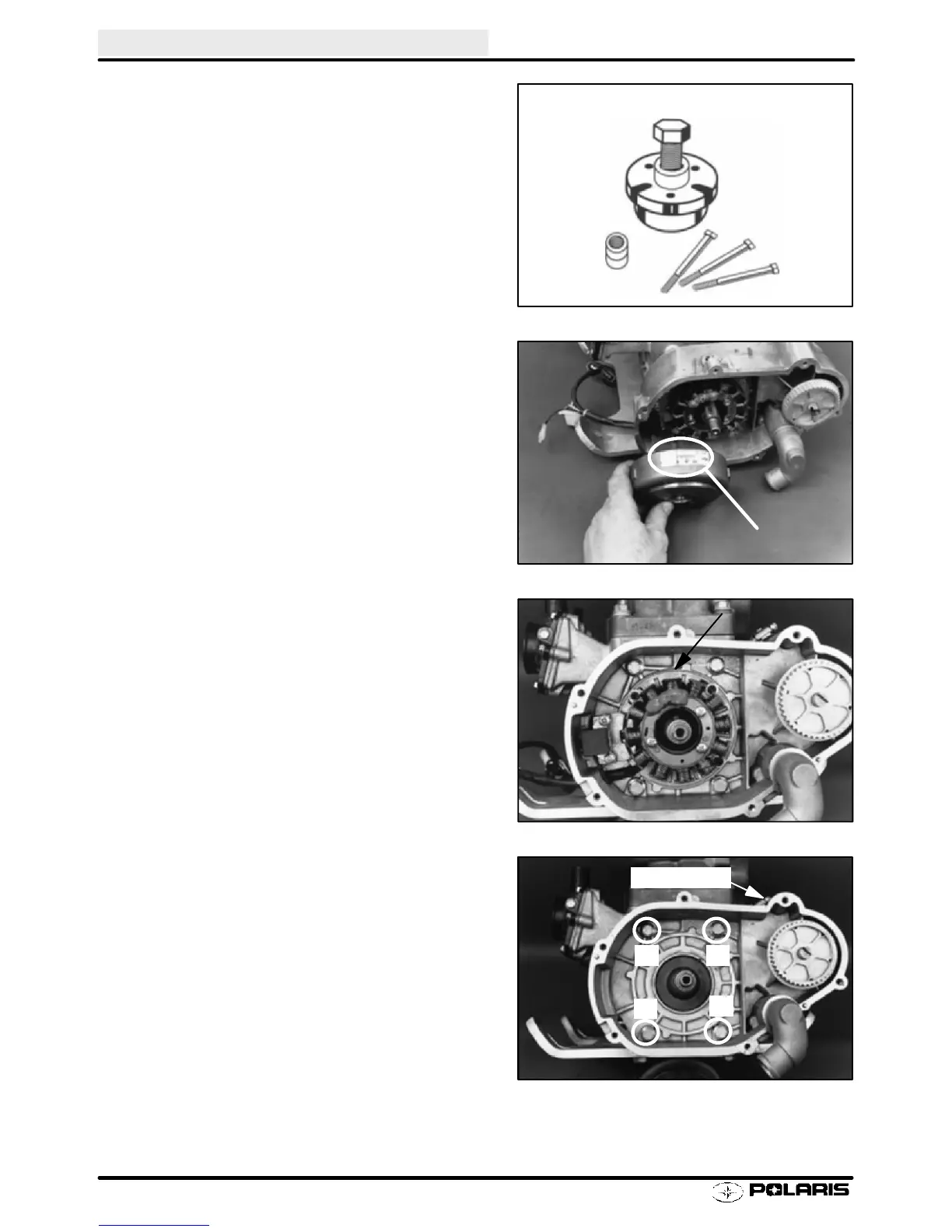

5. Remove flywheel using flywheel puller.
6. Note the ignition timing strip on the flywheel.
7. Before removing stator plate, mark the plate and
crankcase for reference upon assembly.
8. Remove bolts holding water pump housing to
crankcase. Loosen hose clamp and remove
housing.
Flywheel Puller: PN 2871043
Timing strip
Hose Clamp
1
2
3
4
