ENGINE
2.33
Libertyt 700 / 800 Engines
NOTE: Inspect all parts for wear or damage during disassembly. It is recommendedtore-
place all seals, O-rings, and gaskets with Genuine Polaris parts during assembly. Refer to
General inspection procedures in this chapter.

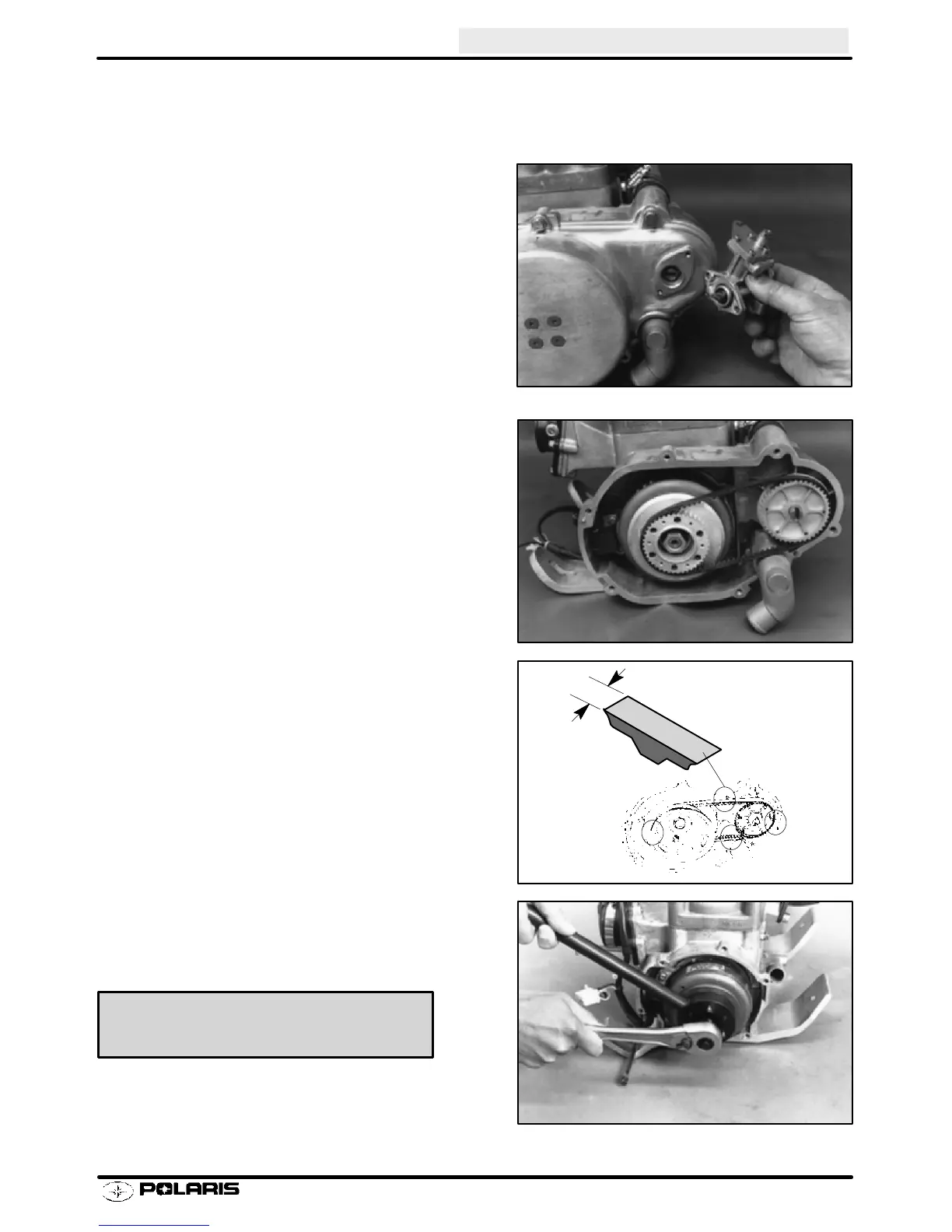

Disassembly
1. Remove the oil pump.
2. Remove the recoil housing and the recoil hub.
Inspect waterpump drive belt for missing, cracked,
or broken drive cogs.
Measure the belt at 4 different points as shown. Re-
place if width is less than .250s, (6.35mm). Nominal new
width is .345s, (8.75mm).
3. Remove drive gears and belt.
4. Remove flywheel nut using flywheel holder.
Replace if width is
less than .25s (6.35mm)
Flywheel Holder:
PN 8700229
Flywheel Holder: PN 8700229....
