ENGINE
2.42
Assembly, Cont.

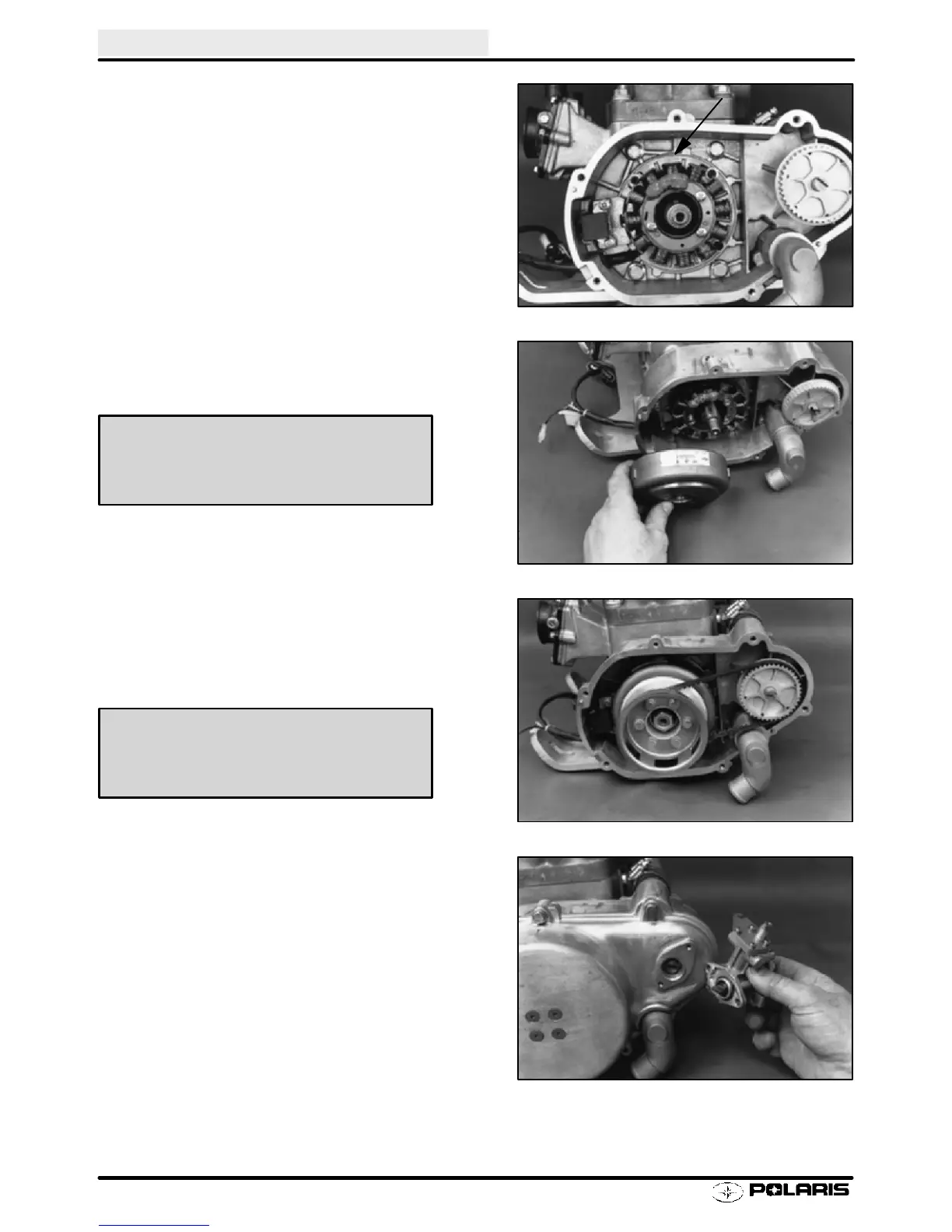

20. Align timing marks and install stator.
21. Install flywheel and torque flywheel nut to 90 ft.lbs
(124Nm).
22. Install water pump belt and recoil hub.
NOTE: See domestic twin water pump belt installation
in chapter 2, Maintenance, for correct belt installation
23. Install recoil cover and oil pump. Make sure oil
pump drive slot mates properly with water pump
shaft.
24. Install reed valve, reed stuffer, and reed cover.
Flywheel Nut Torque -
90ft. lbs. (124 Nm)
Recoil Hub Bolt Torque -
96-108 in. lbs. (11 - 12.5 Nm)
