3.51
ENGINE
3

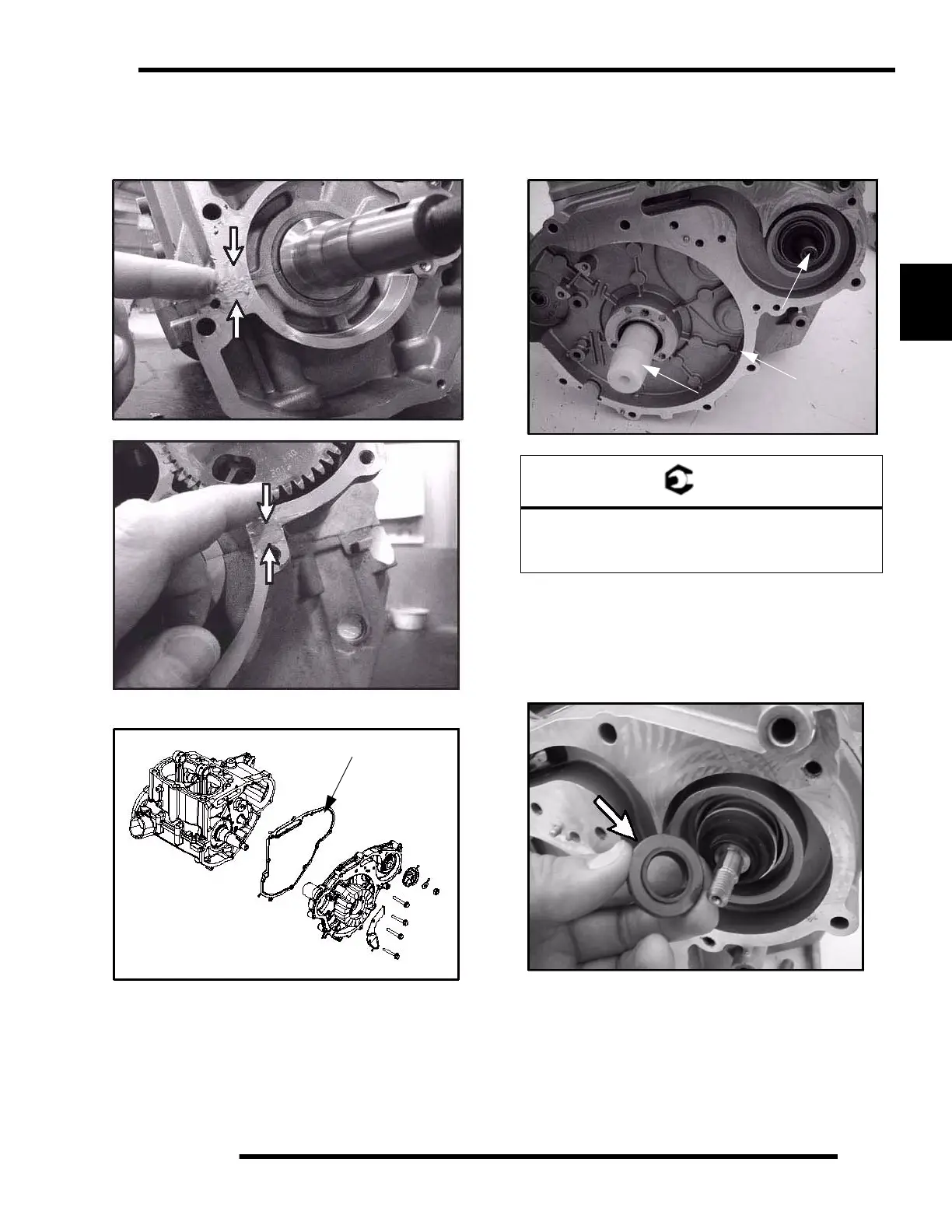

33. Apply Crankcase Sealant (PN 2871557) to the outside
edges of the crankcase halves (See arrows), where the
crankcases mate. (See photos below.) This helps to prevent
coolant leakage.
34. Install the gear/stator housing gasket onto he crankcase.
35. Secure the gear/stator housing cover (O) to the crankcase
with the cover bolts. Torque bolts in proper sequence to
specification. Remove seal protectors from the shaft ends
once secure.
NOTE: Before assembly, clean the bolts and bolt
holes with Primer N (PN 2870585) to remove any
debris. This will ensure proper sealing when
installing bolts.
36. Install shaft seal with ceramic surface facing inward.
Gear/Stator Housing Gasket
= T
Gear/Stator Housing Bolt Torque:
96  3 in. lbs. (10.85  0.35 Nm)
*Torque in proper sequence
O
PA-45658
PA-45401
