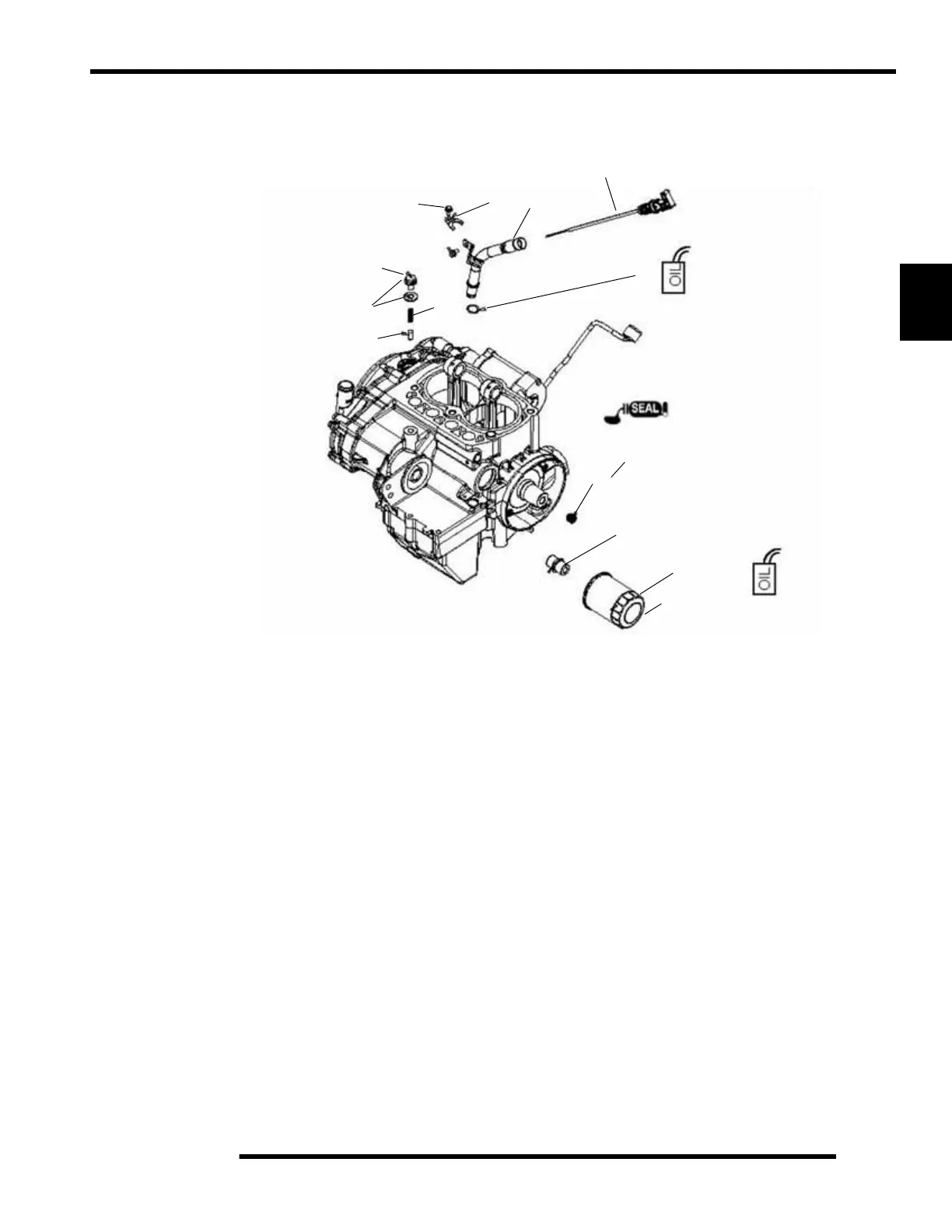

Oil System / Level Assembly Exploded View
A. Clamp
B. Oil Fill Tube
C. Dipstick
D. O-ring
E. Hex Plug
F. Oil Filter Nipple
G. Oil Filter
H. Dowel
I . G a l le y Pl u g
J. Nut/washer
K. Spring
A
B
C
D
E
F
G
H
I
J
50  5 in. lbs.
(5.65 0.56 Nm)
35  4 ft.lbs.
(47.5  5.4 Nm)
18  2 ft.lbs.
(24.4  2.71 Nm)
22  2 ft.lbs.
(30  3 Nm)
50  5 in.lbs. (5.64
 0.56 Nm)
K
