Polaris 600 RUSH 2010 - 800 DC-CFI-2 Crankcase;Crankshaft

3.30
Engine/Cooling/Exhaust

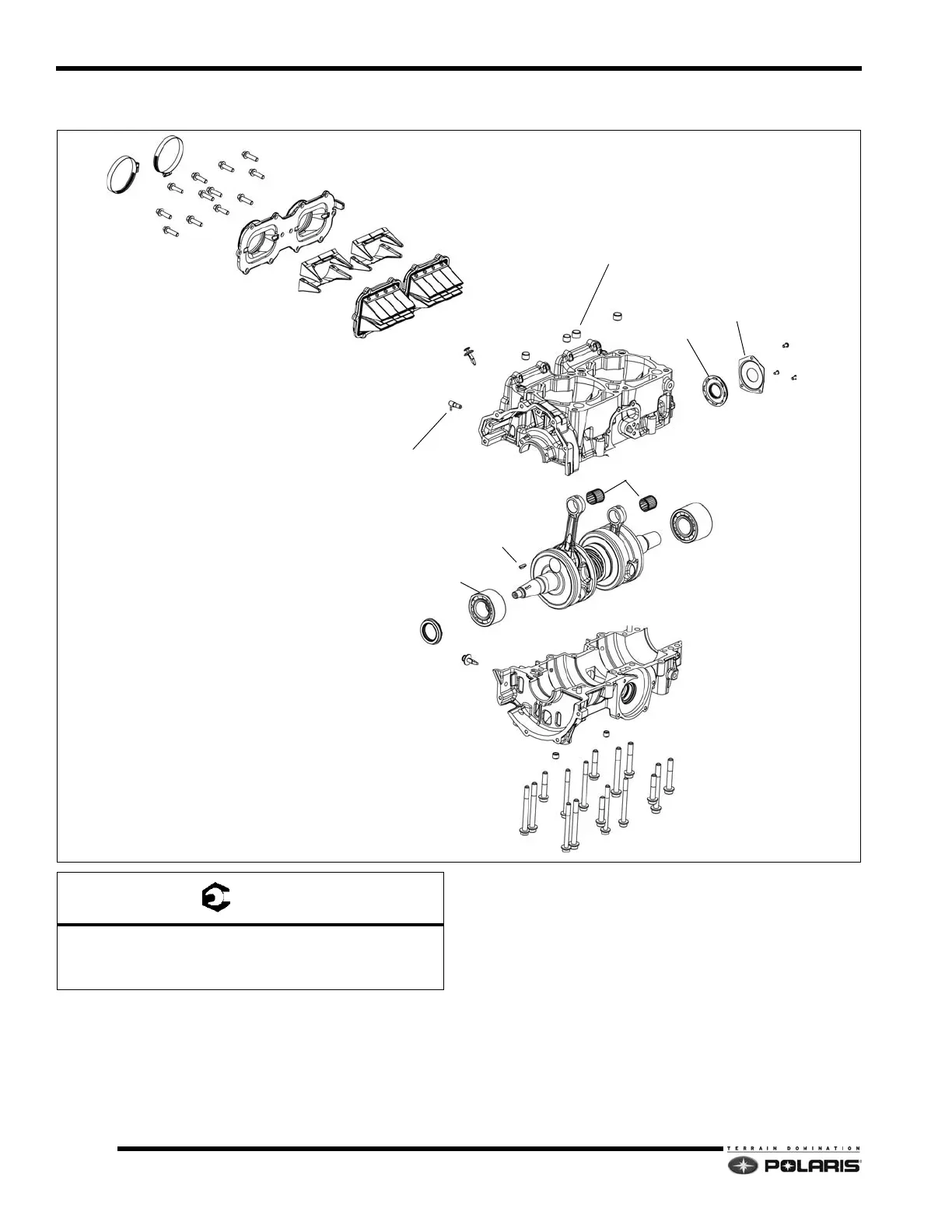

800 DC-CFI-2 Crankcase/Crankshaft
GEAR CLAMPS
ADAPTER PLATE
REED STUFFERS
REED BLOCKS
SEAL GUARD
PTO SEAL
ALIGNMENT DOWELS
MAG SEAL
MAG BEARING
FLYWHEEL KEY
PTO BEARING
WRIST PIN BEARINGS
OIL INJECTION CHECK VALVE QTY. 5
ALIGNMENT DOWELS
A
B
C
STATOR WIRE RETAINER
STATOR WIRE RETAINER
= T
A: 9 ft-lbs (12 Nm)
B: 22 ft-lbs (30 Nm) - Apply Loctite® 242™
C: 10 ft-lbs (13 Nm) - Apply Pipe Sealant
