9.37
Chassis
9
11. Once the adhesive bond is broken, remove the right-
side bulkhead clip from the chassis. Note the old
(residual) adhesive. If the component is to be re-used,
the adhesive must be completely removed. See
Bonded Component Surface Preparation section.

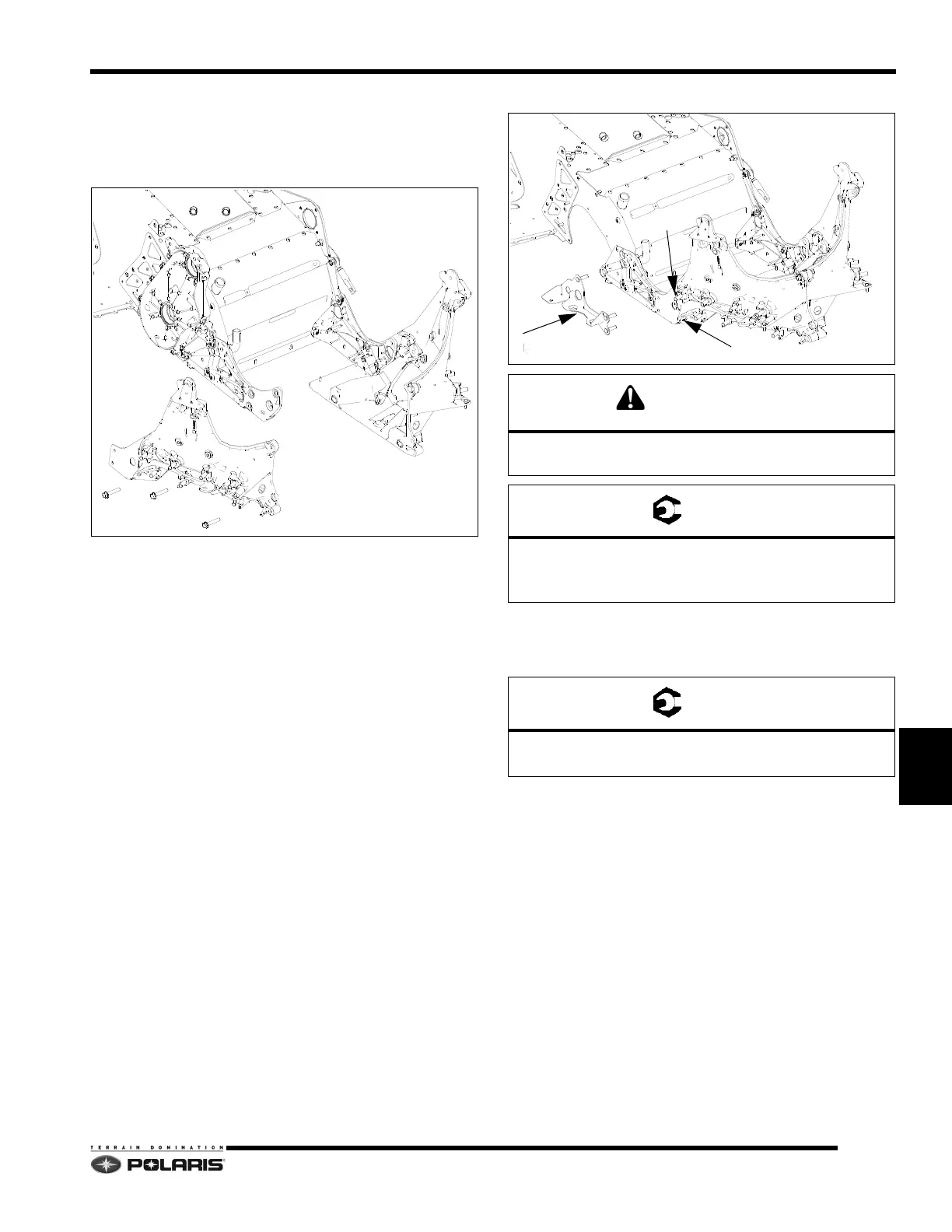

Right Bulkhead Clip Installation
1. Verify the bulkhead clip and engine side support
brace are thoroughly cleaned and all residual
adhesive is removed from both parts.
2. Gather together the two T4
0 fasteners and nuts, and
the exhaust bracket screw and nuts that secure the
bulkhead clip to the side brace.
3. The next assembly step is applying the adhesive.
Th
oroughly read and understand the Adhesive
Applicator Tool and Adhesive Application sections
before proceeding.
4. Apply the adhesive to the front, right side brace as
o
utlined in the Adhesive Application section.
5. Install the bulkhead clip. Install and torque the T40
scr
ews that attach the clip to the side support brace,
and the screw and three nuts that attach the exhaust
silencer bracket to the brace.
6. Torque fasteners to specification.
7. Reinstall the bulkhead clip
fasteners including lower
heat exchanger mount screw/nut. Torque nuts to
specification.
The fasteners must be torqued within the adhesive
working time of 6 to 10 minutes.
Bulkhead Clip-to-Side Brace Fasteners:
Exhaust Bracket Fasteners
26 ft-lbs (35 Nm)
Bulkhead Clip Fasteners:
26 ft-lbs (35 Nm)
