6.14
PVT System
Drive Belt Removal - SPA P2
NOTE: Turn the key to the “OFF” position and allow
the engine to come to a complete stop.
1. Verify the driven clutch is not in
reverse. Open the LH
compartment door panel.

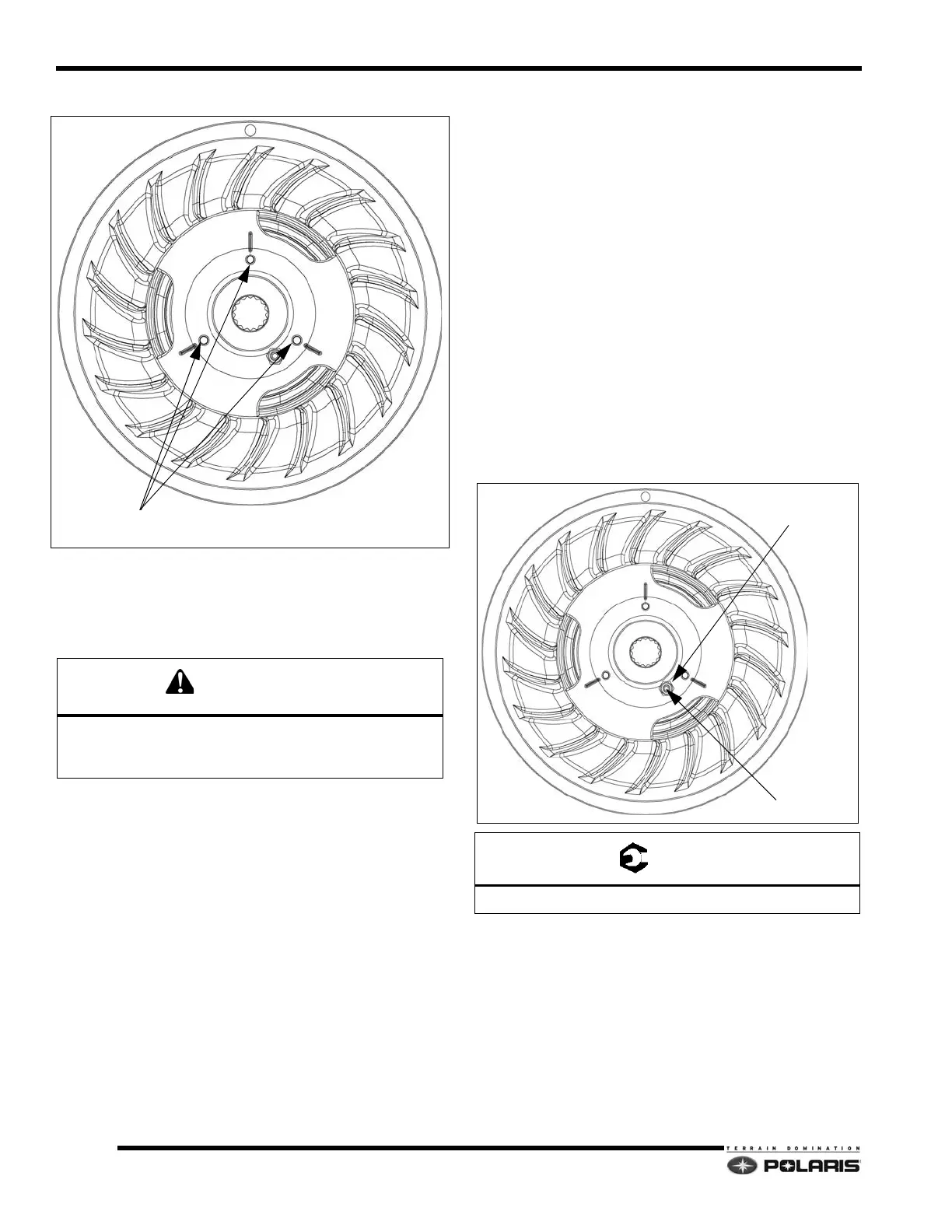

2. Insert the L wrench, PN 2874857, into one of the
th
readed holes located on the driven clutch. Turn it
clockwise until the clutch sheaves are in the open
position.
3. Remove the drive belt.
Drive Belt Installation - SPA P2
1. With the L wrench inserted into one of the threaded
holes and the sheaves in the open position, install the
drive belt.
NOTE: Install belt so that the numbers can be read
corr
ectly on the left side of the machine or in the
direction in which the belt was originally installed.
2. Remove the wrench. “Wiggle” the belt to remove slack
wh
ile removing the wrench.
Adjusting Belt Deflection - SPA P2
1. Loosen the deflection screw jam nut.
2. Using a 1/8 Allen driver, turn the deflection screw in
or
out to adjust the distance between the driven clutch
sheaves.
3. When the proper belt deflection is achieved torque the
lock nu
t to specification.
Damage to the driven clutch or L wrench will occur when
attempting to open the driven clutch when the driven
clutch is in the reverse position.
Deflection Screw Lock Nut: 110 in-lbs (12 Nm)
