Steering and Suspensions

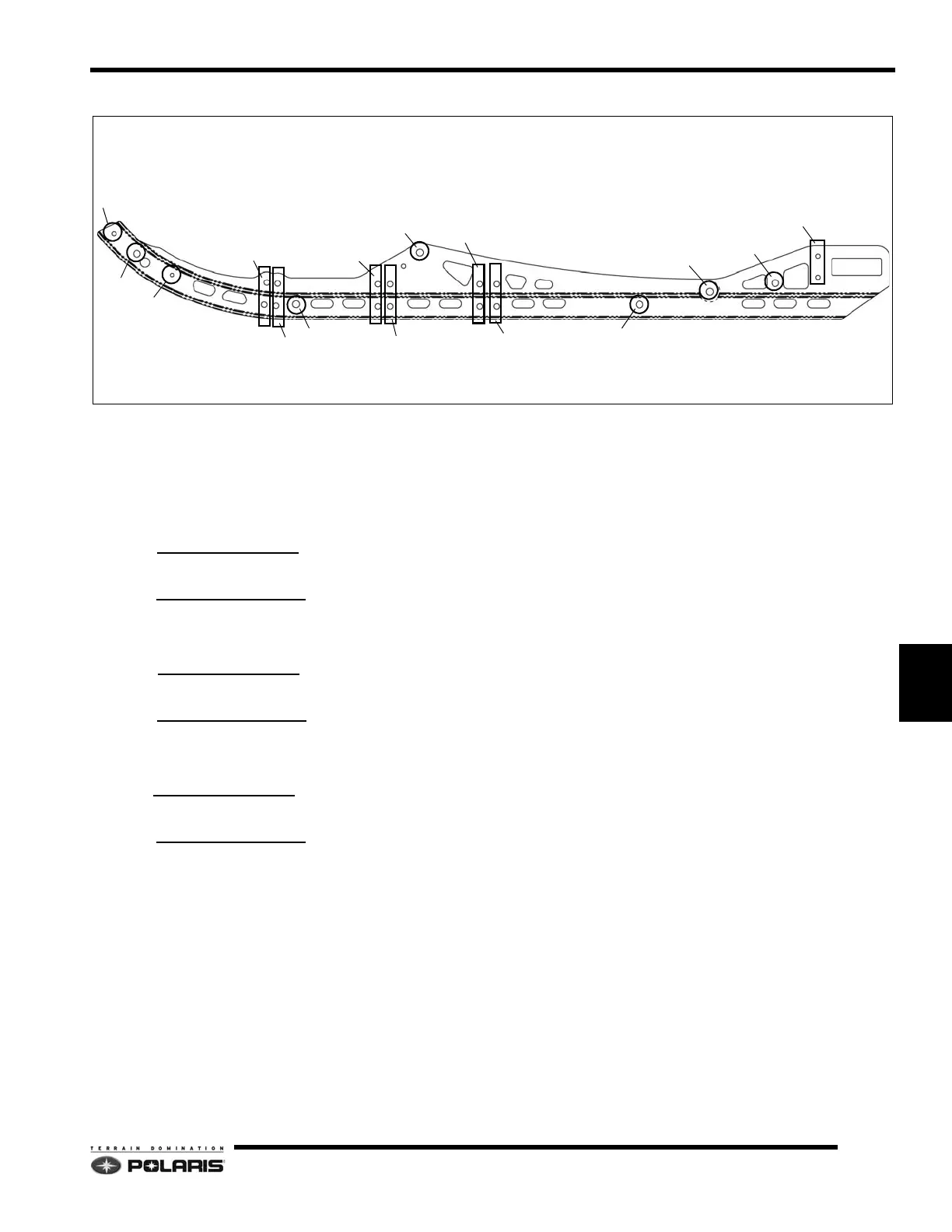

Progressive 121 Rail Fastener Locations

Components/Fasteners:

• A - Rail Tip

• B - Limiter Strap Shaft

• C - Rail Bumper

•D -

Left Rail Front Holes - Bogie Wheel Asm.

(Mount to outside of rail).

•E -

Right Rail Rear Holes - Bogie Wheel Asm.

(Mount to outside of rail).

• F - Front Shock Shaft

•G -

Left Rail Front Holes - Bogie Wheel Asm.

(Mount to outside of rail).

•H -

Right Rail Rear Holes - Bogie Wheel Asm.

(Mount to outside of rail).

• I - Front Torque Arm Shaft

•J -

Left Rail Front Holes - Bogie Wheel Asm.

(Mount to inside of rail).

•K -

Right Rail Rear Holes - Bogie Wheel Asm.

(Mount to inside of rail).

• L - Rail Brace Shaft

• M - Rear Pivot Shaft

• N - Rail Brace Shaft

• O - Rear Idler Adjuster Block

LEFT RAIL SHOWN
