8.38
Steering and Suspensions

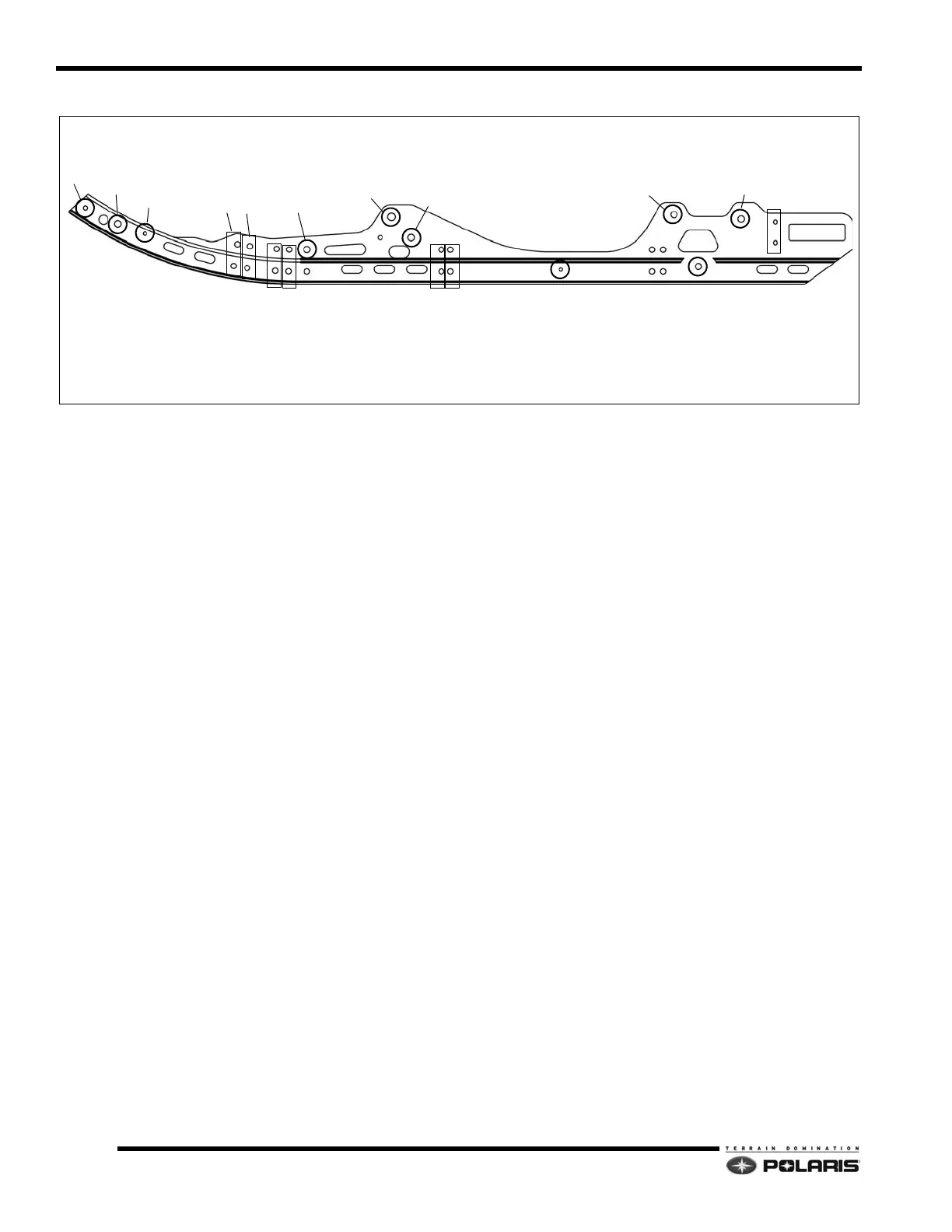

INDY 121 Conventional Rail Fastener Locations
Components/Fasteners:
A - Rail Tip
B - Limiter Strap Shaft
C - Rail Bumper
D - Optional Bogie Wheel Asm. (Mount to inside of right rail).
E - Optional Bogie Wheel Asm. (Mount to inside of left rail).
F - Bogie Wheel Asm. (Mount to outside of right rail).
G - Bogie Wheel Asm. (Mount to outside of left rail).
H - H Bracket Mount
I - Front Torque Arm Mount
J - Spring Roller Mount
K - Bogie Wheel Asm. (Mount to outside of left rail).
L - Bogie Wheel Asm. (Mount to outside of right rail).
M - Rail Bumper
N - Rear Pivot Mount
O - Front-Rear Scissor Stop (FRSS)
P - Rear-Rear Scissor Stop (RRSS)
Q - Rear Idler Adjuster Block Mount
LEFT RAIL SHOWN
A
B
C
D E
FG
H
I
J
KL M N
O
P
Q
