8.69
Steering and Suspensions
8

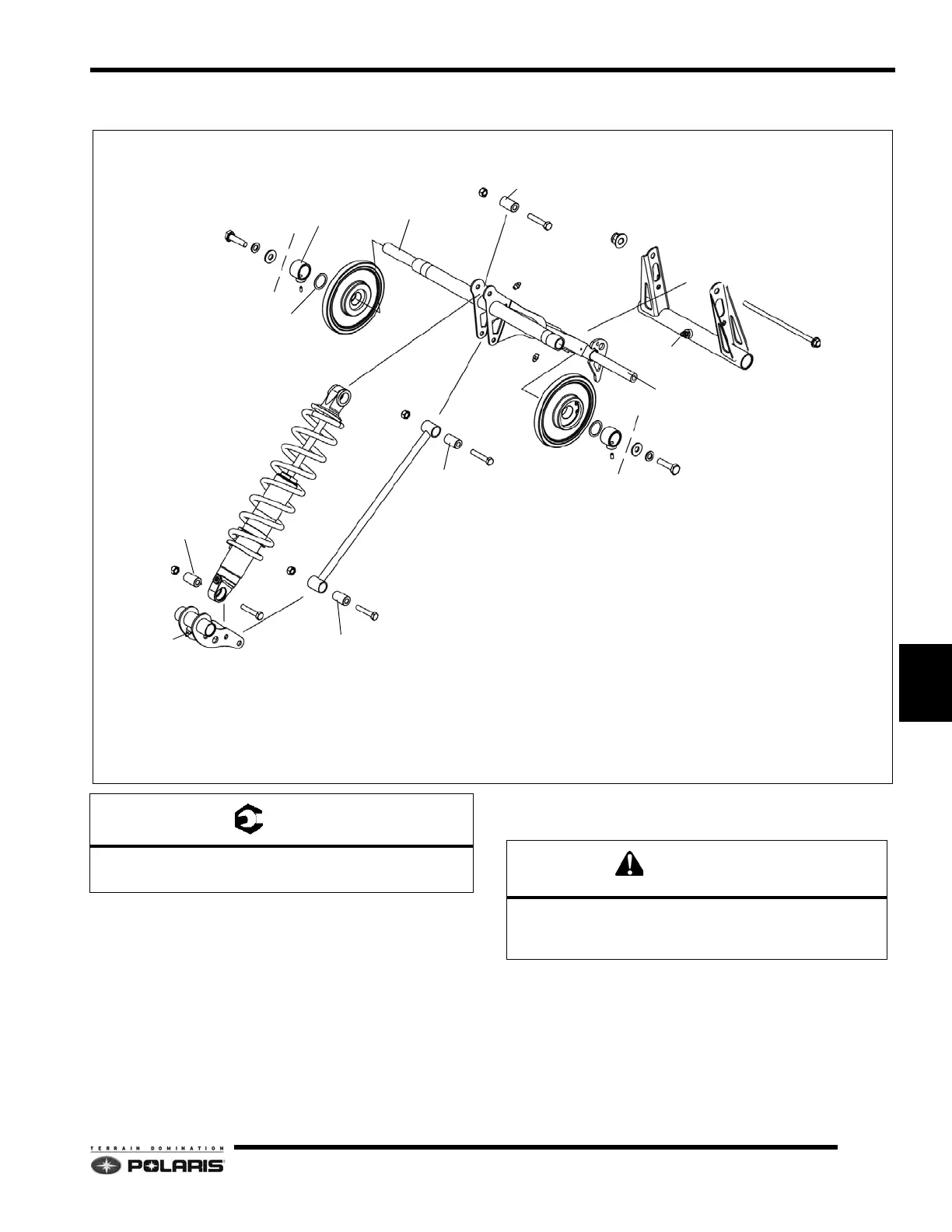

RMK/PRO RMK 155/163 Rear Torque Arm
Assembly Notes
Never re-use lock nuts. Always replace with new
pa
rts.
All pivots must rotate freely after tightening
fast
eners.
REAR TRACK SHOCK PIVOT
SHOCK ROD
REAR PIVOT
PIVOT SHAFT
INNER SHAFT
BUSHING
BUSHING
BUSHING
BUSHING
GREASE ZERK
GREASE ZERK
GREASE ZERK
GREASE ZERK
CARRIER WHEEL
COLLAR
BUSHING
A
A
B
B
B
B
B
METRIC FASTENERS
= T
A: 46 ft-lbs (63 Nm)
B: 17 ft-lbs (23 Nm)
CAUTION
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners.
