Polaris 600 RUSH 2010 - Fuel System Assembly

4.22
Cleanfire Fuel Injection

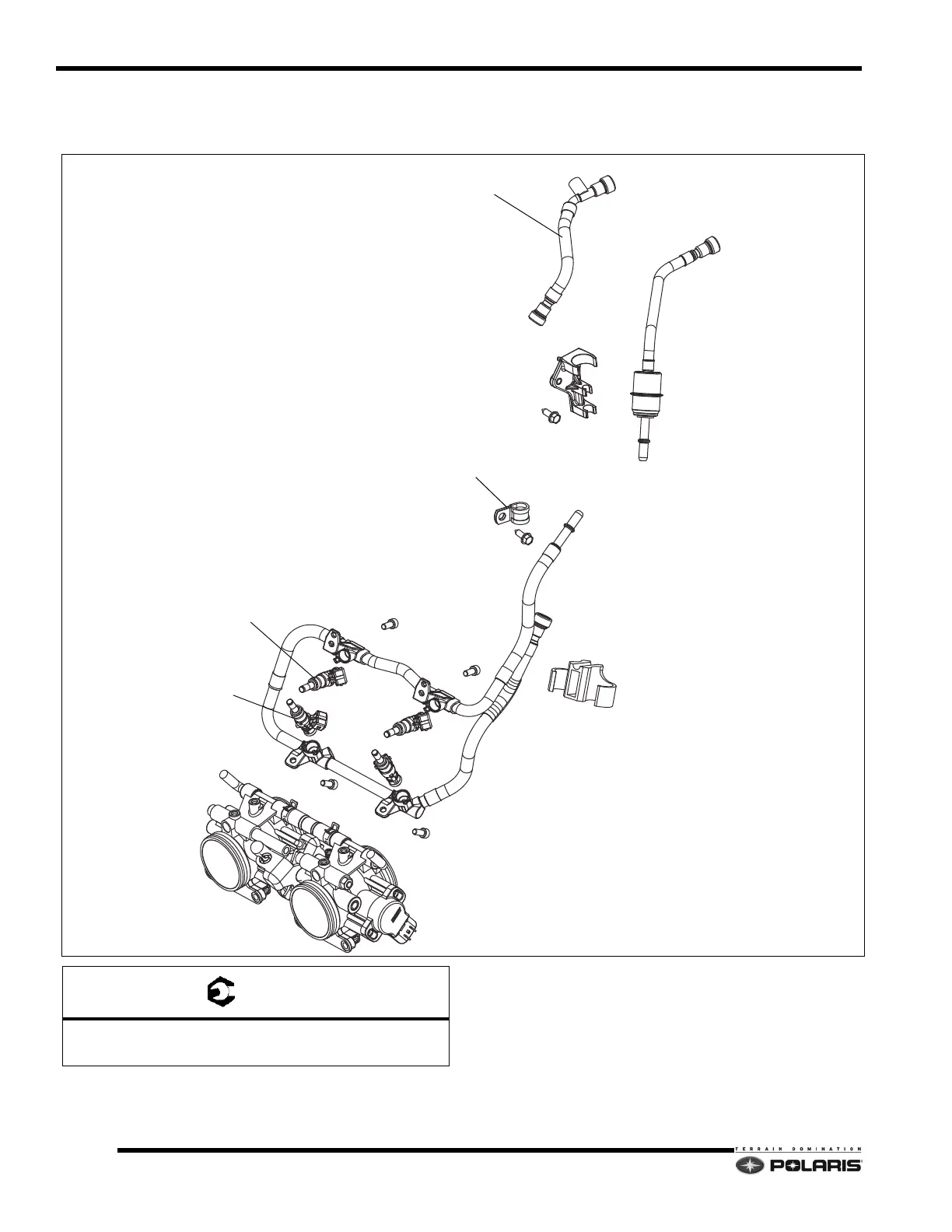

Fuel System Assembly
RETURN HOSE w/SCHRADER VALVE
SUPPLY HOSE w/FILTER
FILTER BRACKET
THROTTLE POSITION SENSOR (TPS)
CYLINDER (PORT) INJECTORS
CRANKCASE INJECTORS
P-CLAMP (INSTALLED UNDER FILTER BRACKET)
A
A
A
A
B
= T
A: 9 ft-lbs (12 Nm)
B: 1.5 ft-lbs (2 Nm) Position p-
clamp behind bracket.
