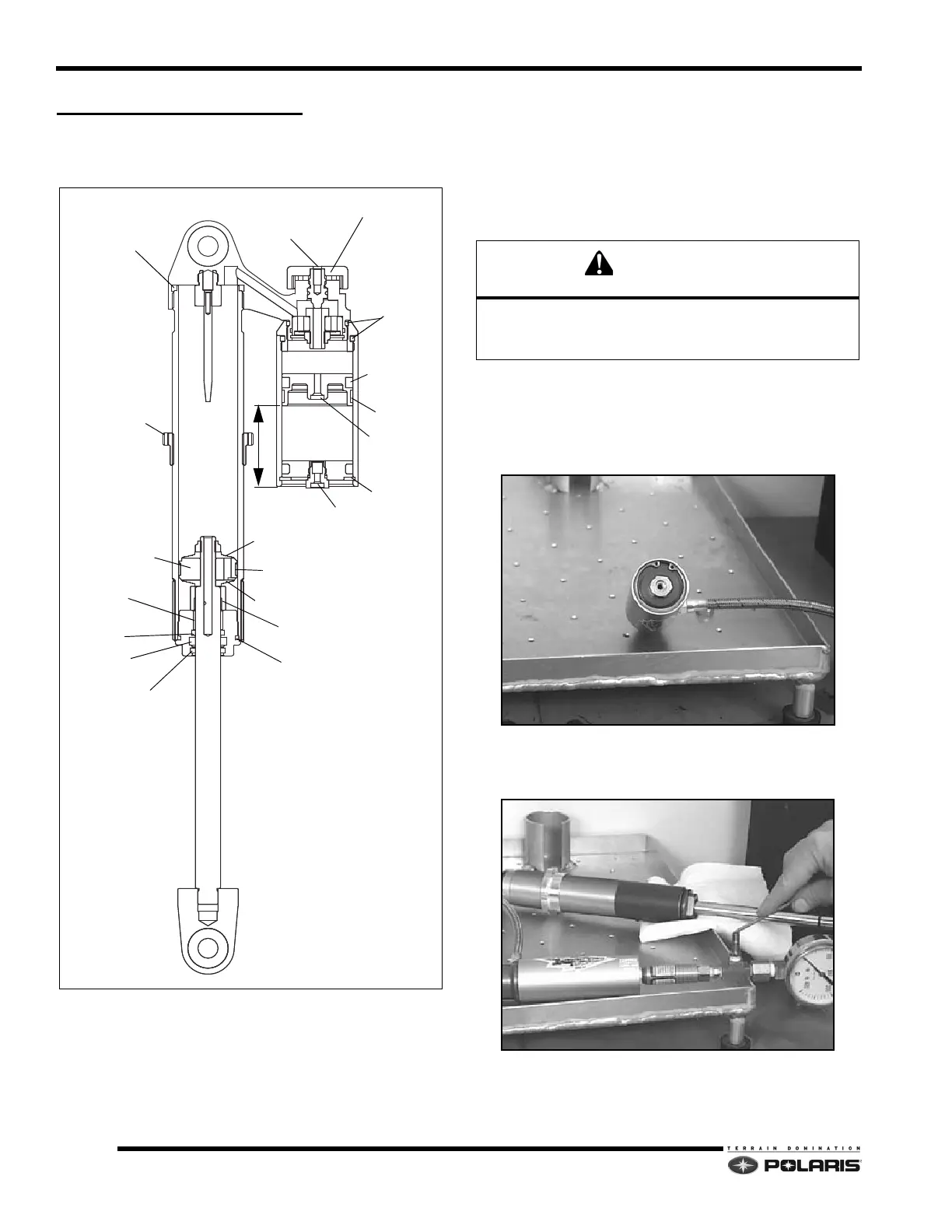

Shocks
SHOCK MAINTENANCE
Walker Evans™ Coil-Over Piggyback Shock
Walker Evans
™ Remote Reservoir /
Piggyback Shock Disassembly
NOTE: Remote reservoir shock shown.
IMPORTANT: To prevent damage or marks to the
sho
ck, the use of soft jaws on a vise is recommended.
1. Clean and carefully remove shock from the
su
spension.
2. Remove button head screw from reservoir cap (if
app
licable).
3. Insert safety needle carefully and depressurize the
s
hock.
SPRING RETAINER
SHOCK ROD
NEEDLE
WEARBAND
REBOUND STACK
COMPRESSION STACK
CONVEX PISTON
D WIPER
U CUP SEAL
O-RING
BUSHING
O-RING
O-RING
SHAFT SPACER
BUTTON SCREW
SNAP RING
IFP
O-RING
WEARBAND
O-RING
BLEED SCREW
COMPRESSION KNOB
SCREW
IFP DEPTH
CAUTION
SHOCK CONTENTS UNDER HIGH PRESSURE.
ALWAYS WEAR SAFETY GLASSES WHEN
WORKING WITH SHOCKS.

Polaris 600 RUSH 2010 Specifications

General

Horsepower	120 HP
Engine Displacement	599 cc
Cylinders	2
Cooling	Liquid
Bore x Stroke	77.25 mm x 64 mm
Fuel System	Cleanfire Injection
Ignition	Digital CDI
Front Suspension	PRO-RIDE
Rear Suspension	PRO-RIDE
Track Width	15 in
Track Lug Height	1.25 in
Front Travel	9 in
Ski Stance	42.5 in
Brake	Hydraulic Disc
Width	48 in
Starter	Electric
Drive Clutch	P-85
Track Length	121 in
Rear Travel	14 in
Ski Type	Gripper
Driven Clutch	TEAM
