8.19
Steering and Suspensions
8

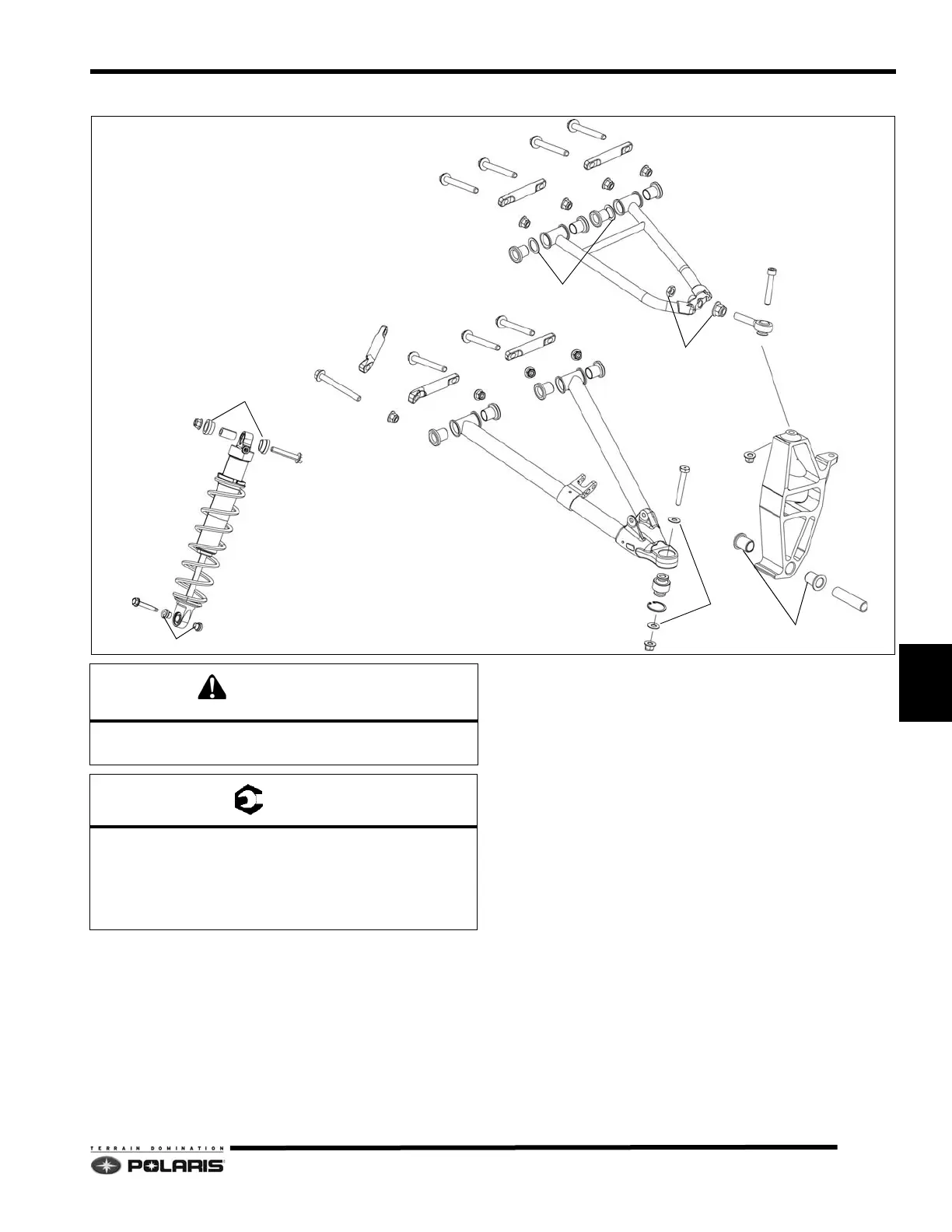

PRO RMK Bonded Front Control Arms
NOTE: Assembly Notes
• Sway bar mount and tube collector are bonded components - DO NOT SER
VICE.
• Orientate rod ends so they are parallel with mating component.
• Apply grease to pivot shaf
ts during assembly.
CAUTION
Never re-use lock nuts. Always re-assemble using new
lock nuts.
= T
A: 37 ft-lbs (50 Nm)
B: 40 ft-lbs (54 Nm)
C: 30 ft-lbs (41 Nm)
D: 44 ft-lbs (60 Nm) Apply Loctite® 262™ to Threads
E: 18 ft-lbs (25 Nm)
MOUNTING STUDS
MOUNTING STUDS
PIVOT SHAFTS
BUSHINGS
UPPER CONTROL ARM
LOWER CONTROL ARM
SPINDLE
BUSHINGS
SNAP RING
SPHERICAL BEARING
B
B
B
C
A
E
BUSHINGS
BUSHINGS
SPRING WASHERS
PIVOT SHAFTS
WASHERS
C
C
C
C
C
C
D
