4.35

Cleanfire Fuel Injection

Digital Wrench® Communication Errors

If you experience problems connecting to a vehicle or any

Digital Wrench® related problem, visit the Digital

Wrench® Knowledge Base for the most current

troubleshooting information, FAQs, downloads and

software updates at: http://polaris.diagsys.com/.

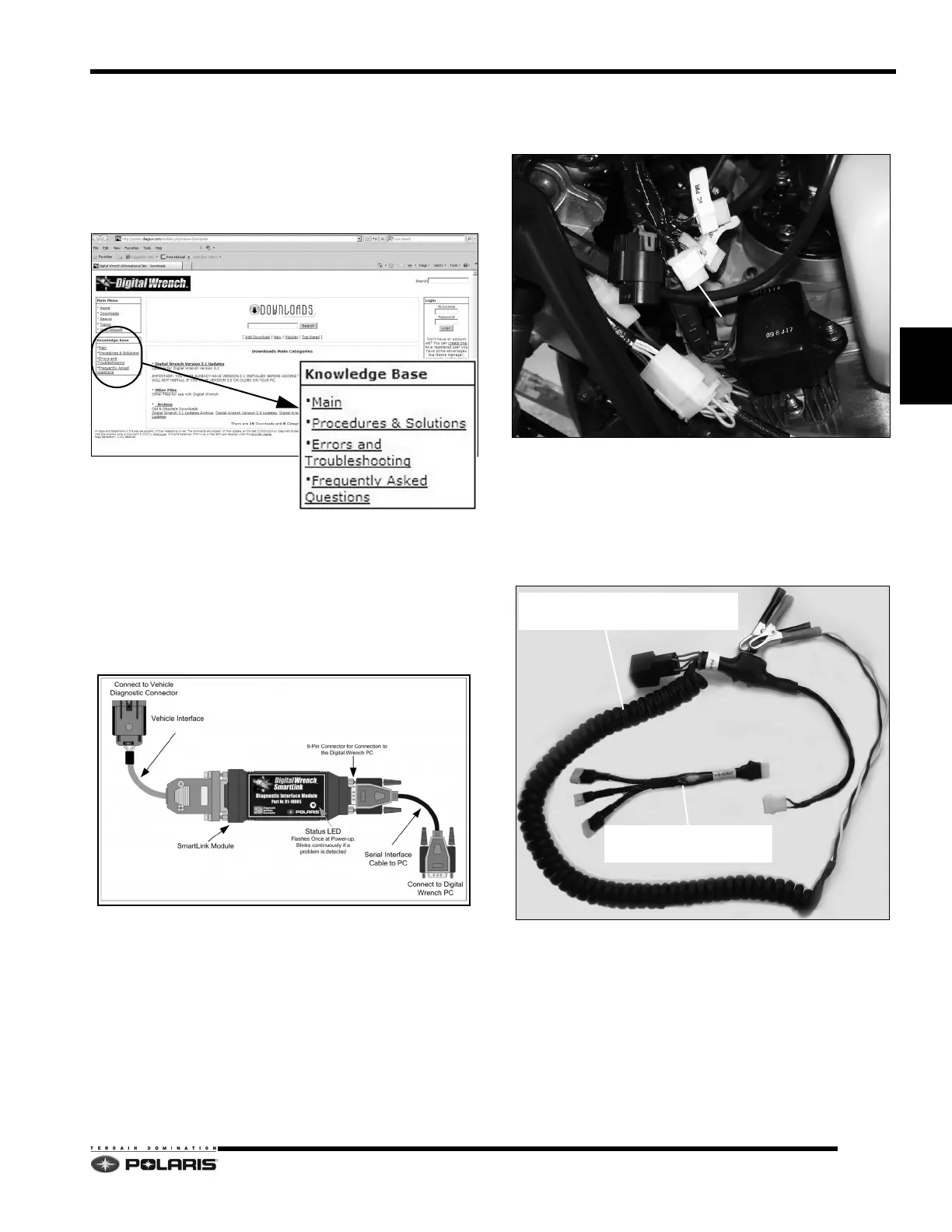

Digital Wrench® - Diagnostic / Power

Connectors

The diagnostic/power connectors are located behind the

left engine compartment door.

1. Assemble the SmartLink Module and attach the PC

Inter

face Cable to your PC/laptop.

2. Remove the protective cap from the Digital Wrench®

nnector (A) and then connect the Vehicle Interface

Cable to the diagnostic connector.

3. Connect the chassis power-up harness to a fully

cha

rged 12VDC battery. Connect the chassis power-

up harness to the ECU POWER connector.

NOTE: An internal relay within the harness prevents

reve

rse polarity damage in the event the alligator

clamps are connected to the battery incorrectly.

4. When battery power is connected successfully, the

SmartLink status

LED will blink on once.

ECU POWER

CHASSIS POWER-UP HARNESS

PS-47296-A

DUAL PWR/FUEL PUMP PRIME

PS-50805
