Polaris 600 RUSH 2010 User Manual

8.26
Steering and Suspensions

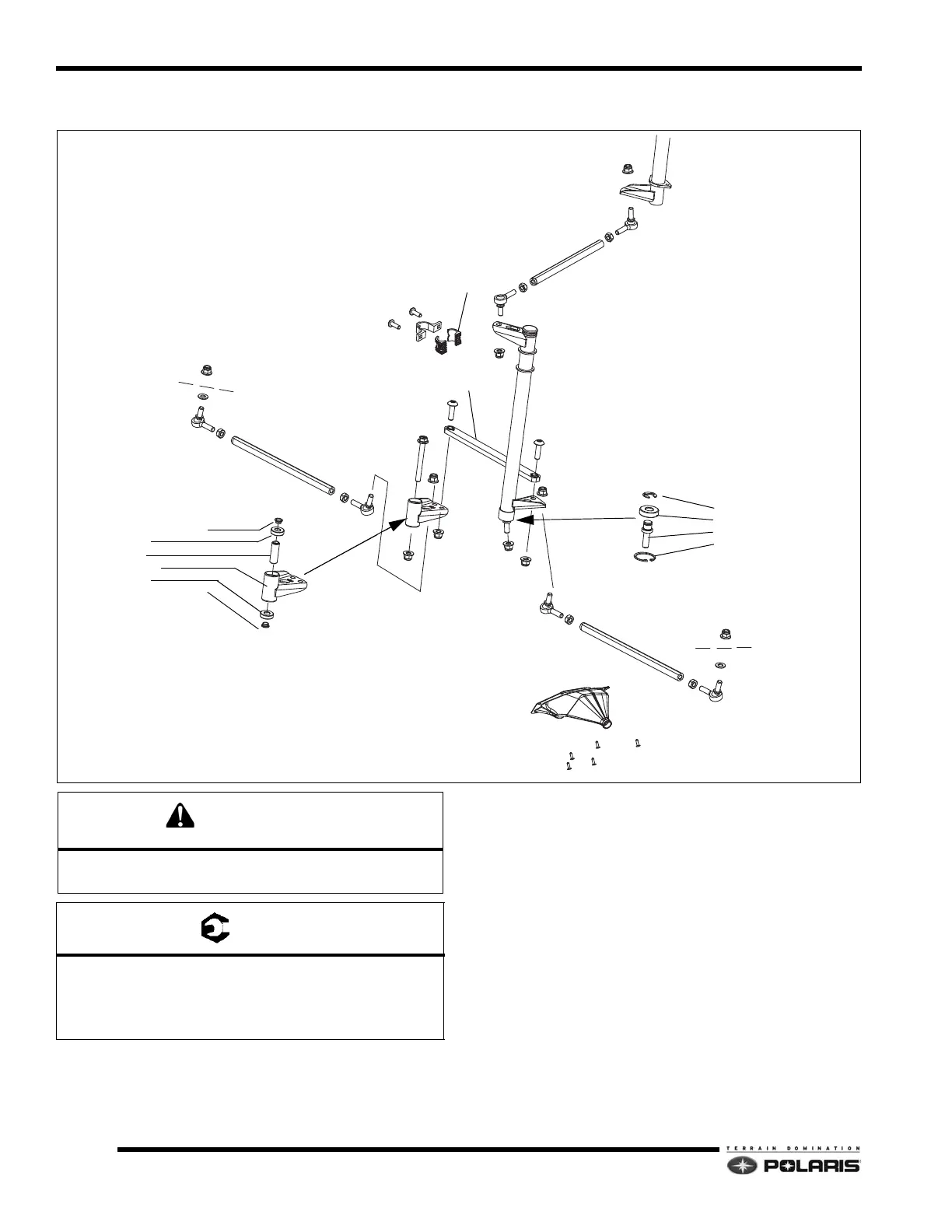

2010 Rush Lower Steering Assembly
NOTE: Assembly Notes
• Orientate rod ends so they are parallel with mating
comp
onent.
• Tie rod end-to-rod end (center-to-center) length
=1
5.04" (382mm)
• Upper drag link rod end-to-rod end (center-to-
cente
r) length = 11.71" (297.5mm)
FIXED LINK
LOWER STEERING POST
BUSHINGS
UPPER STEERING POST
UPPER DRAG LINK
TIE ROD
TIE ROD BOOT
TIE ROD
BUSHING REDUCER
POST BRACKET
ROD END
ROD END
ROD END
ROD END
A
B
B
B
B
B
B
B
C
C
C
C
C
C
B
B
D
BEARING
SPACER
IDLER ARM
BEARING
BUSHING REDUCER
RETAINING RING
BEARING
SPACER STUD
RETAINING RING
CAUTION
Never re-use lock nuts. Always re-assemble using new
lock nuts.
= T
A: 22 ft-lbs (30 Nm)
B: 37 ft-lbs (50 Nm)
C: 11 ft-lbs (15 Nm)
D: 14.7 ft-lbs (20 Nm)

Polaris 600 RUSH 2010 Specifications

General

Horsepower	120 HP
Engine Displacement	599 cc
Cylinders	2
Cooling	Liquid
Bore x Stroke	77.25 mm x 64 mm
Fuel System	Cleanfire Injection
Ignition	Digital CDI
Front Suspension	PRO-RIDE
Rear Suspension	PRO-RIDE
Track Width	15 in
Track Lug Height	1.25 in
Front Travel	9 in
Ski Stance	42.5 in
Brake	Hydraulic Disc
Width	48 in
Starter	Electric
Drive Clutch	P-85
Track Length	121 in
Rear Travel	14 in
Ski Type	Gripper
Driven Clutch	TEAM
