8.36
Steering and Suspensions

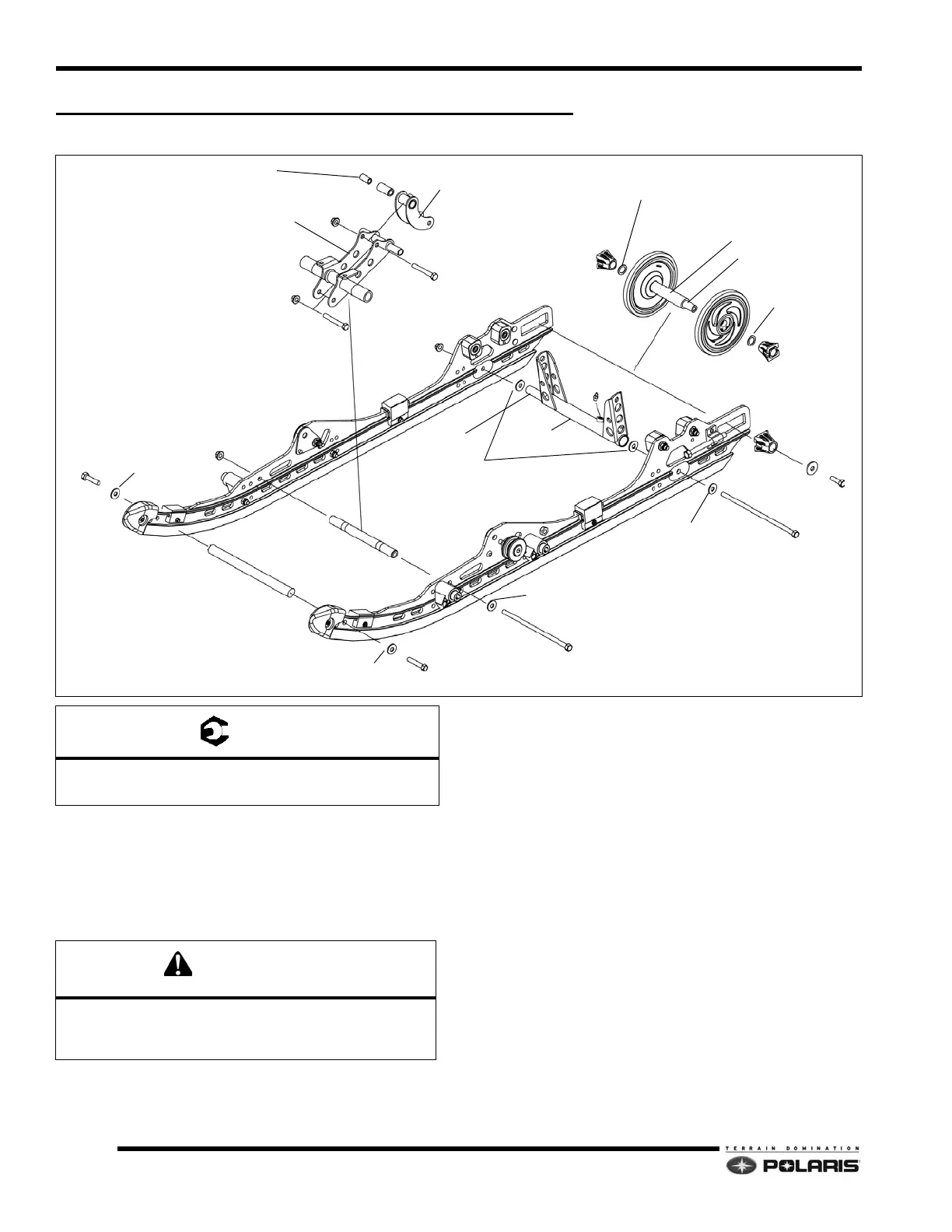

REAR SUSPENSION ASSEMBLY ILLUSTRATIONS
INDY 121 Conventional Pivots/Rear Idler
Assembly Notes
• Never re-use lock nuts. Always replace with new parts.
• All pivots must rotate freely after tightening fasteners.
• Install rear idler adjust spacers with flat side facing adjuster screw.
= T
A: 45 ft-lbs (61 Nm)
B: 35 ft-lbs (47.4 Nm)
CAUTION
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners.
STANDARD FASTENERS
SHAFT
SHAFT
H BRACKET
SHOCK PIVOT
SLEEVE
REAR PIVOT
WASHERS
INNER SHAFT
SPACER SHAFT
BUSHING
BUSHING
SPACER
SPACER
SPACER
WASHER
WASHER
WASHER
WASHER
WASHER
INNER SHAFT
A
A
B
B
B
B
B
