Polaris 600 RUSH 2010 User Manual

8.63
Steering and Suspensions
8

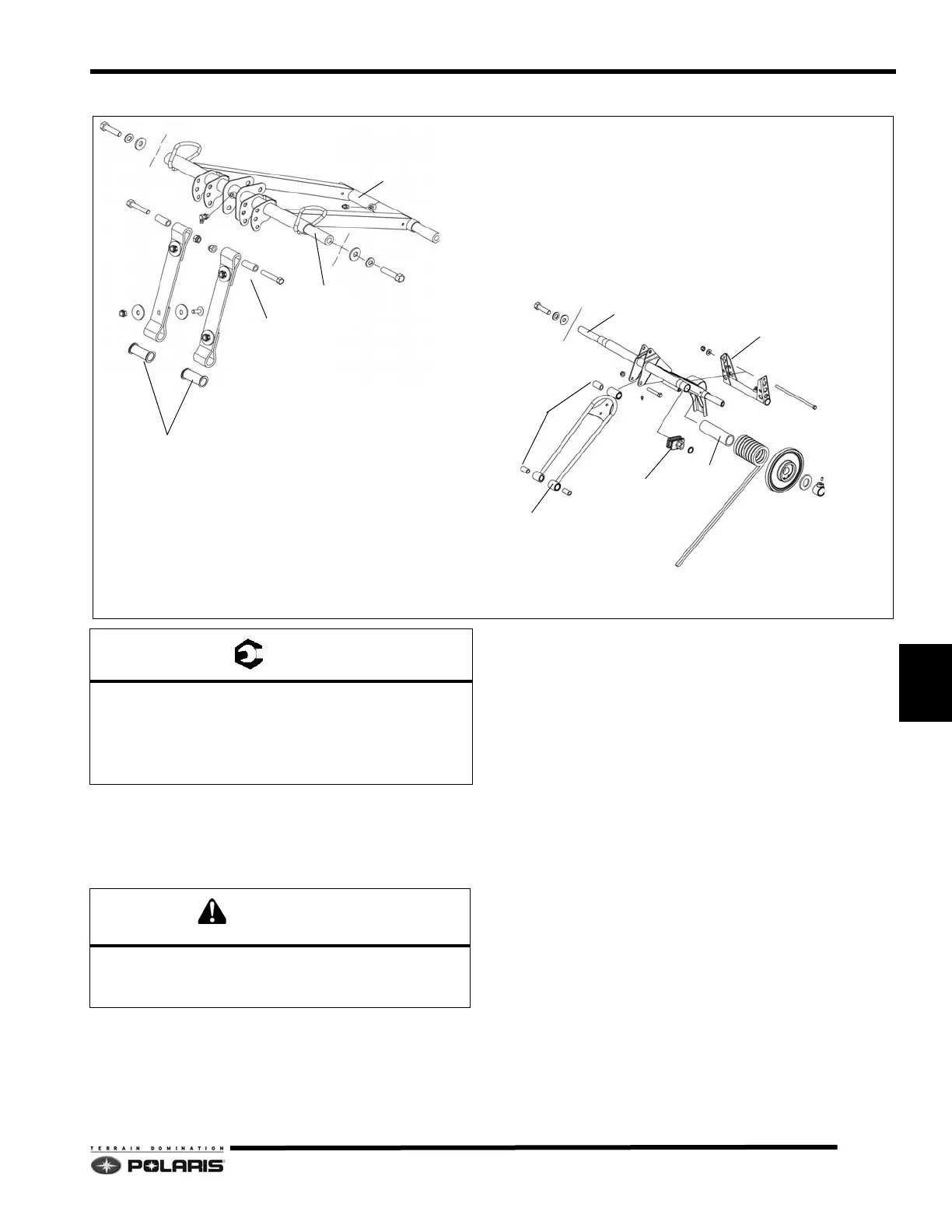

RMK 144/Switchback Assault Front/Rear Torque Arm
Assembly Notes
• Never re-use lock nuts. Always replace with new parts.
• All pivots must rotate freely after tightening fasteners.
= T
A: 45 ft-lbs (61 Nm)
B: 19 ft-lbs (25 Nm)
C: 12 ft-lbs (16 Nm)
D: 25 ft-lbs (34 Nm)
E: 35 ft-lbs (47.4 Nm)
CAUTION
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners.
CARRIER WHEEL
COLLAR
INNER SHAFT
FRONT TORQUE ARM
LIMITER STRAP SLEEVES
PIVOT SHAFT
BUSHING
BUSHING
BUSHINGS
A
A
B
C
B
TORSION SPRING
SPRING ADJUSTER
SHOCK ROD
INNER SHAFT
REAR PIVOT
A
D
E
E
STANDARD FASTENERS
INSTALL STRAPS RUBBER SIDE OUT
2012-2013 SWITCHBACK ASSAULT ONLY
LIMITER STRAP

Polaris 600 RUSH 2010 Specifications

General

Horsepower	120 HP
Engine Displacement	599 cc
Cylinders	2
Cooling	Liquid
Bore x Stroke	77.25 mm x 64 mm
Fuel System	Cleanfire Injection
Ignition	Digital CDI
Front Suspension	PRO-RIDE
Rear Suspension	PRO-RIDE
Track Width	15 in
Track Lug Height	1.25 in
Front Travel	9 in
Ski Stance	42.5 in
Brake	Hydraulic Disc
Width	48 in
Starter	Electric
Drive Clutch	P-85
Track Length	121 in
Rear Travel	14 in
Ski Type	Gripper
Driven Clutch	TEAM
