8.27
Steering and Suspensions
8

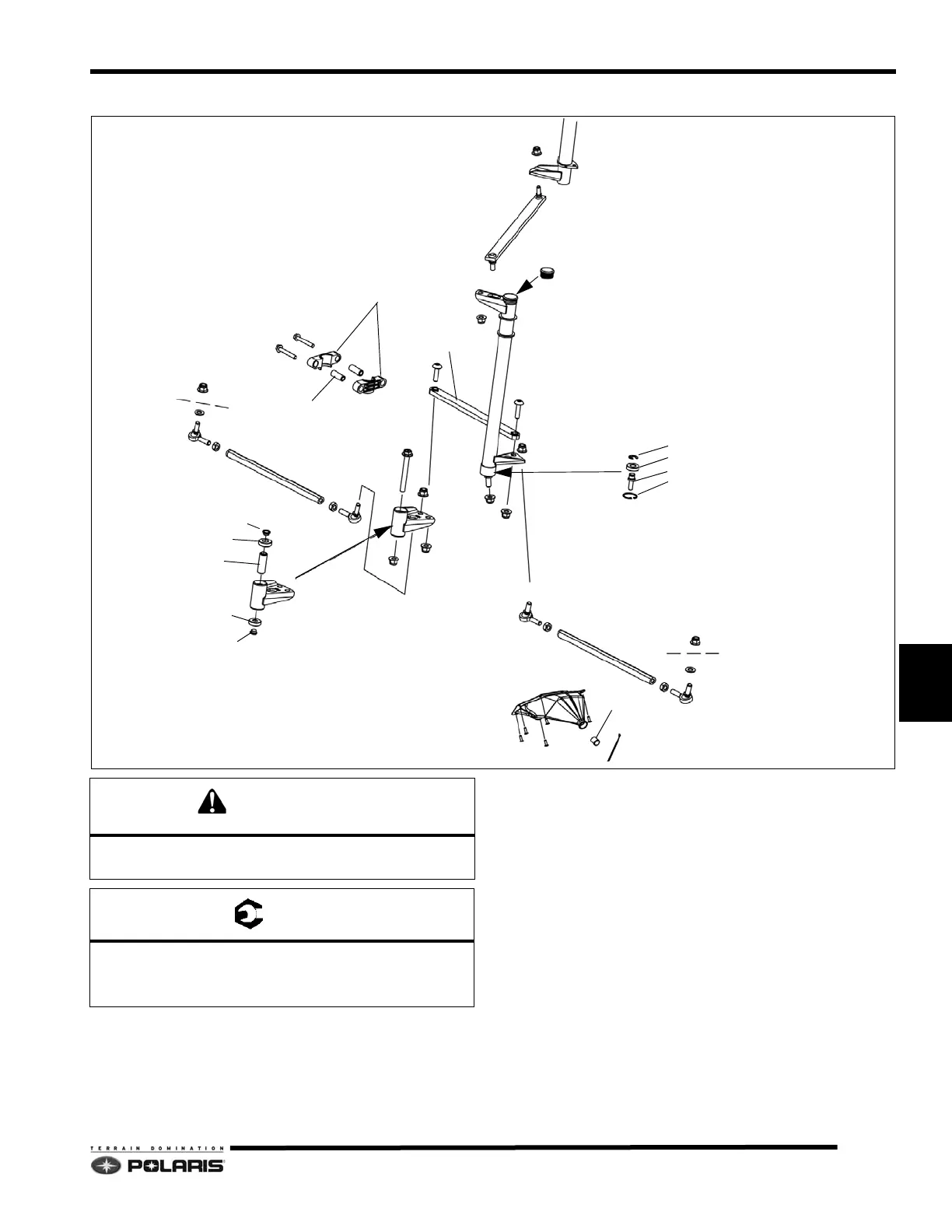

2011-2013 INDY/Rush/Switchback/Switchback Assault Lower Steering Assembly
NOTE: Assembly Notes
• Orientate rod ends so they are parallel with mating component.
• Tie rod end-to-rod end (center-to-center) length =15.04" (382mm)
CAUTION
Never re-use lock nuts. Always re-assemble using new
lock nuts.
= T
A: 22 ft-lbs (30 Nm)
B: 37 ft-lbs (50 Nm)
C: 11 ft-lbs (15 Nm)
FIXED LINK
LOWER STEERING POST
UPPER STEERING POST
FIXED DRAG LINK
TIE ROD
TIE ROD BOOT
TIE ROD
BEARING
BEARING
STEERING POST BUSHINGS
IDLER ARM
SPACER
ROD END
ROD END
POST CAP
ROD END
B
B
B
C
C
BUSHING REDUCER
BUSHING REDUCER
RETAINING RING
BEARING
SPACER STUD
RETAINING RING
BUSHING SPACERS
BUSHING
A
B
B
B
B
B
A
B
C
C
