Polaris 600 RUSH 2010 User Manual

8.43
Steering and Suspensions
8

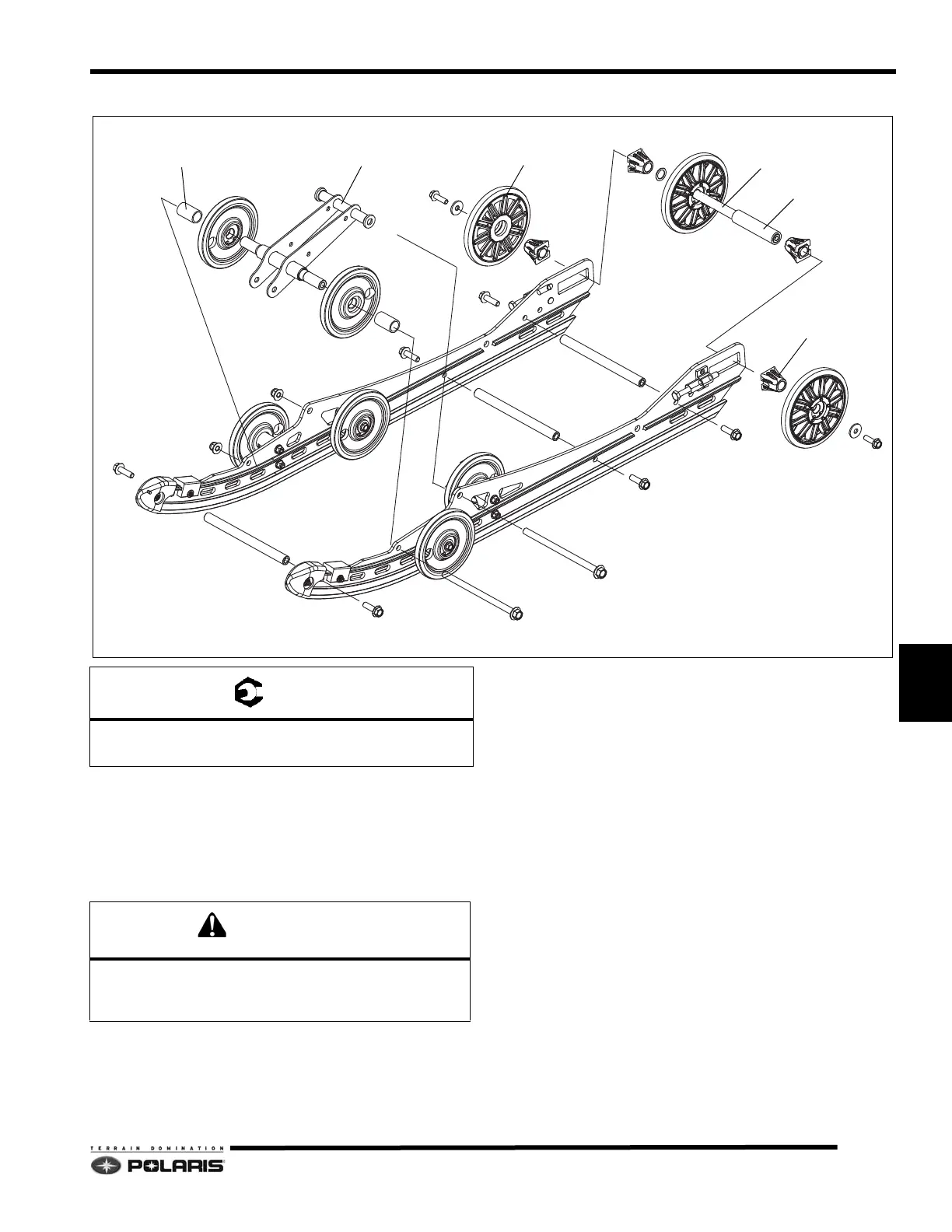

2010 Progressive 120 Idler Shaft Assembly
Assembly Notes
• Never re-use lock nuts. Always replace with new parts.
• All pivots must rotate freely after tightening fasteners.
• Install rear idler adjust blocks with flat side facing adjuster screw.
= T
A: 33 ft-lbs (45 Nm)
B: 60 ft-lbs (80 Nm)
CAUTION
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners.
INNER SHAFT
SPACER
ADJUSTER BLOCK
SHAFT
SHAFT
SHAFT
H BRACKET
WHEEL SPACERS
REAR IDLER WHEELS
A
A
A
B
A
A
A
A
A
A
METRIC FASTENERS

Polaris 600 RUSH 2010 Specifications

General

Horsepower	120 HP
Engine Displacement	599 cc
Cylinders	2
Cooling	Liquid
Bore x Stroke	77.25 mm x 64 mm
Fuel System	Cleanfire Injection
Ignition	Digital CDI
Front Suspension	PRO-RIDE
Rear Suspension	PRO-RIDE
Track Width	15 in
Track Lug Height	1.25 in
Front Travel	9 in
Ski Stance	42.5 in
Brake	Hydraulic Disc
Width	48 in
Starter	Electric
Drive Clutch	P-85
Track Length	121 in
Rear Travel	14 in
Ski Type	Gripper
Driven Clutch	TEAM
