ENGINE ASSEMBLY - BOTTOM END
CRANKSHAFT INSTALLATION
NOTICE
The water pump cross-shaft assembly and snap ring
must be installed in the lower crankcase half prior to
installing the crankshaft and crankcase.

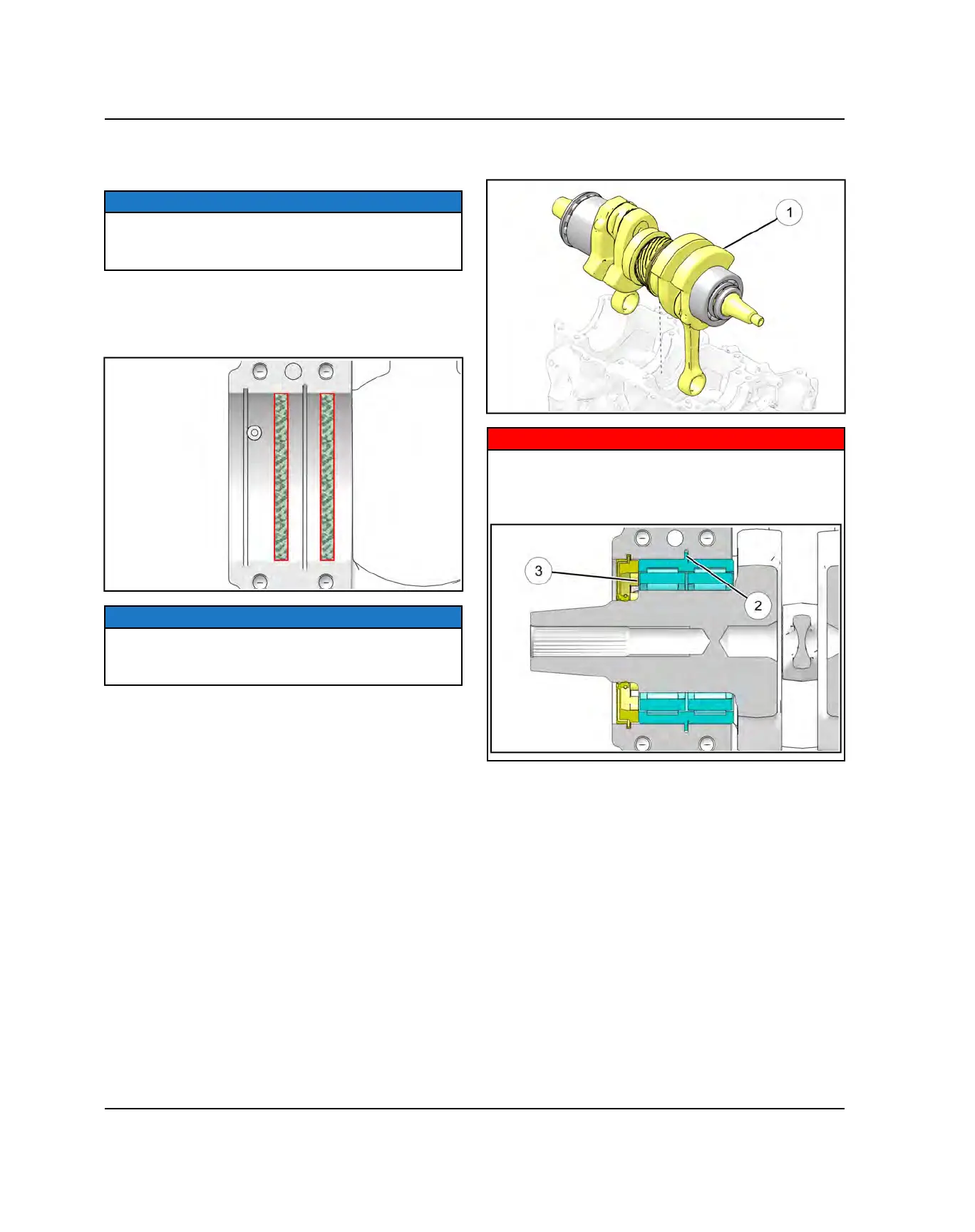

1. With the crankcase halves clean, apply a light coat of
green Loctite 603 using a foam brush to the PTO
bearing cavity of the upper crankcase half in the
locations shown.
NOTICE
Do not over-apply Loctite in oil injector area. Doing so
may block the oil passage. Keep Loctite out of the snap
ring groove.
2. Install the crankshaft
q
into the upper crankcase
using two new crankcase seals.
STOP!
During installation, make sure the PTO bearing snap
ring
w
is installed in the groove of the crankcase and
the outer race of the PTO bearing is against the
standoff feature of the seal
e
.
