AIR INTAKE TUBE INSTALLATION

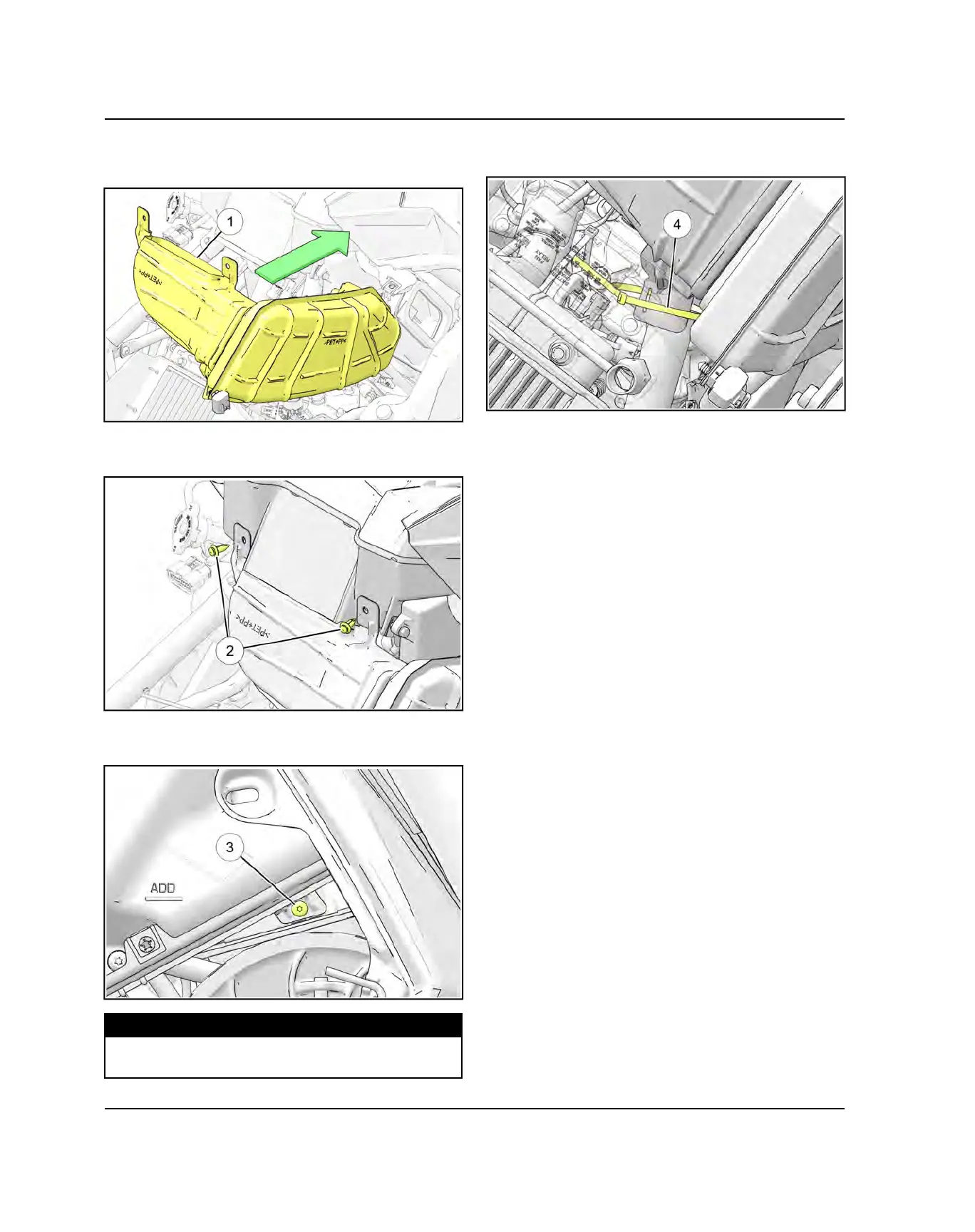

1. Carefully install the intake tube
q
as an assembly.
2. Install the push rivets
w
retaining the intake tube to
the intake plenum.
3. Install the fastener
e
retaining the lower intake tube.
Torque the fastener to specification.
TORQUE
Lower Intake Tube Fastener:
3 ft-lbs (4 Nm)
4. Install a new ziptie
r
to secure the upper intake tube
to the chassis.
5. Install the spare belt holder.
6. Install the side panels and hood.
