RELAYS

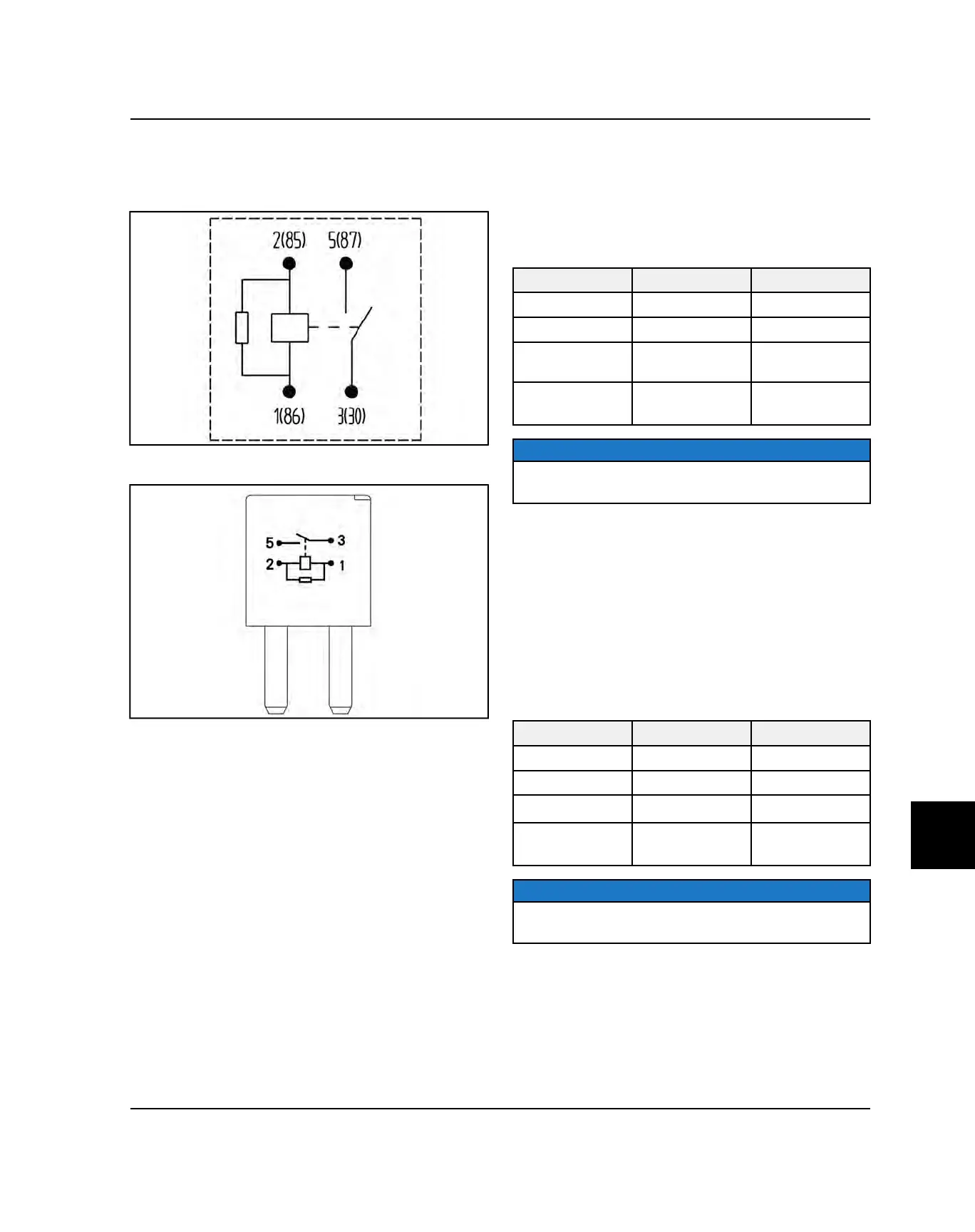

RELAY OVERVIEW
Top of Relay
Side of Relay
BATTERY CHARGE RELAY
The Battery Charge Relay is located in the load center.
This relay provides the following:
• Battery charge control
PIN
WIRE COLOR FUNCTION
D4 RD
Critical Power
C4 RD / WH Chassis Power
D5
RD / YE
Battery charge
Power
C5 OG / DG Battery Charge
Relay Control
NOTICE
If relay is removed for service, re-install with a drop of
NyoGel on each connector blade.
EV LEARN RELAY
The EV Learn Relay is located in the load center. This
relay provides the following:
• Gauge PWR test connector
• Instrument cluster / IDD power
• EV actuator / PWM converter power
• Brake / Taillight power
PIN
WIRE COLOR FUNCTION
D8 RD
Critical Power
C8
RD
Critical Power
D9
RD / BK
EV Relay Power
C9 GY / YE
EV Actuator
Relay Control
NOTICE
If relay is removed for service, re-install with a drop of
NyoGel on each connector blade.
