Polaris 850 SKS 155 2020

9
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
9.3
CHASSIS ASSEMBLY VIEWS

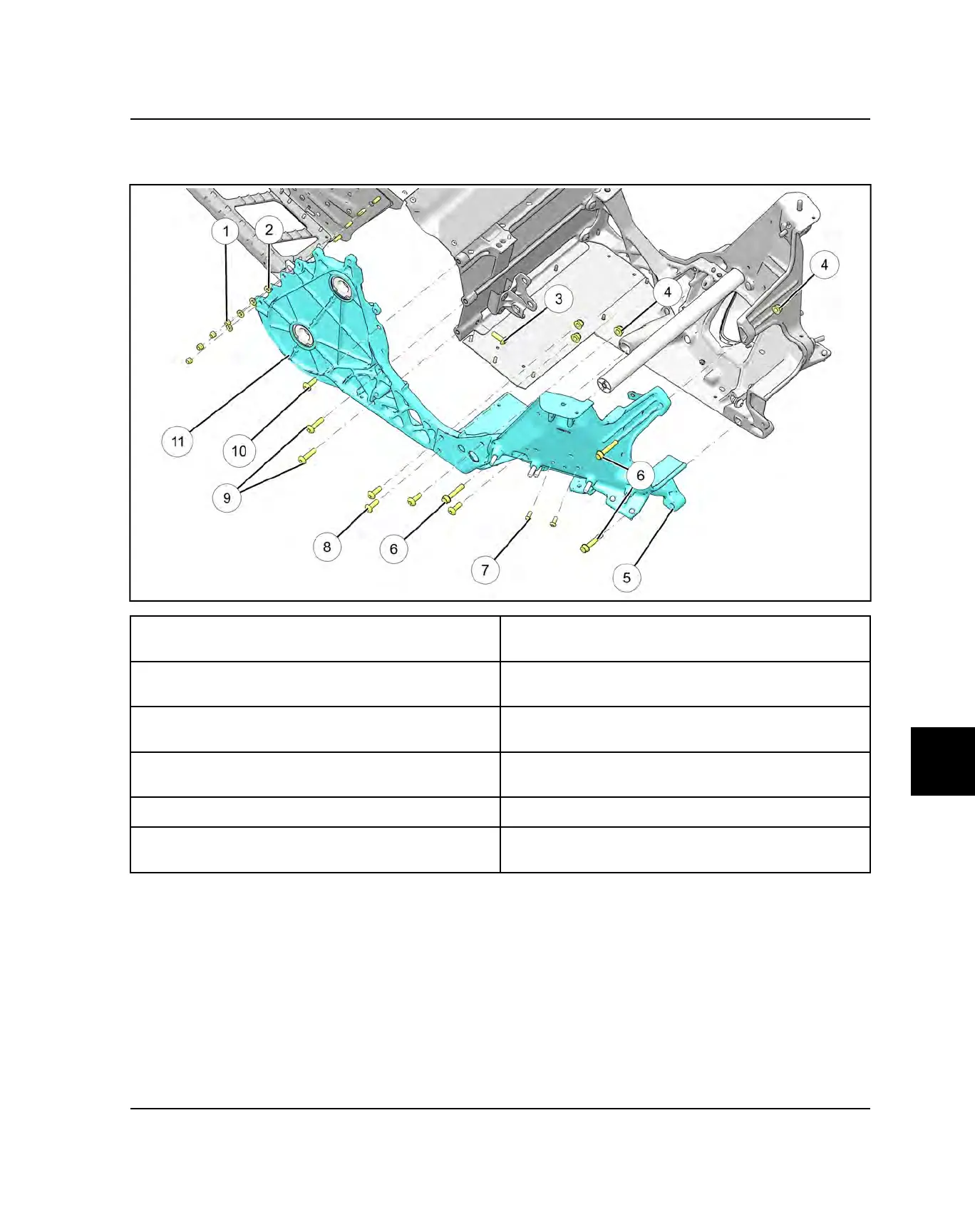

RIGHT BULKHEAD / CHAINCASE ASSEMBLY VIEW
q
Flange Nut
9 ft-lbs (12 Nm)
u
Fastener (M6 x 1.0 x 15)
9 ft-lbs (12 Nm)
w
Washer
i
Fastener (M8 x 1.25 x 25)
26 ft-lbs (35 Nm) Replace with new when removed.
e
Fastener ( M8 x 1.25 x 25 / Patch Lock)
26 ft-lbs (35 Nm) Replace with new when removed.
o
Fastener (M8 x 1.25 x 35 / Patch Lock)
26 ft-lbs (35 Nm) Replace with new when removed.
r
Flange Nuts (M8 x 1.25)
26 ft-lbs (35 Nm) Replace with new when removed.
a
Fastener (M8 x 1.25 x 25 / Patch Lock)
26 ft-lbs (35 Nm) Replace with new when removed.
t
Right Bulkhead Clip Assembly
s
Chaincase Housing
y
Fastener (M8 x 1.25 x 45)
26 ft-lbs (35 Nm) Replace with new when removed.
CHASSIS
