WALKER EVANS PIGGYBACK SHOCK –
ASSEMBLY
WARNING
Shocks contain high pressure nitrogen gas. Extreme
caution must be used while handling and working with
shocks and related high pressure service equipment.
Wear safety glasses and ear protection during these
procedures.
NOTICE
To prevent damage or marks to the shock, the use of
soft jaws on a vise is recommended. Perform work in
clean environment. Always discard used O-rings and
wear bands. discard used shock oil into appropriate
container.
1. Obtain new shock oil and new O-rings / wear bands
for the components removed from the shock.

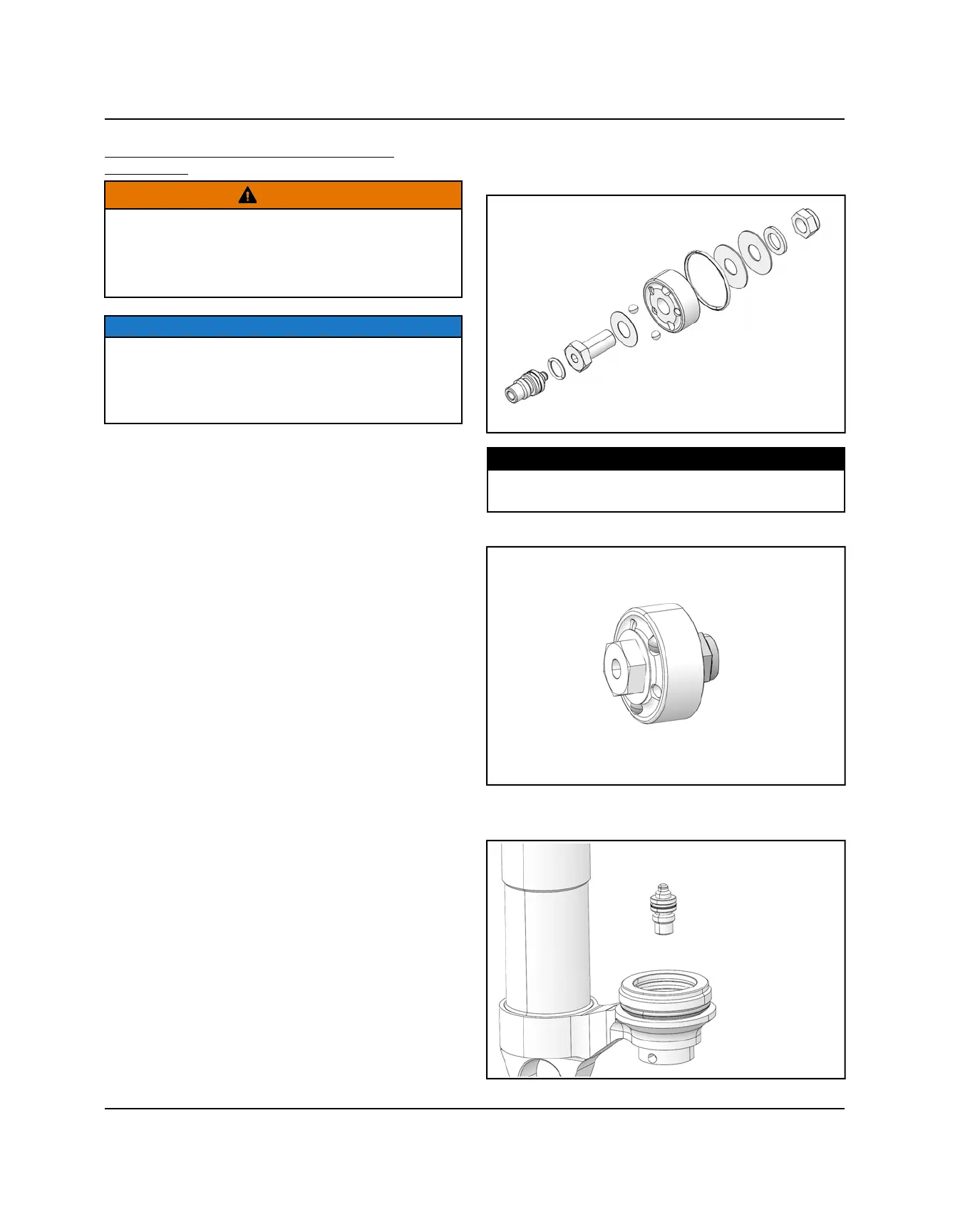

2. If the clicker assembly was removed from the body
cap, reassemble the clicker components. Tighten nut
to specification.
TORQUE
Clicker Assembly Nut:
10 ft-lbs (14 Nm)
Clicker Adjuster Assembled:
3. Install a new O-ring onto the clicker stud. Reinstall
back into body cap.
