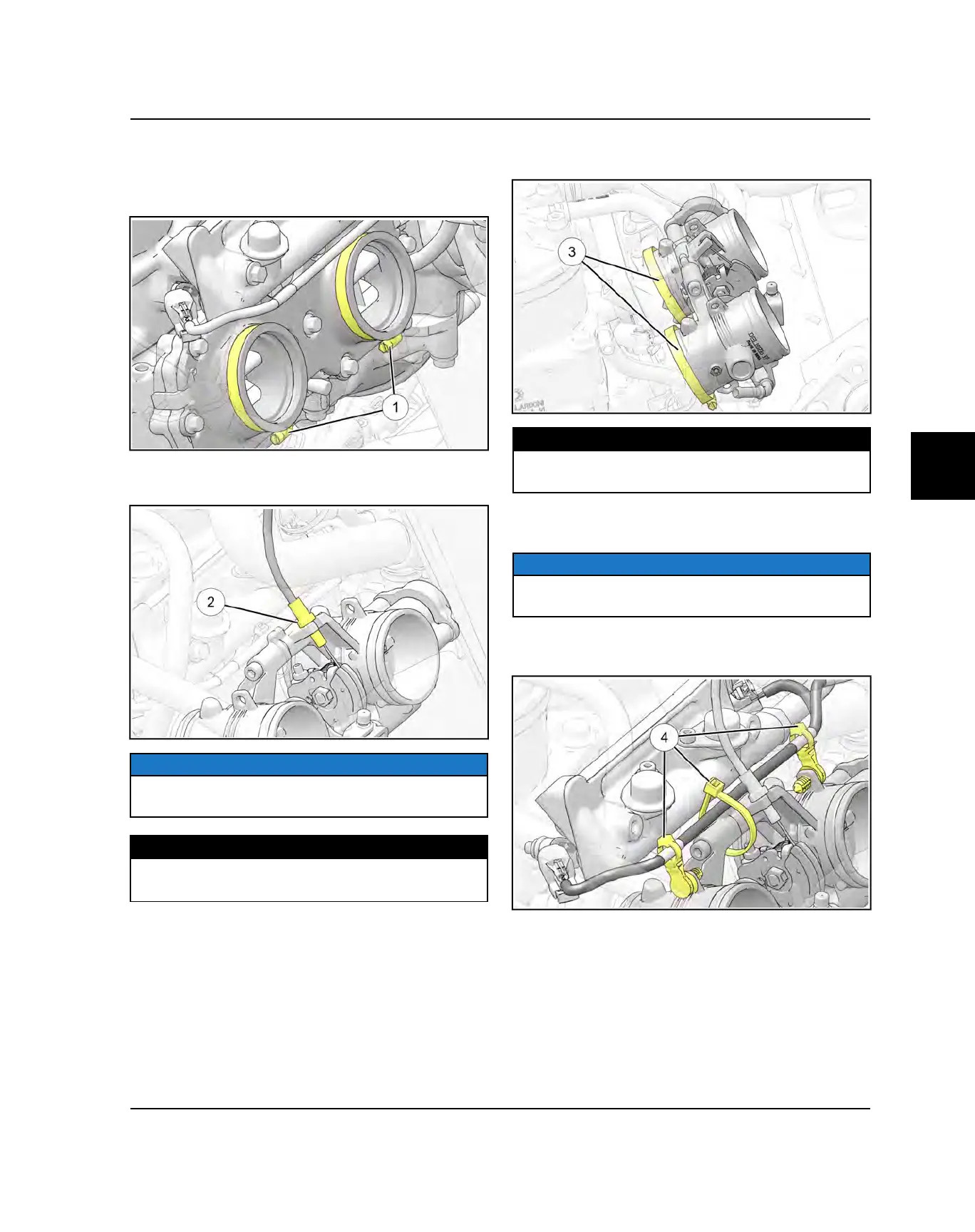

THROTTLE BODY INSTALLATION
1. Prior to installing the throttle body, verify the throttle
body adapter plate gear clamps
q
are positioned as
shown.
2. Reinstall the throttle cable. Tighten throttle cable lock
nut
w
to specification.
NOTICE
Turn the throttle cable in-line adjuster to full length
(clockwise) prior to cable installation.
TORQUE
Throttle Cable Lock Nut:
44 in-lbs (5 Nm)
3. Reinstall the throttle body into the adapter plate.
Tighten gear clamps
e
to specification.
TORQUE
Throttle Body Adapter Plate Gear Clamps:
11 in-lbs (1.24 Nm)
4. Reconnect the TPS sensor harness connector. Loop
the harness upward and secure with cable tie.
NOTICE
For additional routing information, see TPS Wire
Routing page 4.17.
5. Secure the fuel injector wire harness to the throttle
body using new cable ties
r
.
