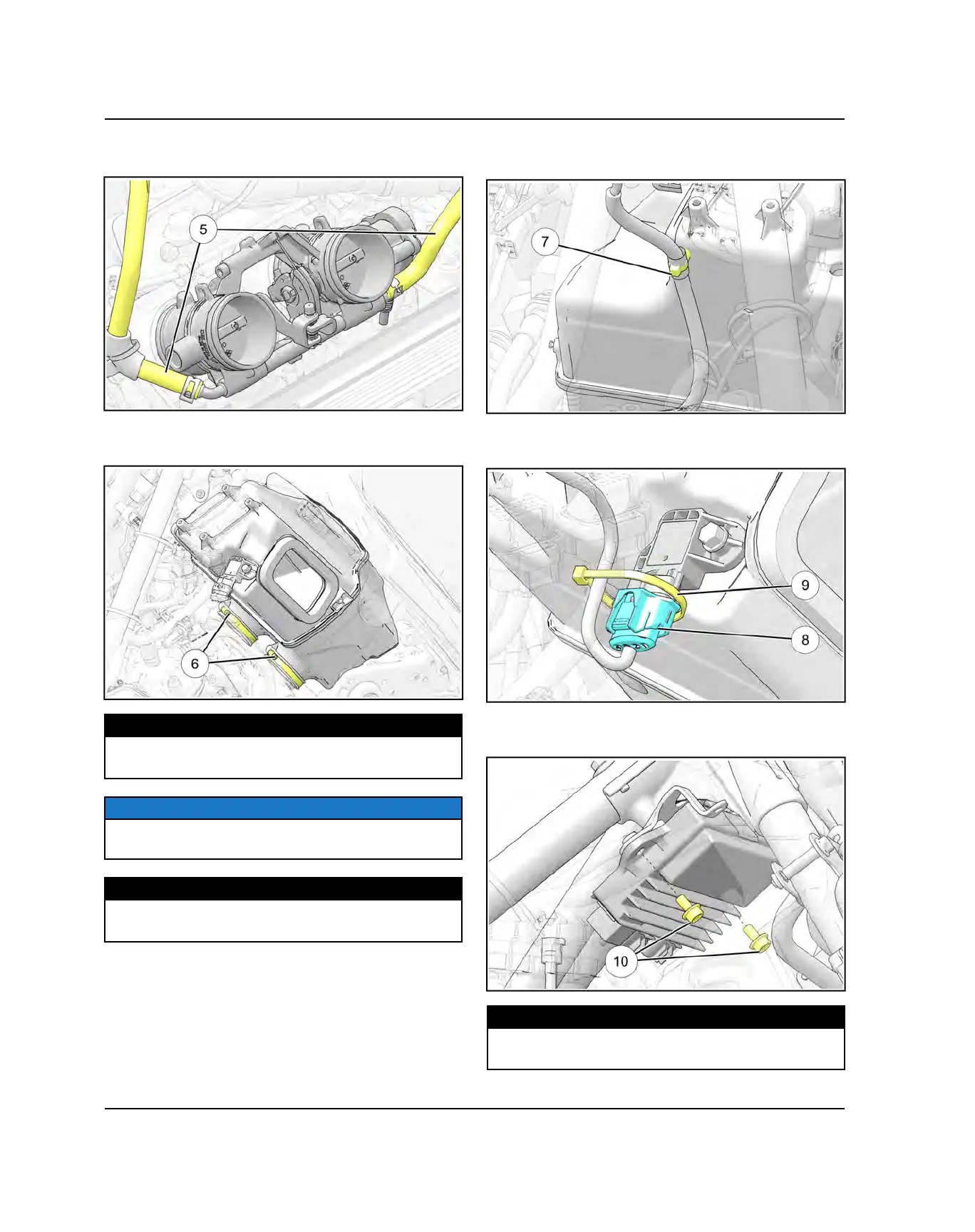

6. Reinstall the throttle body coolant supply and return
hoses
t
.
7. Reinstall the air box assembly. Tighten air box-to-
throttle body gear clamps
y
to specification.
TORQUE
Air Box Throttle Body Gear Clamps:
11 in-lbs (1.24 Nm)
NOTICE
If the ignition coils were removed, reinstall the ignition
coils and torque fasteners to specification.
TORQUE
Air Box Coil Fasteners:
36 in-lbs (4 Nm)
8. Install new cable tie on air box routing clip
u
to
secure the stator wiring harness.
9. Connect the T-MAP Sensor
i
to the wiring harness
and install new cable tie
o
to secure wiring.
10.Slide the PBR back onto bracket and align mounting
holes. Install the two fasteners
a
and to specification.
TORQUE
PBR Fasteners:
6 ft-lbs (8 Nm)
