10
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
10.45

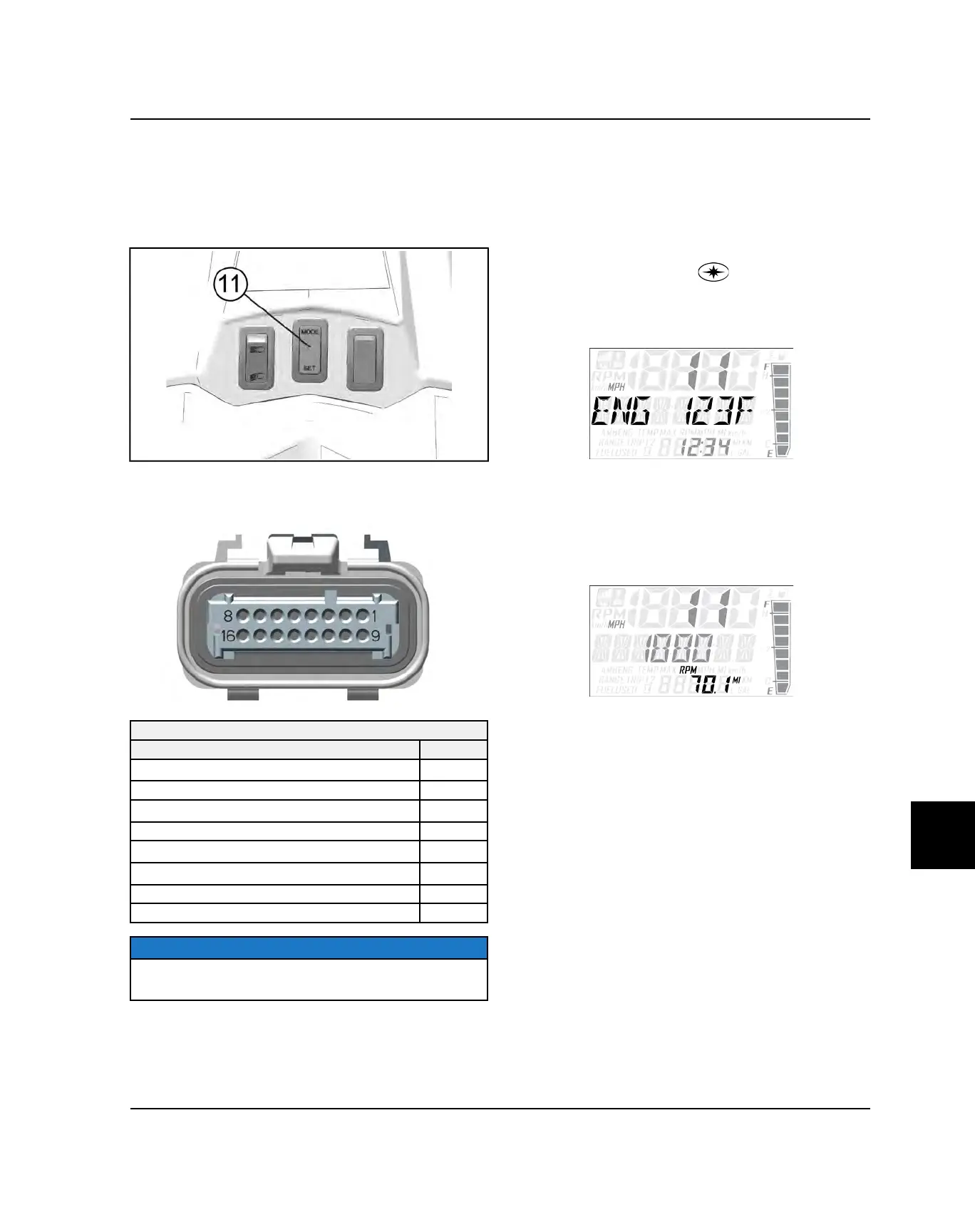

MODE / SET SWITCH
The instrument cluster contains indicator lights and the
rider information center. The information center can be
controlled by either the MODE and SET buttons on the
instrument cluster or by the MODE/SET switch
s
on the
console.
INSTRUMENT CLUSTER PINOUTS
INSTRUMENT CLUSTER PINOUTS
FUNCTION PIN
CAN High - YELLOW
1
CAN Low - DK GREEN 2
DC Gauge Voltage (VDC) - RD/BK
4
Ground - BRN/WHT
5
High Beam Signal - YEL/RED
8
Fuel Level - VT/WHT (If applicable)
11
LH Set Switch - WHT/BLK 12
LH Mode Switch - WHT/RED 13
NOTICE
CAN wires are twisted together and must remain
twisted to prevent interference.
CHANGING UNITS
The odometer and temperature displays can be viewed
in either standard or metric units of measurement. Both
displays change if units are changed. The new settings
will remain until changed by the operator.
Change Method 1
1. Press and hold the center
button on the
instrument cluster to enter the Options Menu.
2. Press and release the MODE button until engine
temperature appears in the information display area.
3. Press and release the SET button or SET switch to
change units.
Change Method 2
1. Press and release the SET button or SET switch until
the odometer appears in the information display area.
2. Press and hold the SET button or SET switch until the
units change.
BATTERY / ELECTRICAL
