10.26
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.

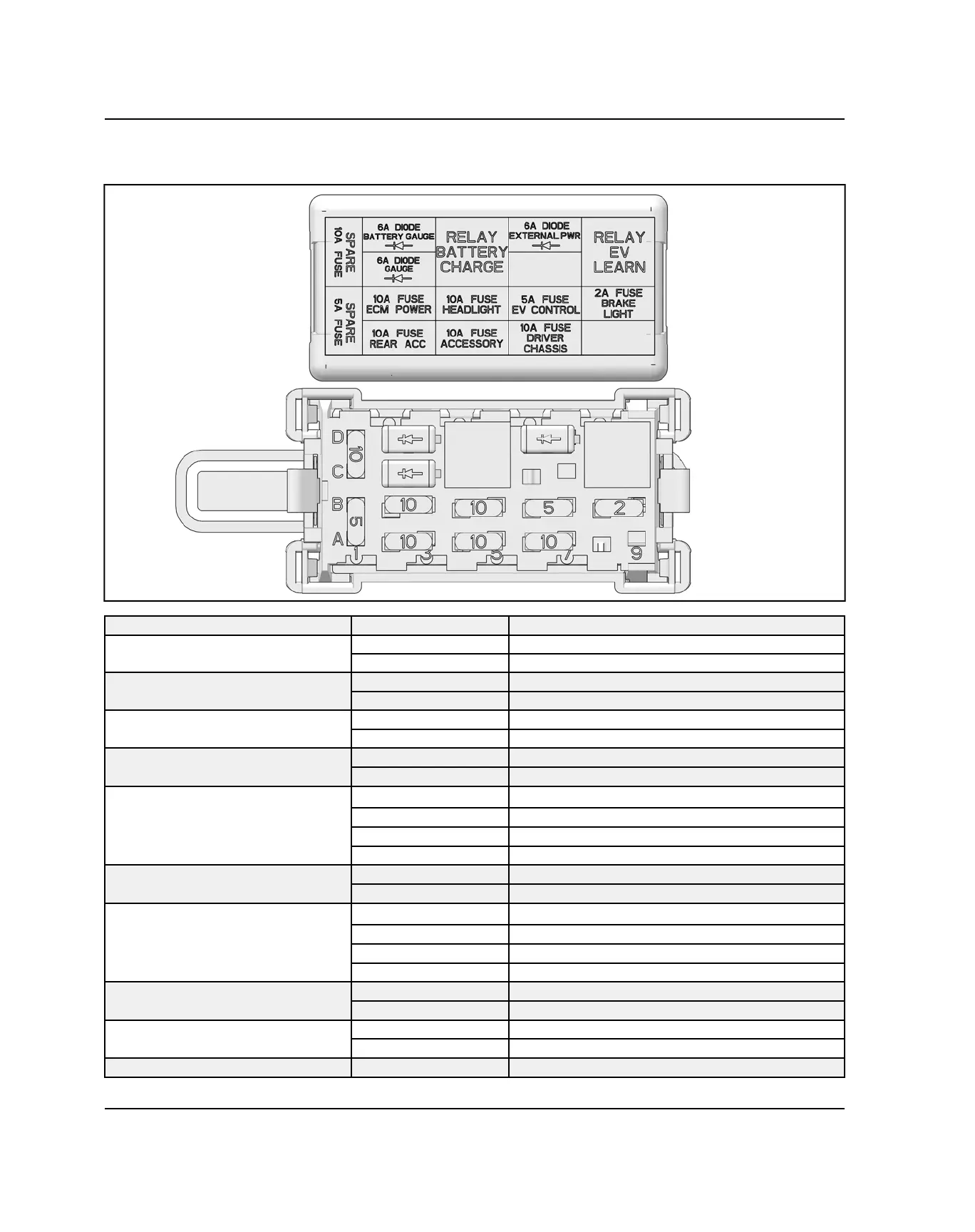

LOAD CENTER
LOAD CENTER DETAILS - 2020 TO CURRENT
CIRCUIT PIN FUNCTION
Spare 5A Fuse
A1
—
B1
—
Spare 10A Fuse
C1
—
D1
—
Battery 6A Diode
D2 Power In
D3 Power Out
Gauge 6A Diode
C2 Power In
C3 Power Out
Battery Charge Relay
D4
Coil High
C4 Power In
D5 Power Out
C5 Coil Low
External PWR 6A Diode
D6 Power In
D7 Power Out
EV Learn Relay
D8
Coil High
C8 Power In
D9 Power Out
C9 Coil Low
ECM Power 10A Fuse
B2 Power In
B3 Power Out
Headlight 10A Fuse
B4 Power In
B5
Power Out
EV Control 5A Fuse B6 Power In
BATTERY / ELECTRICAL
