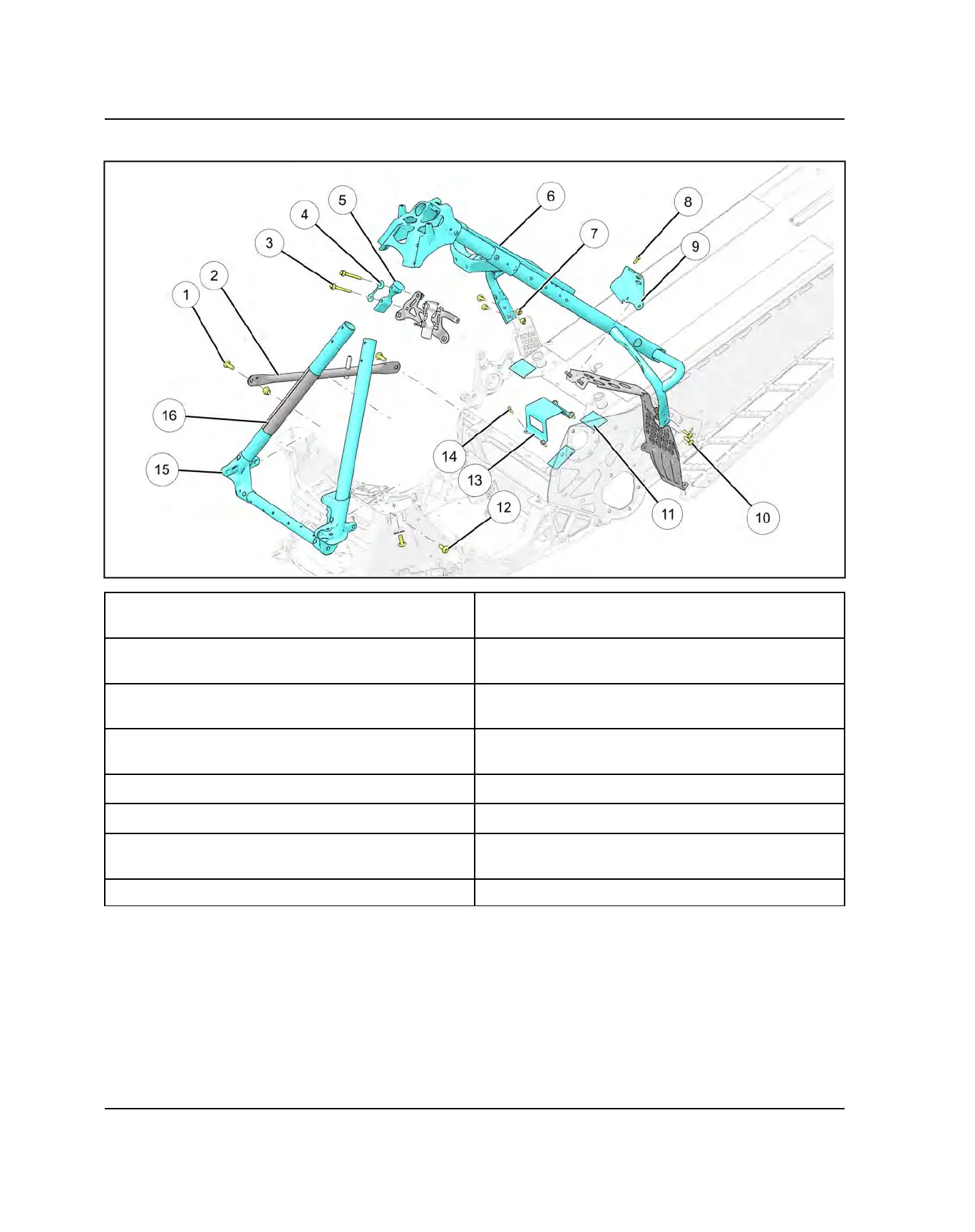

OVER STRUCTURE ASSEMBLY VIEW
q
Fastener (M8 x 1.25 x 25)
22 ft-lbs (30 Nm)
o
Support Bracket
w
Cross Brace
a
Fastener (M6 x 1.0 x 22)
9 ft-lbs (12 Nm)
e
Fastener (M6 x 1.0 x 55)
12.5 ft-lbs (17 Nm)
s
Foam Pad
r
Shim Tube
d
Fastener (M8 x 1.25 x 25)
22 ft-lbs (30 Nm)
t
Spacer Tube
f
Airbox Support Bracket
y
Rear Frame (Over Structure)
g
Rivet
u
Flange Nut (M6 x 1.0)
9 ft-lbs (12 Nm)
h
Front Frame (Over Structure)
i
Rivet
j
Foil
CHASSIS
