CHAINCASE VENT LINE ROUTING
NOTICE
Images for reference only.

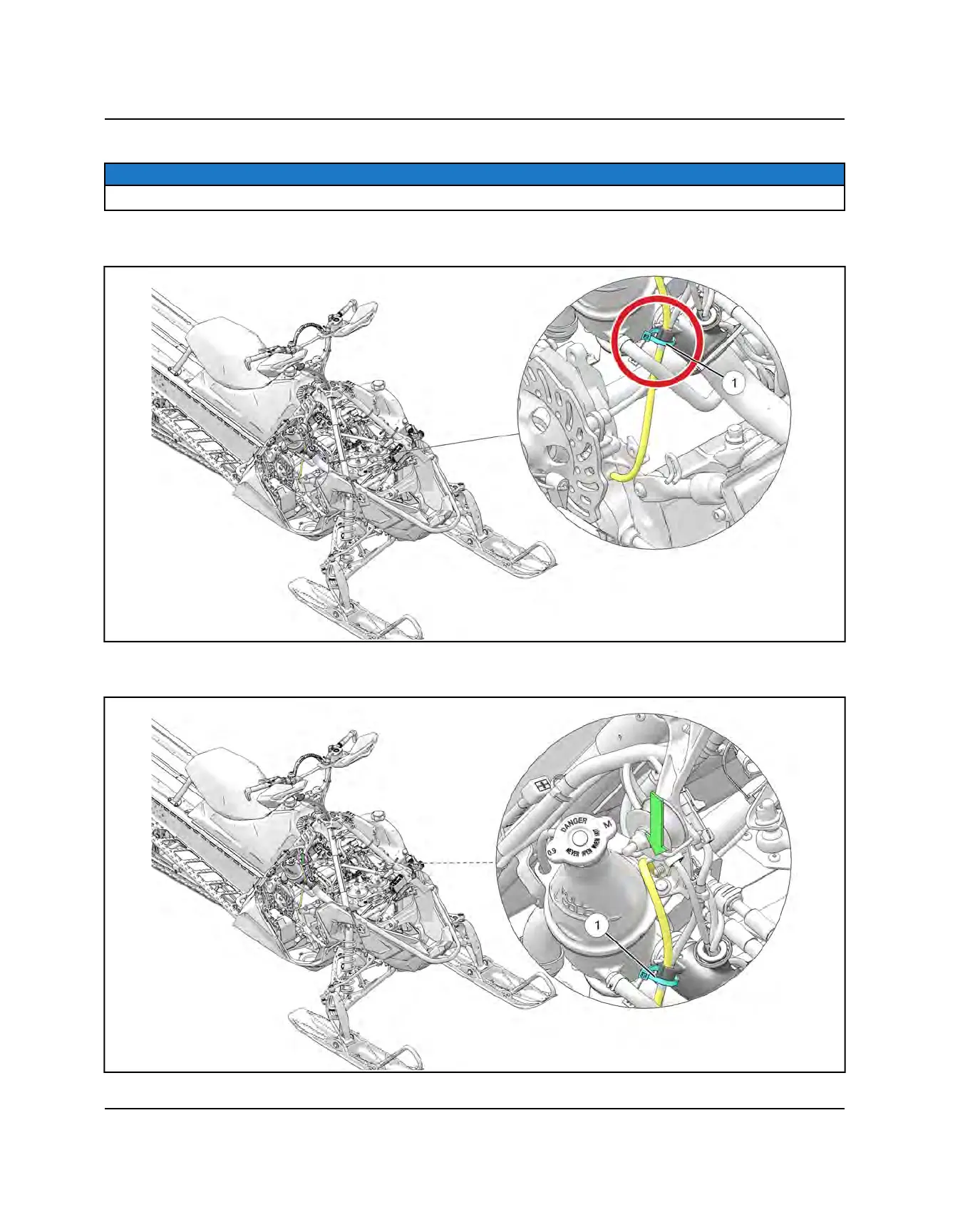

1. Route the chaincase vent line from the chaincase vent fitting and under the coolant hose. Secure the chaincase
vent line in the location shown below
q
.
2. Route the chaincase vent line under the recoil roller and behind the coolant bottle. The chaincase vent line should
be tucked between the mounting bracket and coolant bottle as shown below.
