9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
8.29

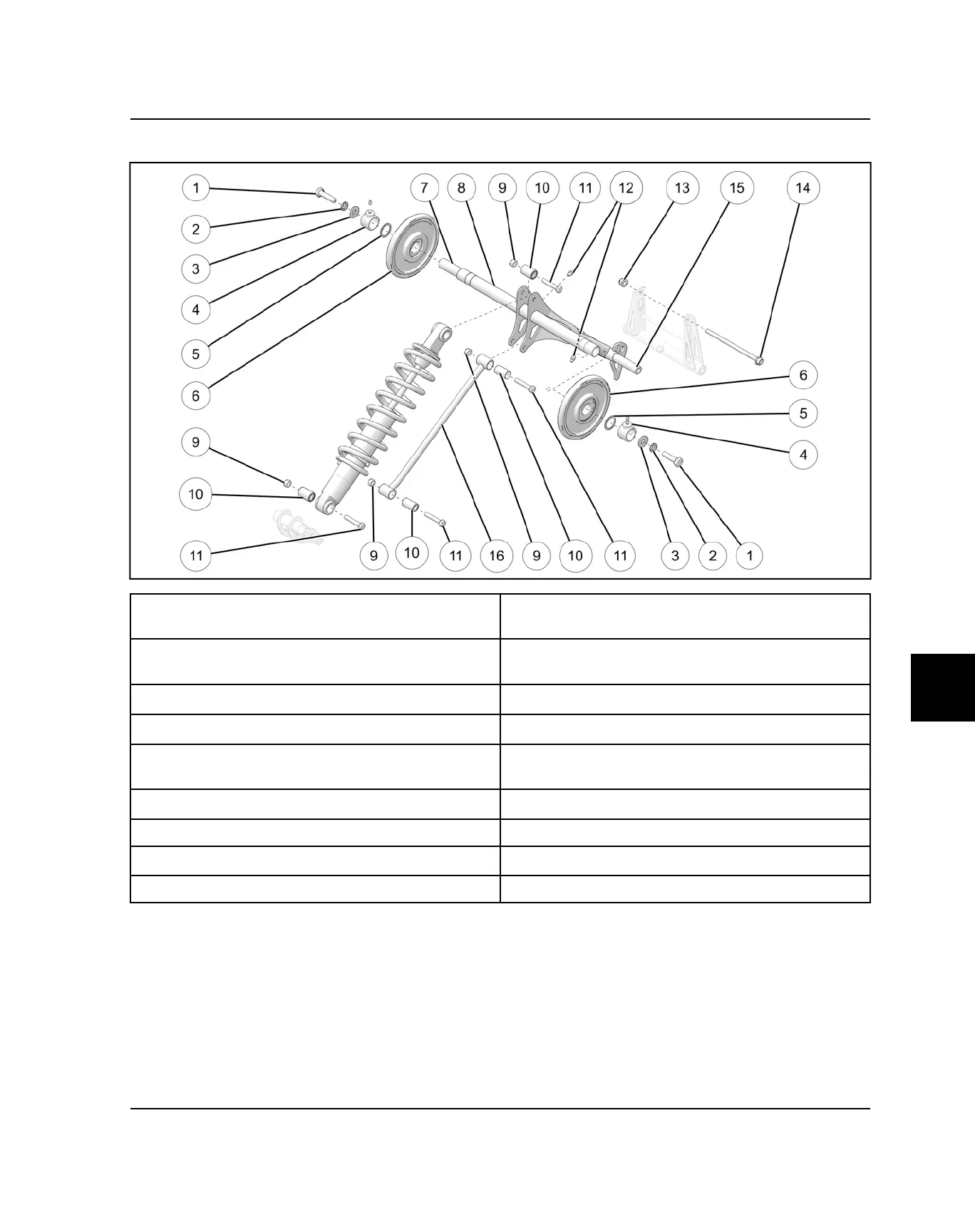

RMK REAR TORQUE ARM ASSEMBLY VIEW
q
Screw (M10 x 40)
47 ft-lbs (64 Nm)
a
Bushing
w
Spring Lock Washers
s
Screw
33 ft-lbs (44.7 Nm)
e
Washers
d
Lubrication Fittings
r
Spacer / Set Screw
f
Flange Nut
t
Spring Washer
g
Screw (M8 x 1.25 x 150)
17 ft-lbs (23 Nm)
y
Bogie Wheel Asm.
h
Shaft
u
Hollow Shaft
j
Shock Rod
i
Rear Torque Arm
— Rear Track Shock
o
Nut
STEERING / SUSPENSIONS
