ELECTRIC START / BATTERY BRACKET

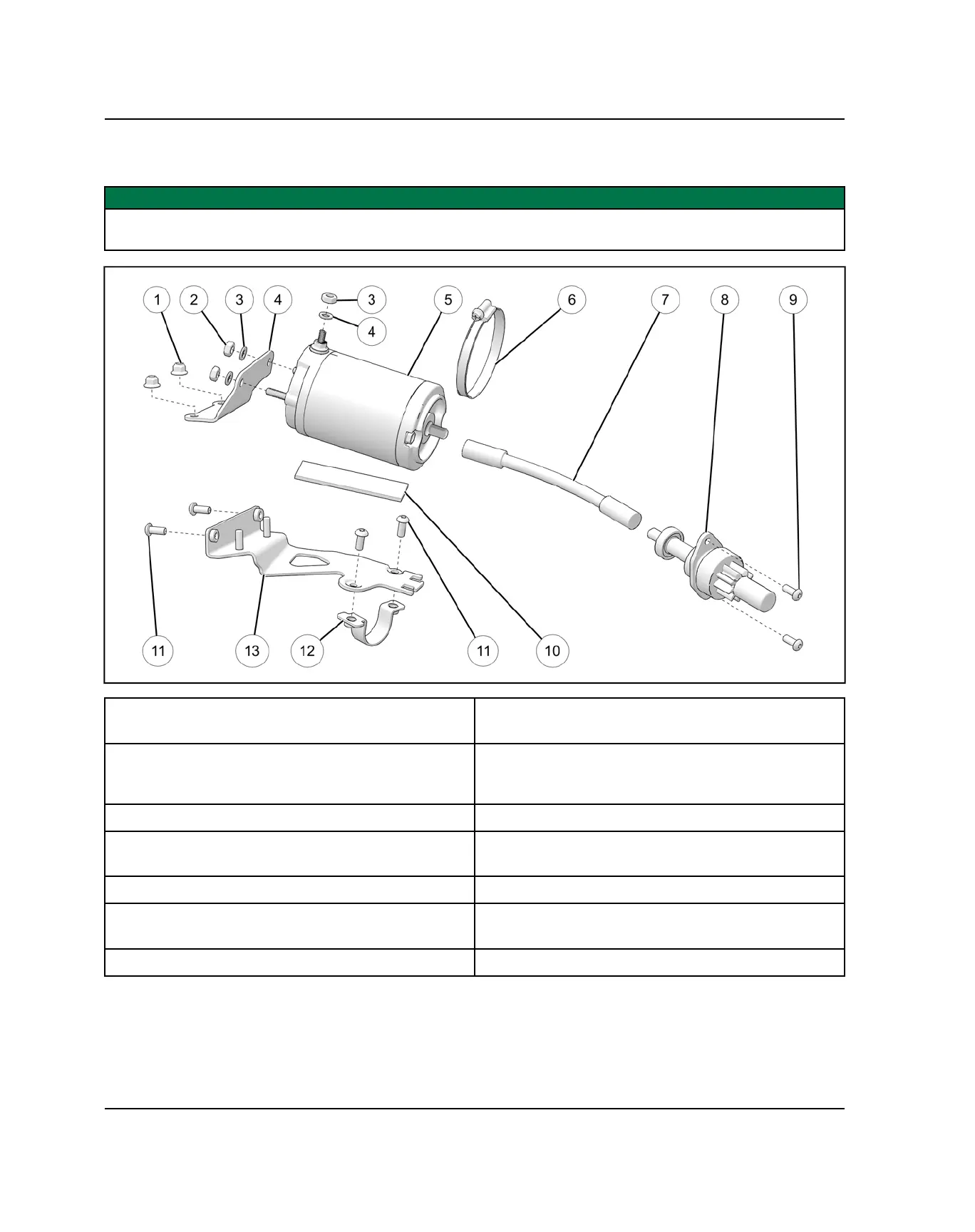

STARTER MOTOR / FLEX DRIVE ASSEMBLY VIEW
IMPORTANT
Disconnect battery before servicing starter motor components. Always remove BLACK (-) battery cable first, and then
RED (+) cable. Reverse order during battery installation.
q
Nut
8 ft-lbs (11 Nm)
i
Pinion Assembly
w
Nut
8 ft-lbs (11 Nm)
o
Pinion / Bracket Fasteners
7 ft-lbs (10 Nm)
Replace with new when removed
e
Lock Washer
a
Rubber Pad
r
Electric Start / Clip Bracket
s
Electric Start Bracket Fasteners
7 ft-lbs (10 Nm)
t
Starter Motor
d
Electric Start Lower Tube Bracket
y
Gear Clamp
Do not over-tighten / strip teeth
f
Electric Start Upper Tube Bracket
u
Starter Flex Shaft
