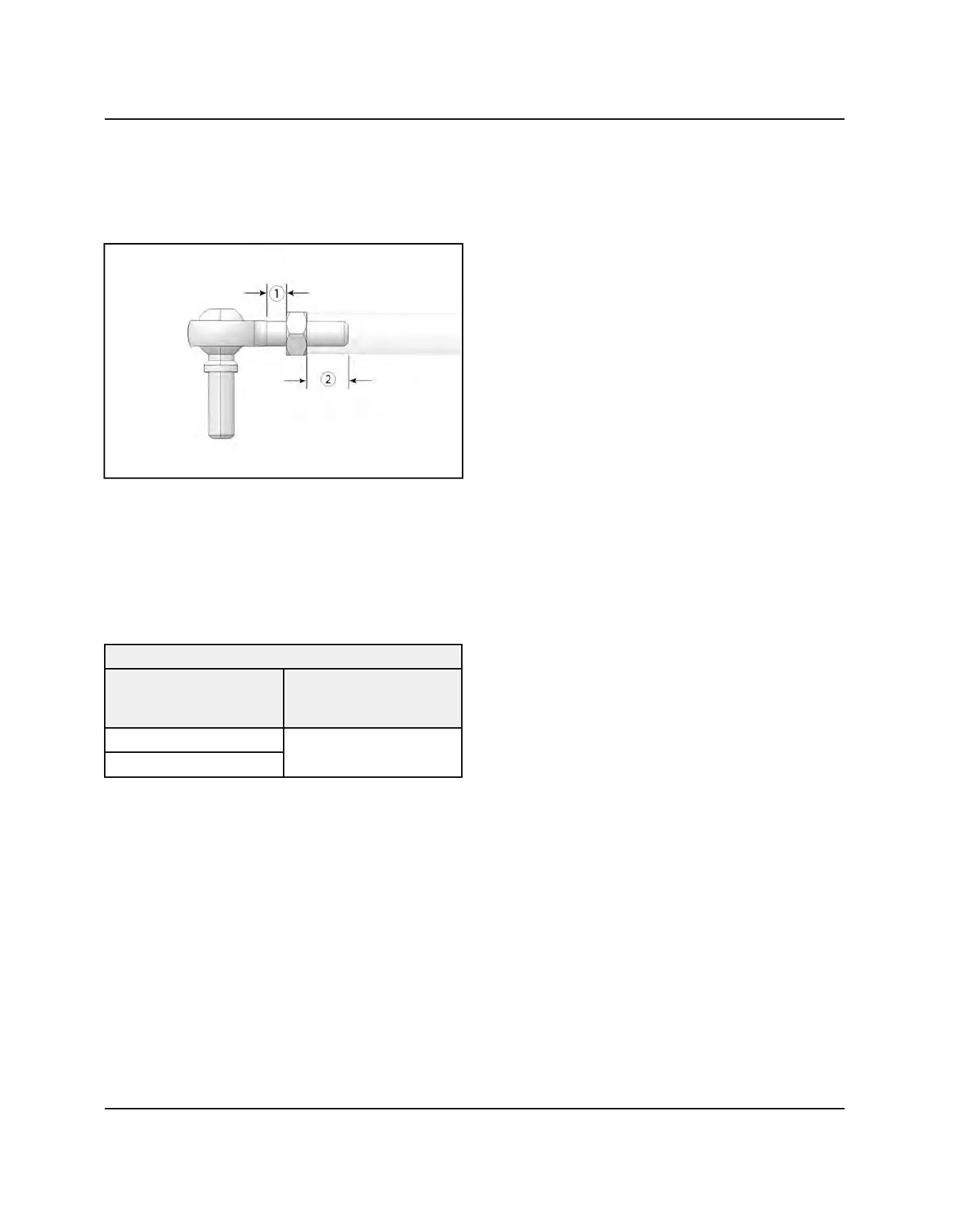

ROD END ENGAGEMENT
Rod ends must engage the rod a minimum of 2x the
thread diameter when adjustment is complete.
Example: 0.4375 in (11 mm) rod end
q
X 2 = minimum
thread engagement
w
0.875 in (22 mm).
TOE SPECIFICATIONS
Toe alignment is measured at ride height. This means
that the machine is on the ground and resting at normal
ride height, not full rebound. Measure at a point 10” (25.4
cm) forward of the ski mount bolt and 10” (25.4 cm)
behind the ski mount bolt, preferably on the center line of
the carbide skags.
FRONT SUSPENSION SETTING SPECIFICATIONS
FRONT SUSPENSION TOE OUT (IN. / MM)
(AT RIDE HEIGHT /
OVERALL)
AXYS React
1/8″ – 1/4″ (3.0 – 6.0 mm)
RMK Assault
